ICC-BRACKET-LR

MetroLinq ™ Long Range Precision Apparatus

ICC-BRACKET-LR Ignitenet ™ Accessory, Metrolinq ™ Bracket, Long-Range Precision

Perfect Accessory for Long-Range Connections

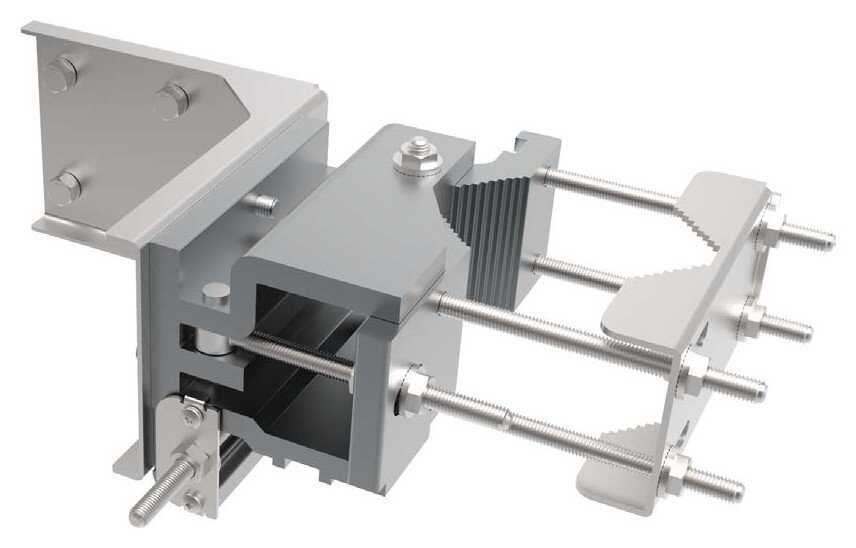

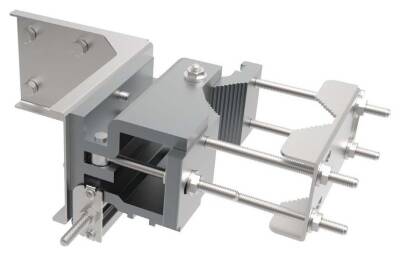

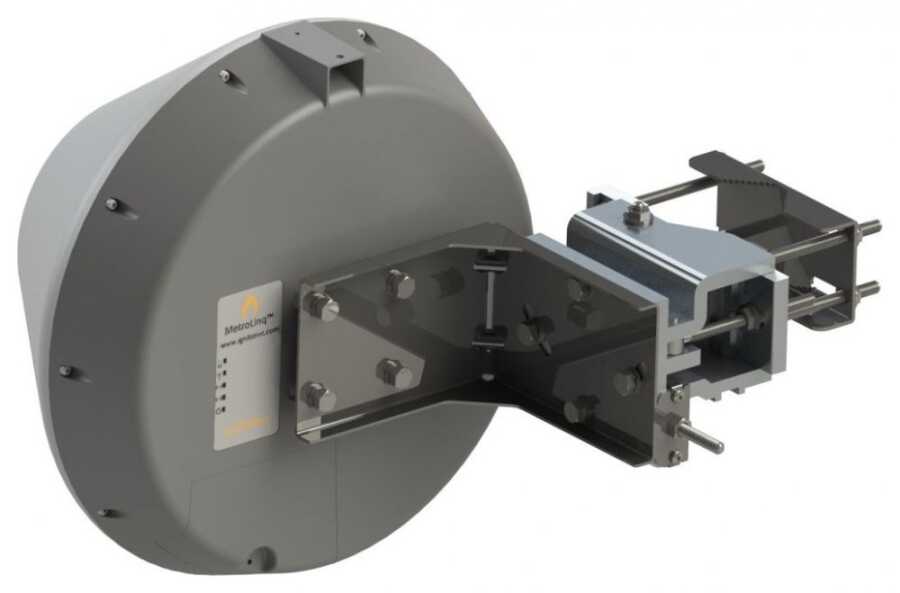

The MetroLinq™ long-range bracket is a precision tool designed to provide maximum accuracy and stability for connections that maximize the distance of MetroLinq™ antennas. Paired with a robust design, the apparatus will allow deployments in the most challenging environments.

Technical Information

› Pole 45mm - 100mm (1.77 - 3.94 inches)
Targeting Range ›Vertical +/- 12 degrees
›Horizontal +/- 15 degrees
Wind Resistance Capability ›125 mph (201 kph)
Dimensions and Weight ›354 x 213 x 128.7 mm / 13.94 x 8.39 x 5.07 inches and 3.4 kg / 7.4 lb
