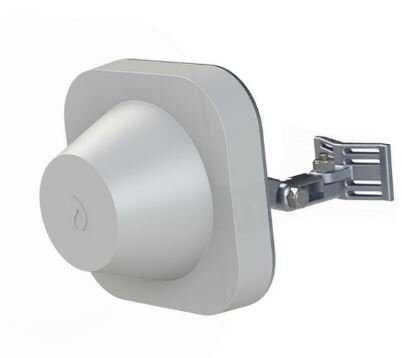

Device type: Long-range Point-to-Point radio link device (PTP)
Frequency line:60 GHz band + 5 GHz backup radiosupport (for failover)
Total capacity: Approximately 2.5 Gbps total transmission capacity (over 60 GHz)
Antenna type/version: This model's "19" version (19 cm antenna body)
Version tag "EU" — model compatible with European version/regulation.
| Case dimensions (19 version) | 190 × 190 × 120 mm (L × W × H) |
| Ağırlık | ~ 1.25 kg (without assembly) |
| Operating temperature | –30 °C to +55 °C |
| Storage temperature | –40 °C to +70 °C |
| Humidity / Operating Humidity Range | 10% to 90% (non-condensing) |
| Safe / Vault | Weather-resistant outdoor housing (IP55 equivalent) |
PoE Input:Power supply is supported with 24-48 V passive PoE.
Power Consumption:Maximum ~ 24 W
Ethernet Port:1 × 2.5 Gbps Ethernet port (PoE IN)
SFP Port:1 × 1 Gbps SFP uplink/optical port
Araz Interface:USB 3.0 port
60 GHz Module:High data speed and low interference (EMI) advantage
5 GHz Backup Radio:Integrated backup radio on the same device (for failover scenarios)
Output Power (TX):
• 60 GHz: 14 dBm @ MCS9
• 5 GHz: 27 dBm (low MCS), 23 dBm (high MCS)
Apple Sensitivity (RX):
• 60 GHz: –74 dBm @ MCS1, –60 dBm @ MCS9
• 5 GHz: –94 dBm @ MCS0, –72 dBm @ MCS15
Such 60 GHz radio systems,in the unlicensed, noise-free bandSpectrum management is easy because it works.
By configuring the 5 GHz band as a backup, connection continuity can be ensured when the 60 GHz link goes offline.
The device can operate in dual operation mode (standalone or cloud managed).
For high-resolution antenna alignment, auxiliary tools such as "Alignment Scope" are recommended.
