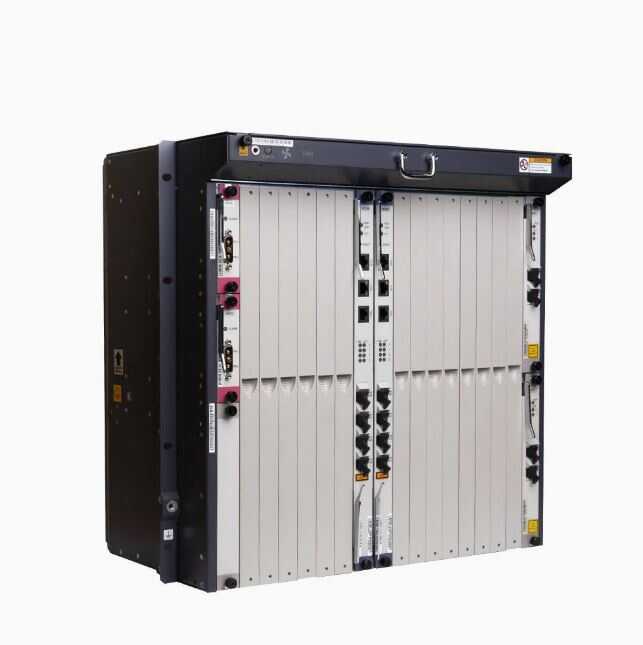

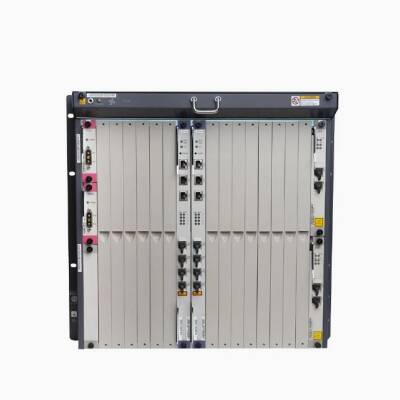

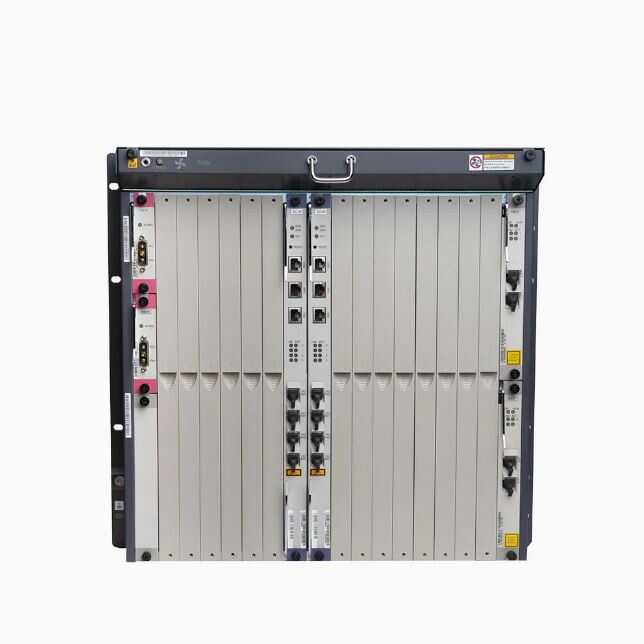

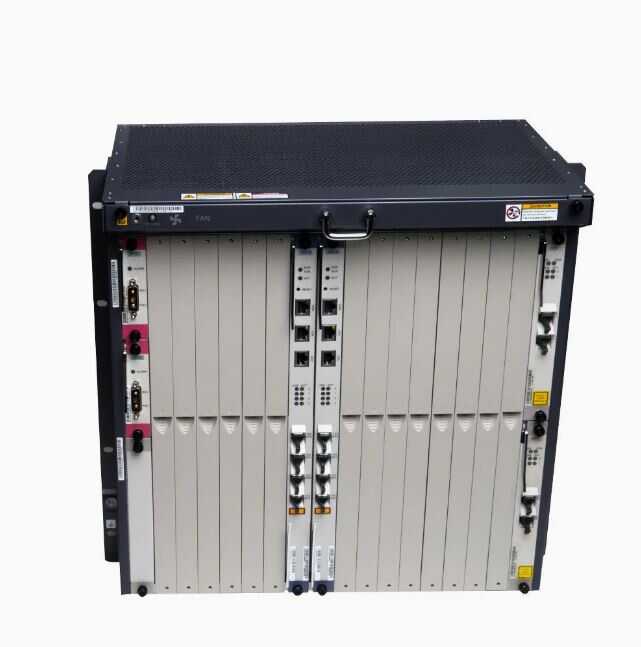

MA5680T, one of Huawei's advanced access network solutions,terminals at the end of the optical line (ONT/ONU) ile fiber service to subscribersIt is the central device that provides. It also incorporates aggregation and routing functions.
📐 Dimensions (W × H × D): ≈ 490 mm × 275.8 mm × 447.2 mm (including mounting bracket)
⚖️ Weight (full configuration): It could be around 30 kg.
🧩 Subrack Structure / Slot Count16 service card slots
🔗 Management / control card quantity2 control cards (SCUN type)
⚡ Power Cards / Power SupplyDC power modules / dual redundant power support
| 🏷️ Feature | 📊 Value / Description |
|---|---|
| 🌀 Backplane / Backbone capacity | Up to 3.2 Tbps |
| 🔀 Control card switching capacity | 480 Gbps (active / backup mode) / 960 Gbps (load sharing) |
| 📥 L2 packet forwarding rate | ~ 726 Mpps (active / standby) / ~ 1452 Mpps (load sharing) |
| 🎯 MAC address-based capacity | It can support addresses at the 512‑thousand level. |
🧶 PON technologies: Supports GPON, 10G GPON, EPON, 10G EPON, and P2P
🔀 Ease of transition (evolution path)Seamless transition support between different PON types
🧱 Aggregation & routing supportsStatic routing, RIP, OSPF, MPLS support
🛠️ Service cards: High-density connection with 16-port GPON service cards (e.g., GPFD type)
🌱 Split ratioDepending on the incoming versions, high division (for example 1:128) may be supported.
📶 Access capacityIt can host thousands of subscribers depending on the configuration.
🏠 FTTH / FTTB / FTTCfiber cabling and subscription services in their systems
🏢 Business customers / campus structuresfor high bandwidth access
📶 Connection to mobile core networks / backhaul uygulamaları
🔄 Wholesale / ISP transit point / multi-operator support
