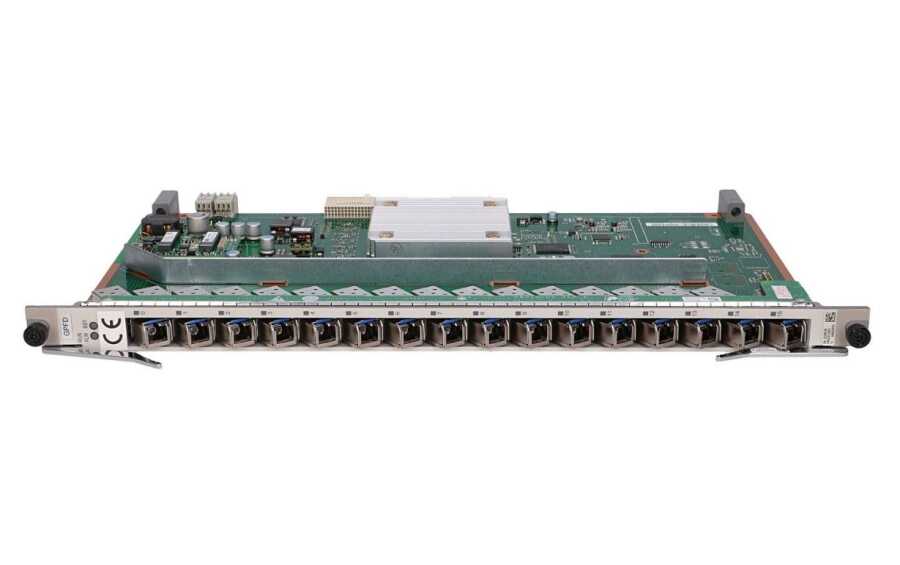

Designed for Huawei's OLT systems,GPON (Gigabit Passive Optical Network)It is an interface card. It provides fiber access to subscribers with 16 GPON ports.
🧱 Card TypeGPON service board (Service Board)
📦 Number of Ports16 × GPON
🔄 Suitable Systems: Huawei MA5608T, MA5680T, MA5683T OLT systems are compatible.
📊 Split RatioDivision support up to 1:128 (with C++ modules)
🛠 Standards ComplianceITU-T G.984.1 / G.984.2 / G.984.3 / G.984.4
| 📐 Parameter | 💡 Value / Description |
|---|---|
| 🌈 Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| 🚀 Data Rate | 2,488 Gbps (Tx) / 1,244 Gbps (Rx) |
| 💡 Output Power Range (C++) | 6 dBm … 10 dBm |
| 🎯 Buyer Sensitivity | ≤ –35 dBm |
| 🧩 Maximum Distance | ~ 20 km (with single-mode fiber) |
| ➕ Excessive Optical Power Tolerance | ~ –15 dBm (for the C++ module) |
🔋 Power ConsumptionAverage: 26 W, Maximum: 50 W
❄️ Operating Temperature–40 °C … +65 °C
📦 Boyutlar22.86 mm × 237.00 mm × 395.40 mm (W × D × H)
By offering multiple subscription support,on dense GPON linesIt is used efficiently.
With C++ modules, the possibility of connection over longer distances with powerful optical output.
High-performance fiber infrastructures are ideal for FTTH / FTTx projects.
Module replacement in Huawei OLT systems is easy.
