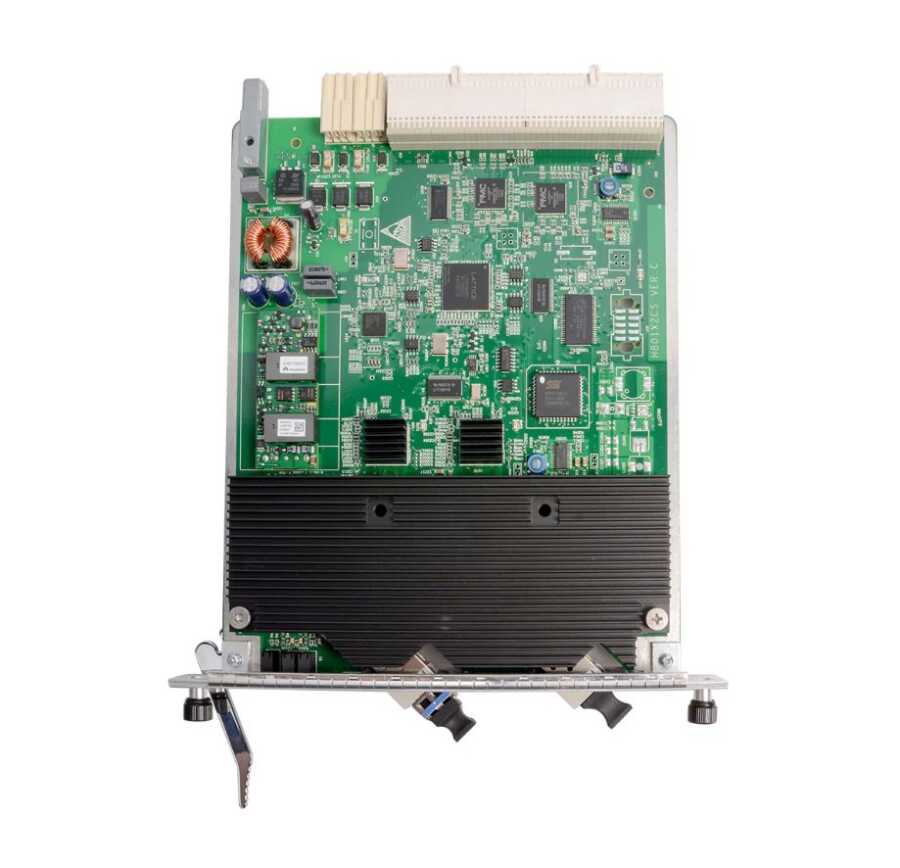

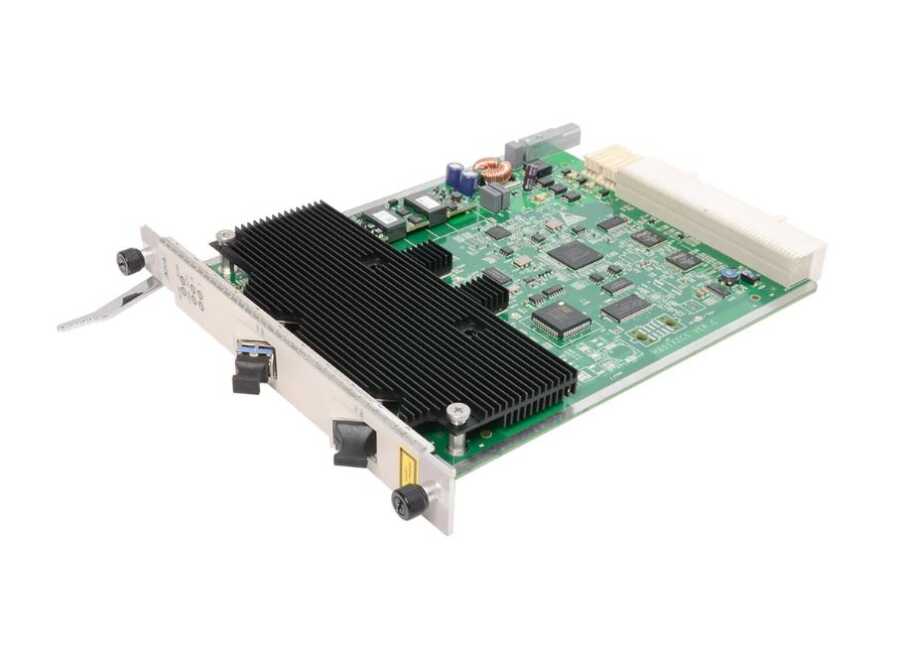

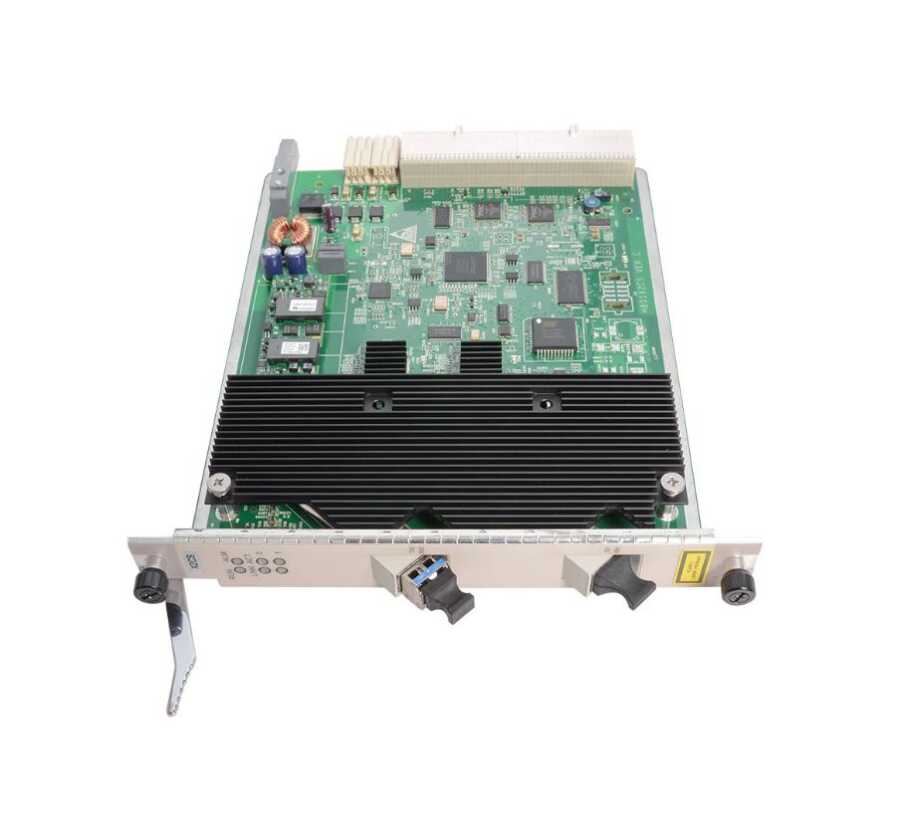

Huawei H801X2CSIt is an uplink card compatible with Huawei's MA5600T and MA5680T OLT series, offering 2 10GE SFP+ optical ports. This card is designed to meet high-speed data transmission and broadband bandwidth requirements.
Number of Ports: 2 × 10GE SFP+ optical port
Maximum Data Rate10.3125 Gbps per port
Supported Fiber TypeSingle-mode; multi-mode supported.
Supported SFP+ ModulesIt is compatible with various modules such as 1310 nm, 1550 nm, CWDM/DWDM, LR, ER, SR.
Maximum DistanceDepending on the SFP+ module used, up to 80 km.
Jumbo Frame Support: 2052 bytes (standard), 9216 bytes (jumbo frame)
Power ConsumptionStatic: 17.6 W, Maximum: 18 W
Operating TemperatureBetween -25°C and +65°C
Boyutlar25.40 mm x 237.00 mm x 197.20 mm
Uyumluluk: Fully compatible with the MA5600T and MA5680T OLT series.
Hot-SwappableYes, it can be plugged in and removed online.
FTTH/FTTB NetworksHigh-speed uplink connections for broadband internet services
IPTV and Triple Play ServicesHigh bandwidth for video, audio, and data transmission.
Corporate and Carrier NetworksReliable and low-latency uplink connections
Smart City and Surveillance SystemsHigh bandwidth required video and data transmission
High Performance: 10.3125 Gbps speed support per port
EsneklikCompatibility with various SFP+ modules for different distances and applications.
GüvenilirlikHuawei's global-scale experience and reliability
Easy MaintenanceThe hot-swappable design allows for online maintenance capability.
SFP+ Module CompatibilityEnsure that the SFP+ modules to be used are compatible with the card and network infrastructure.
Fiber Type and DistanceThe type of fiber to be used (single-mode or multi-mode) and the distance affect the selection of the SFP+ module.
Power ConsumptionSince the card's maximum power consumption is 18 W, the power supply must have sufficient capacity.
