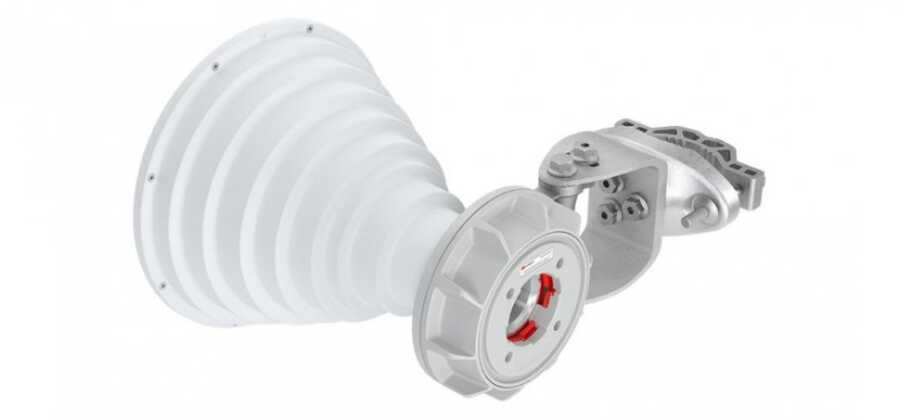

RF Elements HG3-TP-S30It is a horn antenna operating in the 5 GHz band, with a 30° symmetric beam angle. This antenna is designed to provide superior performance in high-density access point clusters and noisy environments.
Frequency Range: 5180 – 6400 MHz
Kazanç: 18.4 dBi
Beam Width (-3 dB): Horizontal: 21°, Vertical: 21°
Beam Width (-6 dB): Horizontal: 30°, Vertical: 30°
Front-Back Ratio: 37 dB
Polarizasyon: Bilinear (H + V)
Empedans: 50 Ohm
VSWR (Max.)1.8
Connection Type: TwistPort™ - Quick Lock Waveguide Port
Antenna TypeHorn
Malzeme: UV-resistant ABS plastic, polycarbonate, polypropylene, aluminum, stainless steel
Protection ClassIP55
Operating Temperature: -30°C to +55°C
Wind Resistance: 160 km/h
Wind Load: 44 N @ 160 km/h
Mechanical Incline: ±25°
Ağırlık: 1.9 kg (single unit), 3.3 kg (packaged)
Dimensions (Packaged): 412 × 277 × 234 mm
Mounting Pole Diameter: 30 – 80 mm
Symmetric Beam Structure: It provides homogeneous coverage by ensuring equal beam width in horizontal and vertical planes.
Absence of Side Lobes: It provides lower levels of interference and noise compared to traditional sector antennas.
Broadband Performance: It provides constant gain and beam structure across the frequency range.
Durable Design: It is manufactured with materials resistant to harsh outdoor conditions.
Easy Installation: It comes pre-assembled and can be set up with a single tool.
High-Density Access Points: It provides ideal performance in areas where multiple access points are closely positioned.
Noisy Environments: It minimizes interference levels due to the absence of side lobes.
WISP Distributions: It is suitable for wireless internet service providers that require consistent performance across a wide frequency range.
