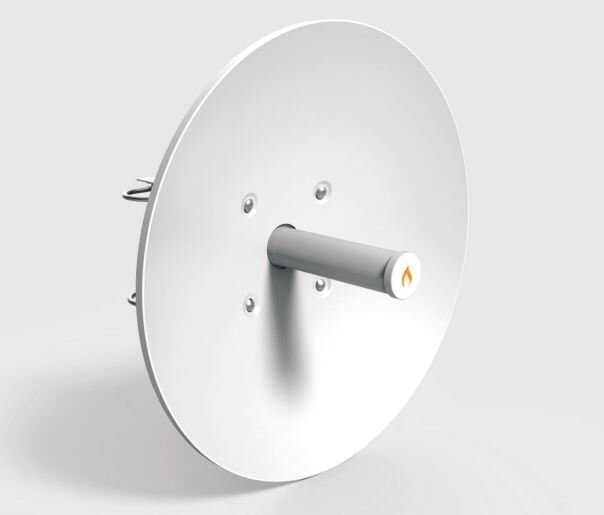

Fusion™ Dish FD5-30RIt is a high-performance sectoral parabolic antenna operating in the 5 GHz frequency band. It is specifically designed for long-distance, directional connections in wireless networks. It is widely used in fiber optic radio links, PTP (Point-to-Point), and PTMP (Point-to-Multipoint) applications.

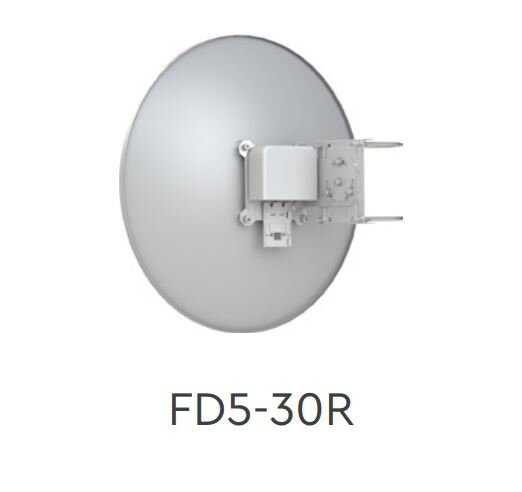

Model: FD5-30R
Frequency Band:5 GHz (within the range of 4.9 GHz - 6.0 GHz)
Kazanç:30 dBi
Half Power Beamwidth (Beamwidth):Approximately 5°
Polarizasyon:Dual polarization
VSWR:≤ 1.5
Empedans:50 Ohm
Connection Type:TwistPort or N-female connector (depending on model variation)
Malzeme:Aluminum alloy, weather-resistant coating
Çap:Approximately 0.5 meters (50 cm)
Ağırlık:2-3 kg (depending on model variation)
Montaj:Compatible with pole or wall mounting accessories.
Dayanıklılık:High wind resistance, protected against corrosion.
Operating Temperature:-40°C to +70°C
Nem:5% - 95% (non-condensing)
Weather Resistance:Dust and water resistant (IP65 or higher)
Long distance PTP and PTMP wireless connections
The need for high-gain antennas in Wi-Fi and other 5 GHz-based networks.
Telecommunications and data transmission infrastructures
Urban and rural area wireless network installations
Increase in signal quality with high gain
Reduction of interferences with narrow-lobe structure
Sturdy and lightweight structure, easy assembly
Flexible use with wide frequency support
