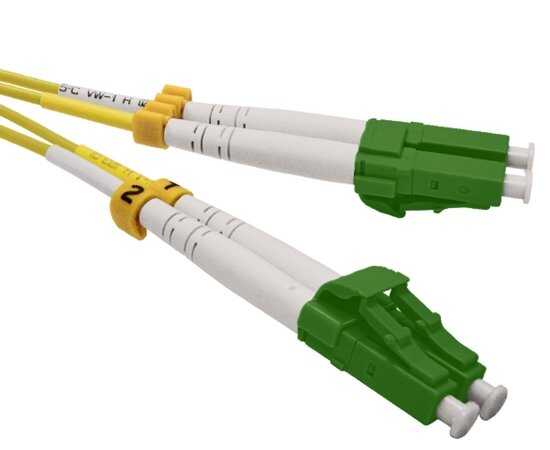

EXTRALINK PATCHCORD SM LC/APC-LC/APC DUP 9/125 3.0MM 1.5M

📡 General Technical Specifications

• Type / Usage:Patchcord / Fiber patch cable (for data transmission line connection)

• Konnektörlar:LC/APC at both ends (Angled Physical Contact)

• Mod:Duplex (two fiber cores; one for sending, one for receiving)

• Fiber Structure:Single-Mode (SM)

• Core / Coating Size:9/125 µm

• Outer Cable Diameter:3.0 mm

• Uzunluk:1.5 meters

📊 Performance / Optical Properties

• Single-Mode Optical Performance:Low attenuation over long distances with SM usage

• Wavelength Operating Range:Typically 1310 nm and 1550 nm (in some cases 1625 nm)

• Attenuation (Weakening):

  • Typical cable attenuation: ≦ 0.4 dB/km (1310 nm)

  • Additional loss per connector: ≦ 0.3 dB (LC/APC each end)

• Reflection (Return Loss):≦ –60 dB (good level for LC/APC connectors)

🛠 Mechanical & Durability Features

• Minimum Bend Radius:

  • Static: ≧ 30 mm

  • Dynamic (during shooting): ≧ 50 mm

• Tensile Strength:Generally ≥ 100 N (depending on model and manufacturer tolerance)

• Operating Temperature:Approximately –20 °C to +70 °C (depending on manufacturer tolerance)

• Storage Temperature:–40 °C to +85 °C

• Connector Durability (Insertion/Removal Cycles):≧ 500 cycles

• Coating / Jacket Material:PVC, LSZH, OFNR / OFNP
