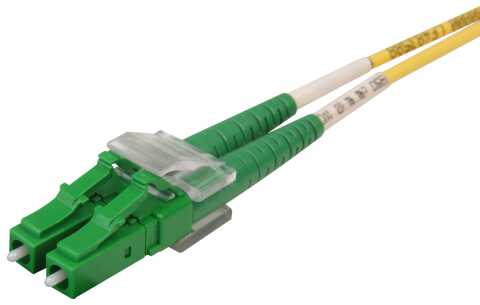

Connector Type:LC/APC ↔ LC/APC (LC/APC connectors on both ends)
Mod:Duplex (two fiber cores for bidirectional data transmission)
Fiber Type:Single Mode (G.657.A compliant)
Fiber Diameter:9/125 µm (core/cladding)
Cable Diameter:3.0 mm
Uzunluk:3.0 metre
Cable Material:Options available in PVC or LSZH (Low Smoke Zero Halogen).
Renk:Usually yellow (standard color code)
| Özellik | Değer |
|---|---|
| Fiber Standard | G.657.A |
| Attenuation (1310 nm) | ≤ 0.4 dB/km |
| Attenuation (1550 nm) | ≤ 0.3 dB/km |
| Connector Loss | ≤ 0.3 dB (typical) |
| Reflection (Return Loss) | ≥ 60 dB (for APC connectors) |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Minimum Bend Radius | 30 mm (static), 50 mm (dynamic) |
FTTH (Fiber to the Home) bağlantıları
LAN/WANnetwork connections
Data centersand server rooms
WDM (Wavelength Division Multiplexing) sistemleri
Test and measurementcompatible with devices
