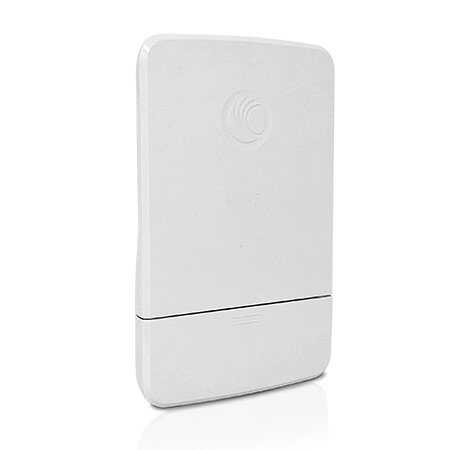

ePMP 5GHz Force 300-13 SM

📡 General Description

ePMP Force 300-13, From Cambium's ePMP 3000 seriesIt is an affordable and compact 5 GHz subscriber unit.It is ideal for short and medium-range connections with an integrated 13 dBi antenna.256 QAM modulation, GPS synchronized AP support ve advanced QoS featuresand delivers high performance for WISPs.

⚙️ Technical Specifications

• Model:ePMP Force 300-13 SM

• Frequency Range:4910 – 5970 MHz(depending on the arrangement)

• Channel Width:20 / 40 / 80 MHz

• Maximum Physical Layer Capacity:

  • ~600 Mbps (with 80 MHz channel)

• Modülasyon:QPSK – 256 QAM

• MIMO:2x2 MIMO

• TDD Sync:ePMP 3000 AP with GPS synchronization support

• Protokoller:

  • Cambium TDD

  • ePTP (low latency private mode)

📶 Antenna Features

• Antenna Type:Integrated panel antenna

• Antenna Gain:13 dBi

• Beamwidth:

  • Horizontal: 45°

  • Vertical: 45°

• Polarizasyon:Dual slant (±45°)

🔌 Connection & Power

• Ethernet:1 × 10/100/1000 Mbps RJ45

• PoE Power Support:24 V Cambium passive PoE

• Power Consumption:Max. 10 W

• PoE Adapter:Included in the box

🧱 Physical Properties

• Boyutlar:26.7 x 9.4 x 9.4 cm

• Ağırlık:~0.5 kg

• Montaj:

  • Direct mounting apparatus is included.

  • Azimuth and tilt settings can be adjusted.

• Koruma:IP55 (suitable for outdoor use)

• Operating Temperature:-30°C to +60°C

✅ Areas of Use

• WISP PtMP deployments

• Short and medium range customer connections

• CCTV and IoT device connections

• Fiber alternative access points

📦 Box Contents

• 1 × ePMP Force 300-13 SM

• 1 × Pole mounting kit

• 1 × PoE adapter and power cable

• Installation guide

📌 Additional Features

• QoS Support:Priority reserved for voice, video, data

• AES 128 Encryption:For secure connections

• Remote Management:Web GUI, SNMP, cnMaestro cloud management support

• LED Level Indicators:Field setup is made easier.
