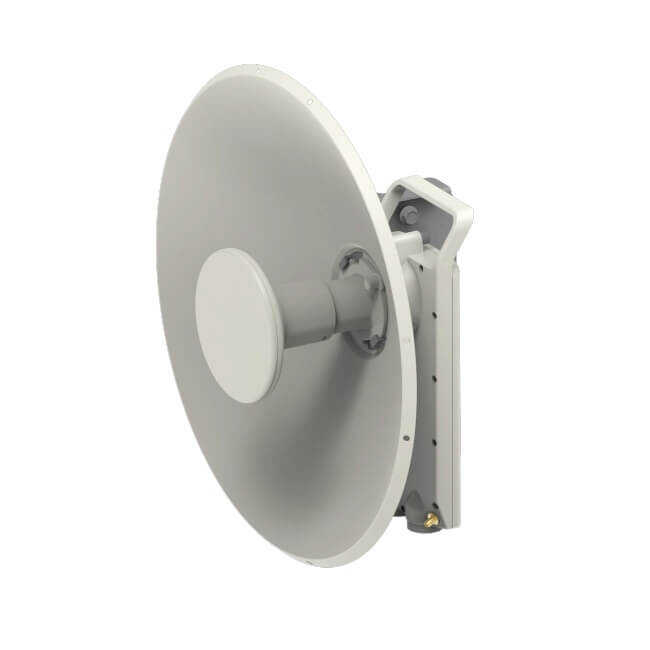

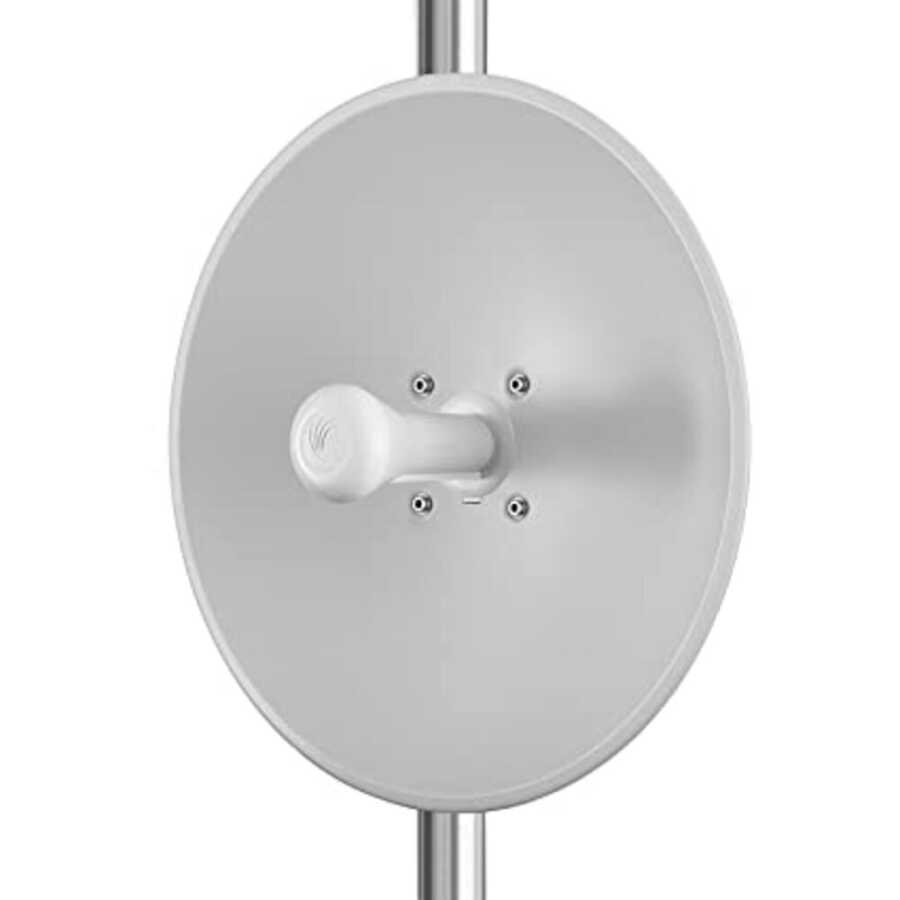

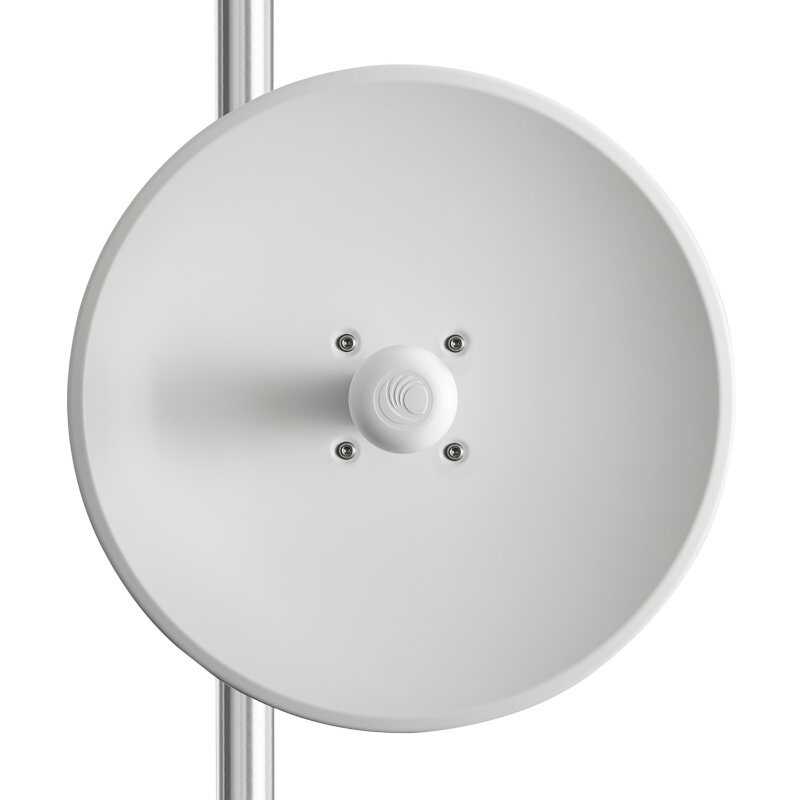

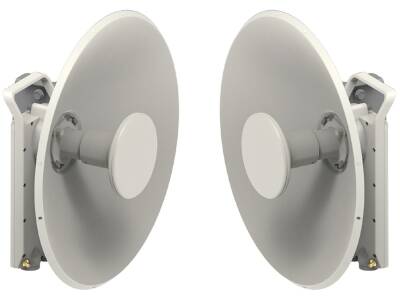

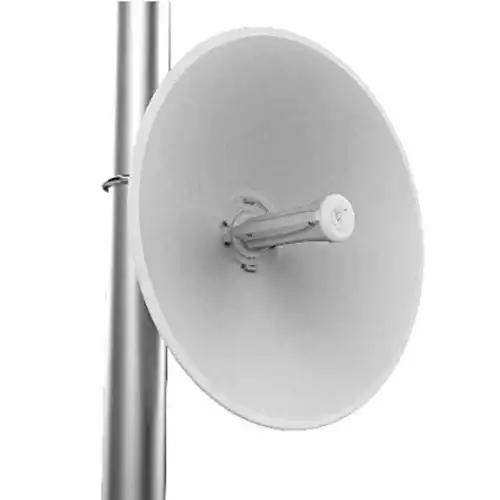

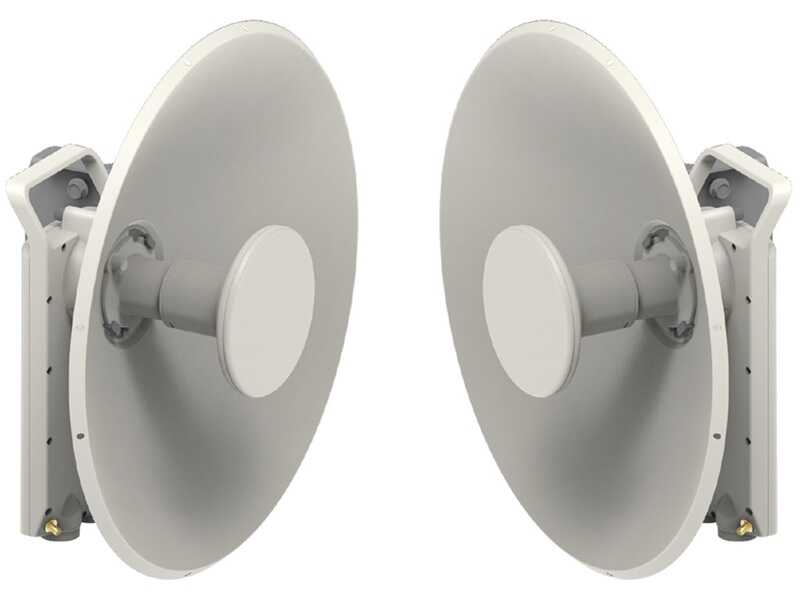

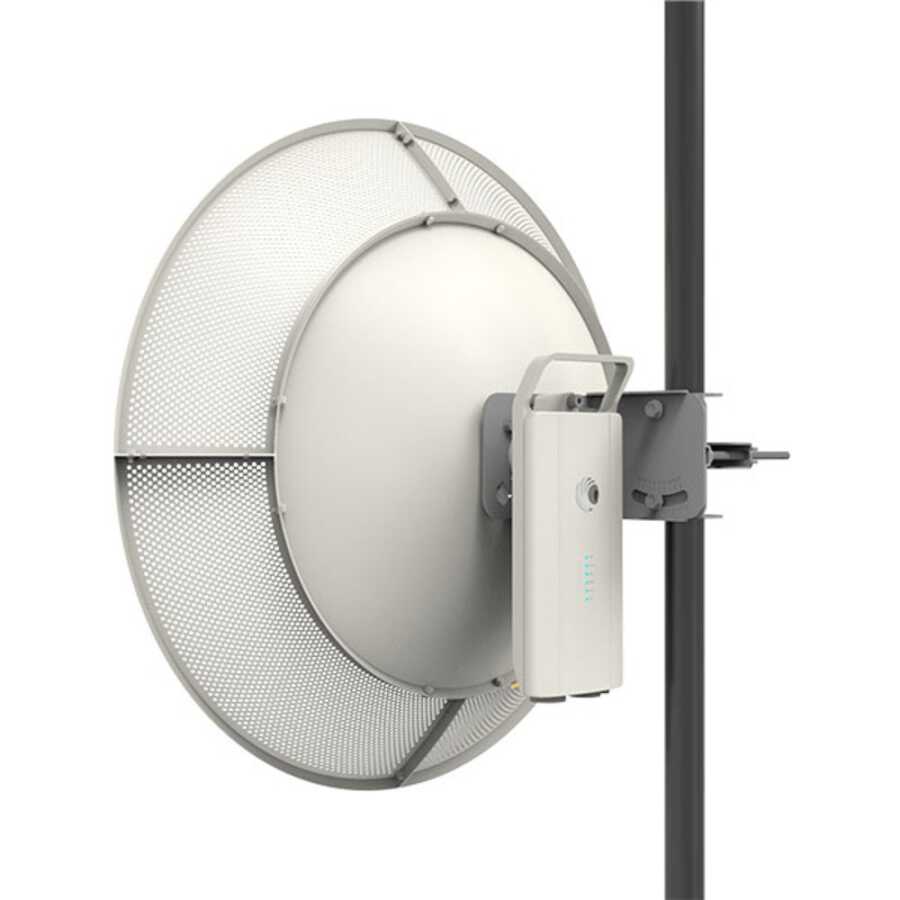

ePMP Force 425 Subscriber Module (SM)This is Cambium Networks' high-performance and durable subscriber device operating in the 5 GHz band. This product package2 units of Force 425 SMIt contains and is optimized for the European (EU) market. It is designed for high data speeds and robust connectivity.
Model:ePMP Force 425 SM
Paket:2 pieces of SM (2-pack)
Frequency Range:5150 – 5850 MHz (EU compliant)
Channel Width:20 / 40 / 80 MHz
Maximum PHY Rate:700+ Mbps
MIMO:2x2 MIMO
Modülasyon:BPSK - 256 QAM
TDD Synchronization:GPS-assisted Cambium Time Sync
Antenna Gain:
Force 425 SM: 20 dBi integrated parabolic antenna
Coverage Angle:Approximately 10° × 10° (both horizontal and vertical)
Polarizasyon:Dual Slant (±45°)
Ethernet Port:1 × Gigabit Ethernet (10/100/1000 Mbps) RJ45
PoE Input:Passive PoE, 24 – 56 V DC (typical 30 V)
Power Consumption:Approximately 7 W
Boyutlar:18 × 18 × 7 cm (for a single unit)
Ağırlık:Approximately 700 grams (single unit)
Protection Class:IP55, suitable for outdoor use.
Operating Temperature:-30°C to +60°C
Montaj:Accessories for pole or wall mounting
Yönetim:
Web GUI
CLI (SSH)
cnMaestro cloud and local management support
Güvenlik:WPA2 AES, Radius, HTTPS, SSH
QoS:Advanced QoS support with voice, video, and data prioritization.
Modlar:Bridge, NAT/Router supported
2 × ePMP Force 425 SM device
Assembly kits
2 × Passive PoE adapter
User manual
Long distance fixed wireless access
Ideal for service provider subscribers
Applications requiring high bandwidth
ePMP 3000 series Access Point compatible PtMP networks
High performance and durability
Easy installation and management
Advanced security features
Custom compatibility for the European market
