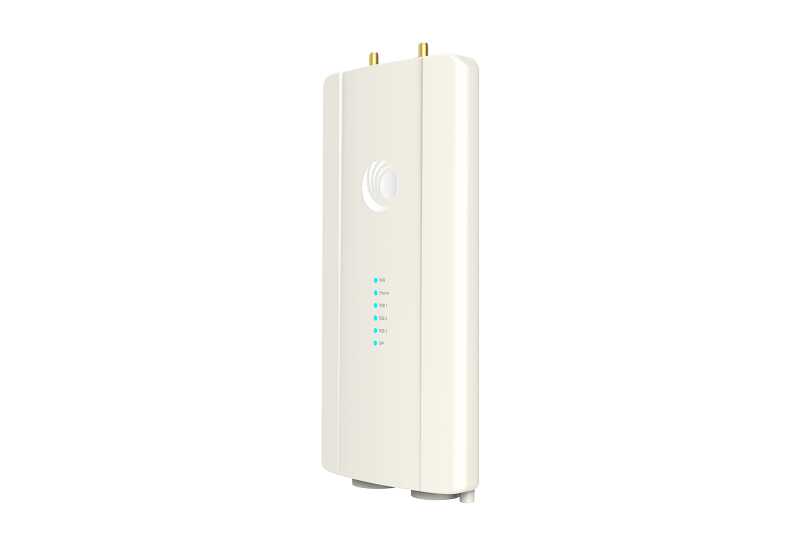

ePMP 5 GHz Force 400C (ROW) C050940C221A

📡 General Description

ePMP Force 400C, Cambium’sthe latest generation high capacity Point to Point (PtP) ve Point to Multipoint (PtMP)developed for its solutionsIt is a high-performance connectorized radio unit.It is designed to be used with external antennas and802.11ax (Wi-Fi 6) based 2x2 MU-MIMOthanks to its technologythroughput at gigabit level sağlar.

⚙️ Technical Specifications

• Model:ePMP Force 400C (ROW)

• Frequency Range:4910 – 6135 MHz(ROW – according to regional regulations)

• Channel Width:20 / 40 / 80 / 160 MHz

• Maximum PHY Capacity:

  • Up to 1.5 Gbps (with a 160 MHz channel)

• Modülasyon:BPSK – 1024 QAM

• MIMO Support:2x2 MU-MIMO

• TDD Sync:Cambium GPS synchronization support

• Protokoller:

  • Cambium ePTP

  • TDD

  • 802.3 standard (Wi-Fi 6 based)

🔌 Connection & Power

• Ethernet Port:

  • 1 × 2.5 Gbps Ethernet (RJ45)

• Power Input:

  • 802.3at PoE (active) or Cambium PoE

  • Power Consumption: Maximum ~16 W

• PoE Adapter:Not included in the box(also available for purchase)

📶 Antenna Connection

• Connector Type:2 × RP-SMA

• Antenna Type:Compatible with external antennas.

• Uyumluluk:

  • Cambium 25 dBi & 30 dBi dish antennas

  • 3. The party can be used with high-gain antennas (parabolic, grid, etc.)

🧱 Physical Properties

• Boyutlar:Approximately 17 x 13 x 5 cm

• Ağırlık:~500 grams

• Montaj:

  • Direct mounting kit included

  • Twistport adapter compatible (for use with RF Elements antennas)

• Protection Class: IP67

• Operating Temperature:-40°C to +60°C

• Wind Resistance:Up to 200 km/h

🧠 Software & Management

• Management Interface:Web GUI, CLI, cnMaestro (cloud and on-premises support)

• QoS:Advanced classification for voice, data, and video traffic.

• Güvenlik:

  • AES 128-bit encryption

  • Radius support

  • SSH/HTTPS access

📦 Box Contents

• 1 × Force 400C Radio Unit

• 1 × Assembly kit

• A PoE adapter is typicallysold separately

🌍 Areas of Use

• High-capacity PtP connections (backhaul)

• WISP PtMP subscriber module (SM)as high-traffic demanding customers

• Rural fiber alternative access points

• CCTV, IoT, VoIP, and corporate network connections
