CubeG-5ac60aypair

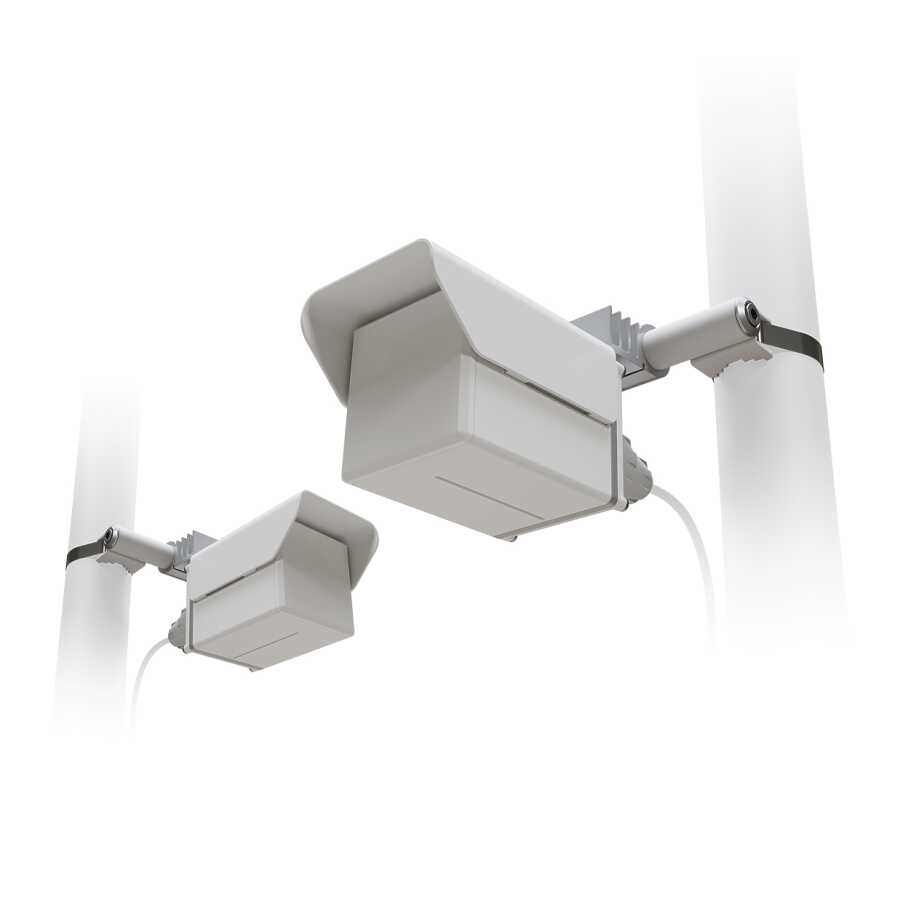

MikroTik CubeG-5ac60aypair(Wireless Wire Cube Pro) is a solution designed for high-speed point-to-point (PtP) wireless connections, operating in the 60 GHz frequency band and supporting the 802.11ay standard. This kit consists of two pre-configured devices and provides data transmission at fiber-like speeds. Additionally, it features a 5 GHz backup connection that automatically activates to ensure the continuity of the connection in adverse weather conditions. .

📦 Box Contents

• 2 x CubeG-5ac60ay device (pre-configured)

• 2 x 24V 0.8A power adapter

• 2 x Gigabit PoE injector

• 2 x Mounting apparatus

• 2 x Hose clamp

⚙️ Technical Specifications

• Product Code: CubeG-5ac60aypair

• Mimari: ARM 32-bit

• İşlemci: Qualcomm IPQ-4019, 4 cores, 448–896 MHz (automatically adjustable)

• RAM: 256 MB

• Depolama: 64 MB Flash

• Operating System: RouterOS (License Level 4)

• Boyutlar: 115 x 95 x 82 mm

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 200,000 hours @25°C

• IP Protection Class: IP54

• Sertifikalar: CE, FCC, IC, EAC, ROHS

🔌 Power and Connection

• Ethernet Port: 1 x 10/100/1000 Mbps (Gigabit Ethernet)

• Power Input: 802.3af/at supported PoE (18–48 V)

• Maximum Power Consumption:10 W

• Soğutma: Pasif

📡 Wireless Features

• 60 GHz Connection:

  • Standartlar: 802.11ad / 802.11ay

  • Antenna Gain: 11° beamwidth

  • Maximum EIRP: 40 dBm

  • WiGig Chipset: QCA6438

  • WiGig Antenna Module: SWL-QD465 GHz Backup Connection:

  • Standartlar: 802.11a/n/ac (Wi-Fi 5)

  • Maximum Data Rate: 433 Mbps

  • Antenna Gain: 11.5 dBi

  • Antenna Beamwidth: 35°

  • MIMO: 1x1

  • Şifreleme: AES

🎯 Usage Scenarios

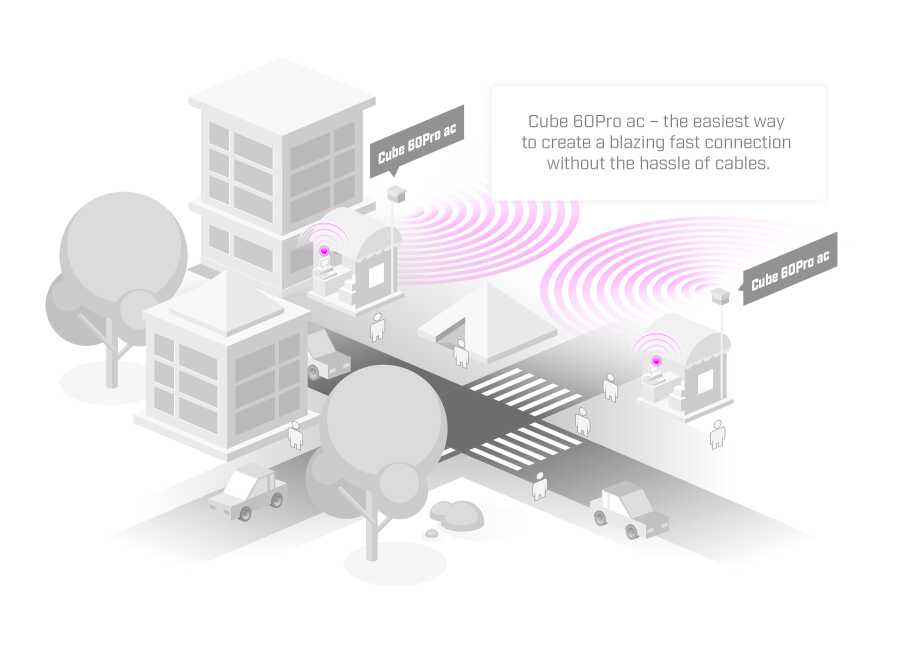

• City Connections: It provides interference-free connection even in dense RF environments thanks to the 60 GHz band.

• Rural Areas: It provides high-speed connection opportunities in areas without fiber infrastructure.

• Temporary Installations: It provides fast and reliable connection in temporary areas such as events or construction sites.
