CubeG-5ac60ay

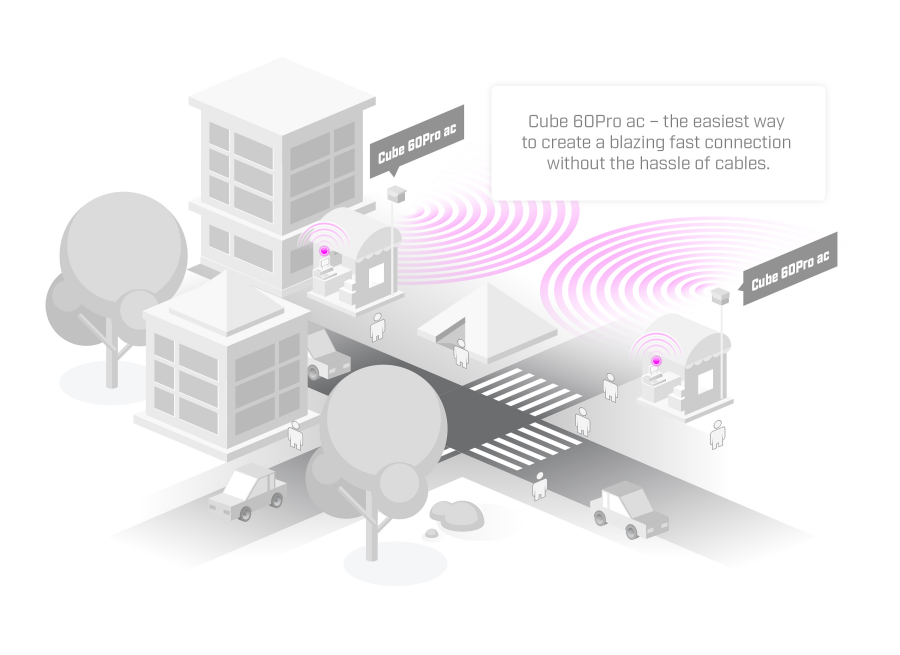

​MikroTik CubeG-5ac60ay, also known asCube 60Pro ac, a designed for high-speed and reliable wireless connections60 GHz 802.11ayIt is a supported CPE (Customer Premises Equipment) device. This device is ideal for short and medium distance connections that require fiber-like speeds.​

🔧 Technical Specifications

• Product Code: CubeG-5ac60ay

• İşlemci: Qualcomm IPQ-4019, 4 cores, 448–896 MHz (auto-adjusted)

• RAM: 256 MB

• Depolama: 64 MB Flash

• Boyutlar: 115 x 95 x 82 mm

• RouterOS License: Level 4

• Operating Temperature: -40°C to +70°C

• MTBF: Approximately 200,000 hours (at 25°C)​

📡 Wireless Features

• 60 GHz Connection:

  • Standartlar: 802.11ad / 802.11ay

  • WiGig Chipset: QCA6438

  • Antenna Module: SWL-QD46

  • Antenna Beam Width11°

  • Maximum EIRP: 40 dBm

  • Maximum Distance: 1 km (standard), up to 2.4 km (with Channel 5 support)​

• 5 GHz Backup Link:

  • Standartlar: 802.11a/n/ac (Wi-Fi 5)

  • Maximum Data Rate: 433 Mbit/s

  • Antenna Gain: 11.5 dBi

  • Beam Width35°

  • Chain Count1

🔌 Power and Connection

• Ethernet Port: 1 x 10/100/1000 Mbps

• PoE Input: 802.3af/at compliant

• Input Voltage: 18–48 V

• Maximum Power Consumption10 W

• Soğutma: Pasif​

📦 Box Contents

• CubeG-5ac60ay device

• 24 V 0.8 A power adapter

• PoE injector

• Mounting clamp​
