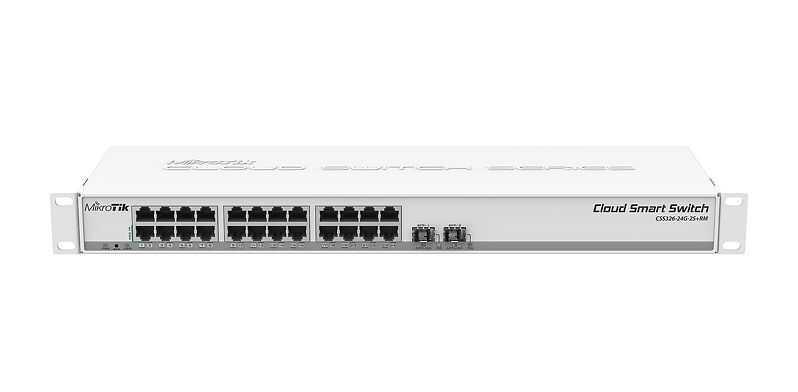

MikroTik CSS326-24G-2S+RM, The model is a 1U rack-type smart switch equipped with 24 Gigabit Ethernet ports and 2 10G SFP+ slots. This device, operating with the SwOS operating system, provides an economical and efficient manageable switch solution for small and medium-sized networks.
Product Code: CSS326-24G-2S+RM
Switch Chip: Marvell 98DX3216A1
Operating System: SwOS (web-based management interface)
Boyutlar: 443 x 144 x 44 mm
Ağırlık: Approximately 2 kg
Operating Temperature: Between -40°C and +70°C
Depolama: 2 MB Flash
MTBF: Approximately 200,000 hours @ 25°C
Soğutma: Passive (fanless)
Ethernet Ports: 24 x 10/100/1000 Mbps
SFP+ Slots: 2 x 1.25G/10G supported
SFP Compatibility: Supports 1.25 Gb SFP and 10 Gb SFP+ modules.
Serial Port: RJ45 console port
Switching Capacity: Non-blocking Layer 2 capacity
Host Table: 16K input
VLAN Support: IEEE 802.1Q, up to 4K VLANs
Port Isolation and Security: Port isolation, port security
Traffic Management: Bandwidth limitation, broadcast storm control
Network Monitoring: Port reflection (ingress/egress), ACL, SNMP v1
Protocol Support: Rapid Spanning Tree Protocol (RSTP), MikroTik Neighbor Discovery
Power Input: 2 units (DC jack and Passive PoE)
Input Voltage: 10–30 V DC
Maximum Power Consumption:19 W
Montaj: Suitable for 1U rack mounting; mounting ears are included in the box.
CSS326-24G-2S+RM device
24V 1.2A power adapter
Rack mounting ears
Economic Manageability:The SwOS operating system provides basic management functions at a low cost.
High Connection Flexibility:It provides extensive connectivity options with 24 Gigabit Ethernet ports and 2 SFP+ slots.
Advanced Network Features:It facilitates network management with features such as VLAN, port security, and bandwidth control.
Silent and Durable Design:It operates quietly with a fanless passive cooling system and delivers reliable performance in temperatures ranging from -40°C to +70°C.
