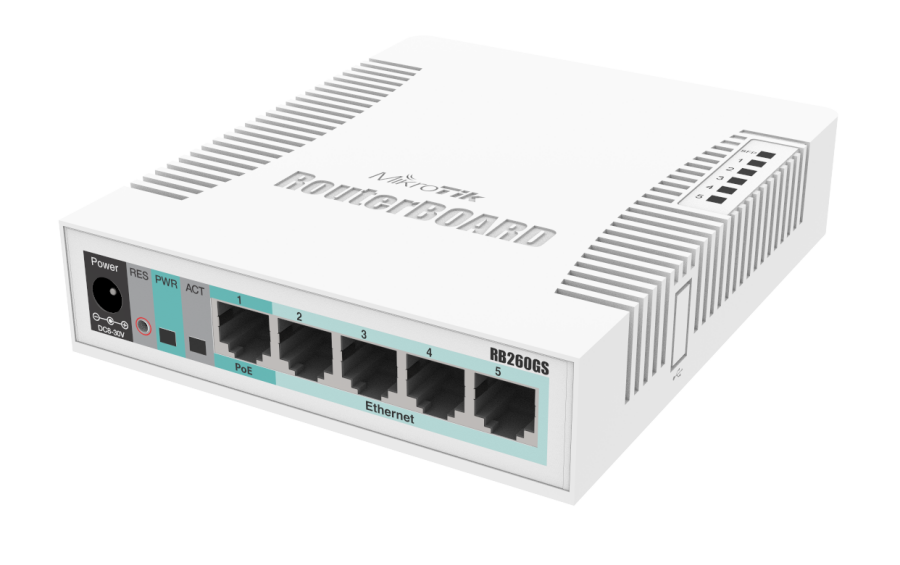

CSS106-5G-1S - RB260GS

MikroTik RB260GS(product code:CSS106-5G-1S), it is a compact and manageable smart switch designed for small office and home office (SOHO) environments. This device is equipped with five Gigabit Ethernet ports and one SFP slot, specially developed by MikroTik.SwOSIt works with the operating system.

🔧 Technical Specifications

• Product Code: CSS106-5G-1S

• İşlemci: Taifatech TF470

• Bellek: 96 KB SRAM

• Depolama: 128 KB Flash

• Switch Chip: Atheros QCA8337

• Boyutlar: 113 x 139 x 28 mm

• Ağırlık: Approximately 212 g (unpackaged)

• Operating Temperature: Between -20°C and +70°C

• MTBF (Mean Time Between Failures): Approximately 100,000 hours @ 25°C

⚡ Power and Energy Consumption

• Input Voltage: 11–30 V DC (via DC jack or Passive PoE)

• Maximum Power Consumption:5 W

• Soğutma: Pasif

🌐 Network Features

• Ethernet Ports: 5 units of 10/100/1000 Mbps Gigabit Ethernet

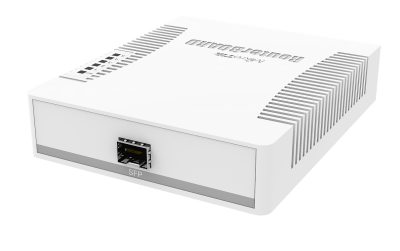

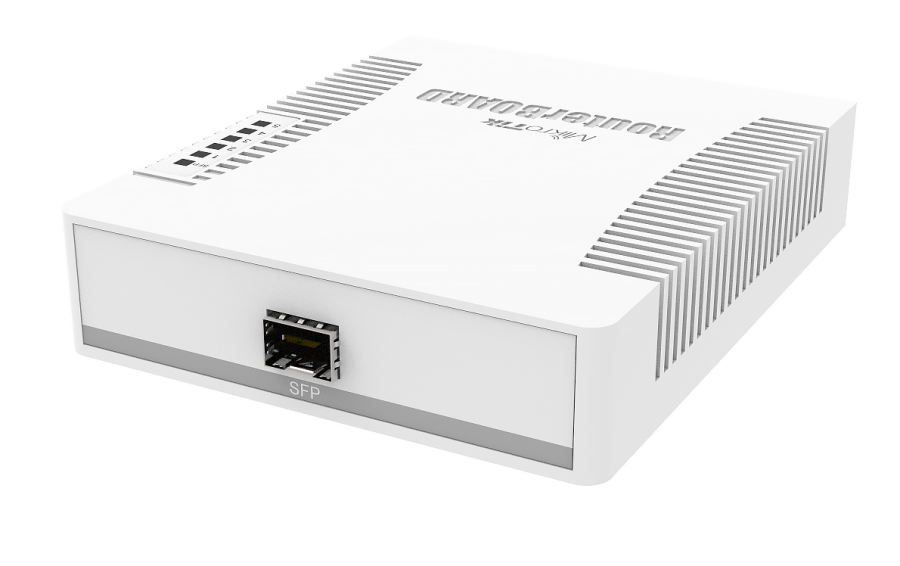

• SFP Slot: 1 piece (DDMI supported)

• Recommended SFP Modules: S-85DLC05D, S-31DLC20D, S-35/53LC20D (not included)

🛠️ SwOS Management Features

• Port Management: Port-to-port routing, port isolation, port locking

• VLAN Support: IEEE 802.1Q compliant, port-based VLAN, VLAN filtering

• QoS (Quality of Service): Incoming and outgoing traffic limitation

• Network Monitoring: Port-based traffic mirroring, IGMP Snooping

• ACL (Access Control List): Up to 32 rules, classification according to L2/L3/L4 protocol headers

• Other Features: Jumbo frame support (9198 bytes), RSTP support, MAC filtering

📦 Box Contents

• RB260GS device

• 12V 1A power adapter

💡 Usage Areas

• Small office or home office networks

• Network structures requiring fiber uplink

• Compact network solutions requiring manageable switches

The RB260GS is an ideal solution for users seeking an affordable and functional manageable switch. Thanks to the SwOS operating system, it can be easily configured via a web browser and offers flexible solutions for your network management needs.
