CRS504+4XQ-OUT

​The MikroTik CRS504-4XQ-OUT is a high-speed and energy-efficient 100 Gigabit network switch designed for outdoor use. Its robust housing, certified IP66, makes it resistant to harsh weather conditions. This device is ideal for data centers, ISPs, and outdoor applications requiring high bandwidth.​

🔧 Technical Specifications

• Model Code: CRS504-4XQ-OUT

• İşlemci: QCA9531, single-core, 650 MHz

• Mimari: MIPSBE

• RAM: 128 MB

• Depolama: 32 MB Flash

• Operating System: RouterOS v7 (License Level 5)

• Switching Chipset: Marvell Prestera 98DX4310

• Boyutlar: 330 x 200 x 70 mm

• IP Protection Class: IP66

• Operating Temperature: -40°C to +70°C

• MTBF: Approximately 200,000 hours (at 25°C ambient temperature)​

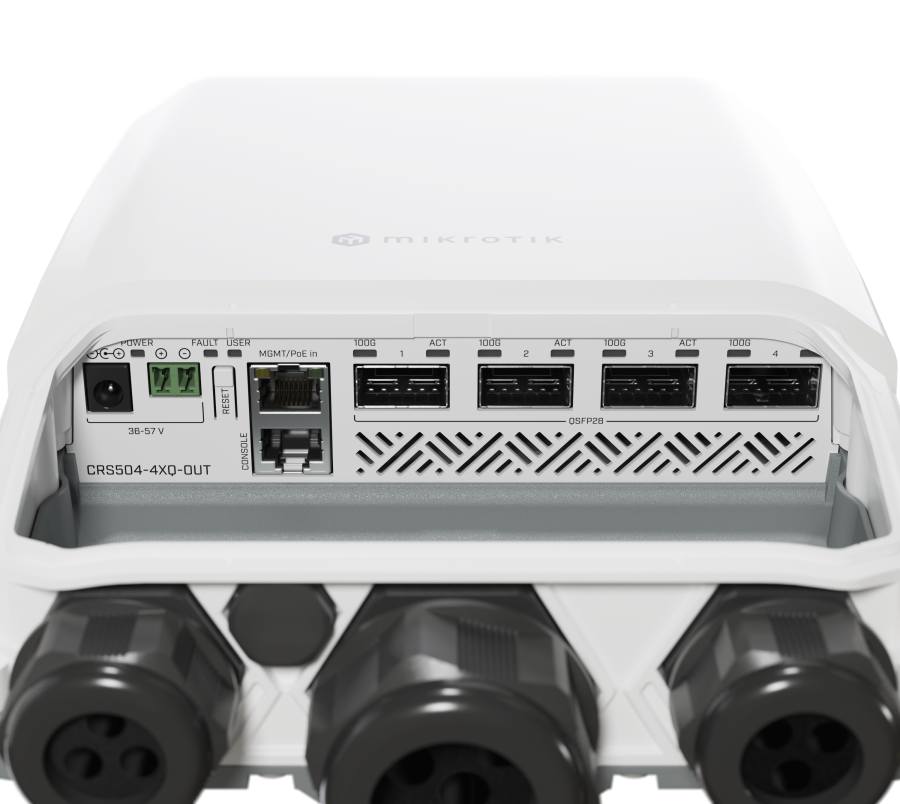

📡 Connection Points

• QSFP28 Ports: 4 pieces of 100G (each supports 4x25G)

• Ethernet Port: 1 unit 10/100 Mbps management port

• Console PortRJ45

⚡ Power Options

• DC Inputs: 3 pieces (PoE-in, DC jack, 2-pin terminal)

• PoE-in Voltage: 43–57 V (802.3bt)

• DC Jack Voltage: 36–57 V

• 2-pin Terminal Voltage: 36–57 V

• Maximum Power Consumption: 38 W (25 W without additional equipment)​

💡 Highlighted Features

• High Performance: It supports VLAN, ACL, MLAG, Jumbo frame, and some L3 hardware acceleration features.

• Flexible Connection: It is compatible with 100G, 40G, 25G, 10G, and 1G connections.

• Durable Design: The IP66 certified enclosure provides protection against harsh outdoor conditions.

• Multiple Power Options: Flexible power supply via PoE-in, DC jack, and 2-pin terminal.​
