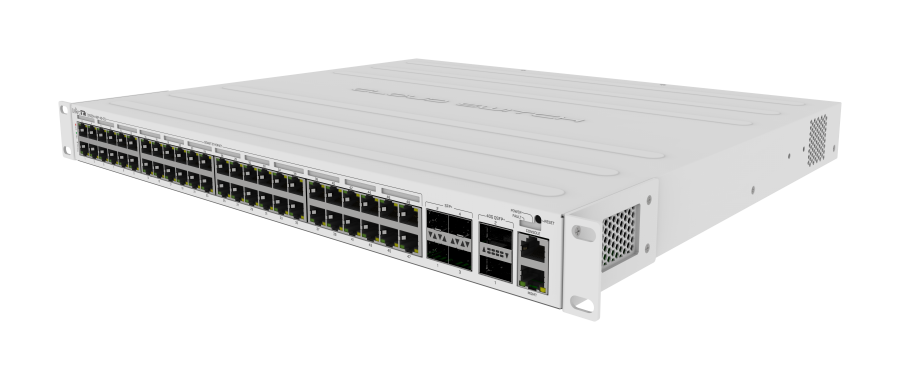

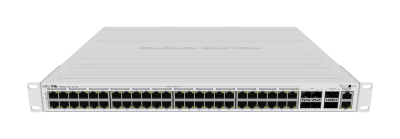

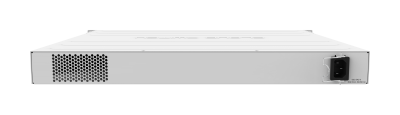

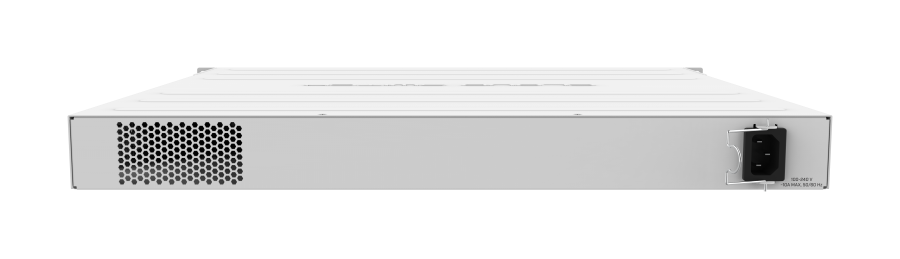

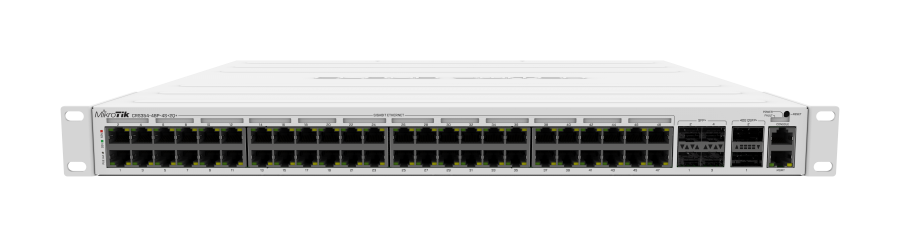

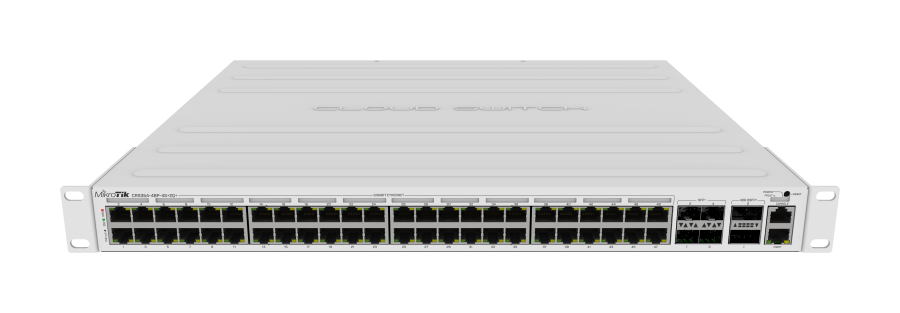

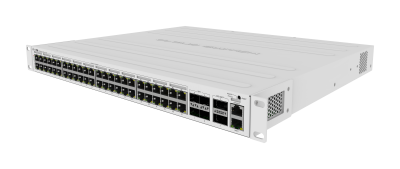

CRS354-48P-4S+2Q+RM

MikroTik CRS354-48P-4S+2Q+RM, It is a 48-port PoE+ switch designed for high-performance network infrastructures. It offers flexibility in both data transmission and power supply.

📦 Hardware Specifications

• Model Code: CRS354-48P-4S+2Q+RM

• İşlemci: Qualcomm Atheros QCA9531, 650 MHz, 1 core

• Mimari: MIPSBE

• RAM: 64 MB

• Depolama: 16 MB Flash

• Switch Chip: Marvell 98DX3257

• Boyutlar: 443 x 382 x 44 mm (1U rackmount)

• Ağırlık: Approximately 4.5 kg

• RouterOS License: Level 5

• Operating System: RouterOS v7 / SwitchOS

• Operating Temperature: -20°C to +60°C

• MTBF (Mean Time Between Failures): Approximately 200,000 hours @ 25°C

🌐 Network Ports

• 48 x 1G RJ45 Ethernet Port: All ports support PoE output.

• 4 x 10G SFP+ Ports: For high-speed fiber connections.

• 2 x 40G QSFP+ Ports: For network backbone and data center connections.

• 1 x 10/100M Ethernet Port: For management access.

• 1 x RJ45 Console Port: For software access.

⚡ Power and Cooling

• Input Voltage: 100–240 V AC, 50/60 Hz

• Power Supply: 750 W AC PSU

• Maximum Power Consumption:85 W

• Soğutma: 4 fans with automatic speed control

📈 Performance Features

• Total Non-Blocking Throughput: 168 Gbps

• Switching Capacity: 336 Gbps

• Forwarding Rate: 235 Mpps

🔌 PoE Features

• PoE Output Types: Passive PoE, low voltage PoE, 802.3af/at (PoE/PoE+)

• PoE Output Voltage: Auto-sensing

• PoE Output Current: Up to 0.5 A per port

🛠️ Assembly and Management

• Montaj: 19" rackmount, 1U size

• Management Access: WebFig, Winbox, CLI, SNMP

• Cable Management: Special bracket for cable management
