CRS305-1G-4S+OUT

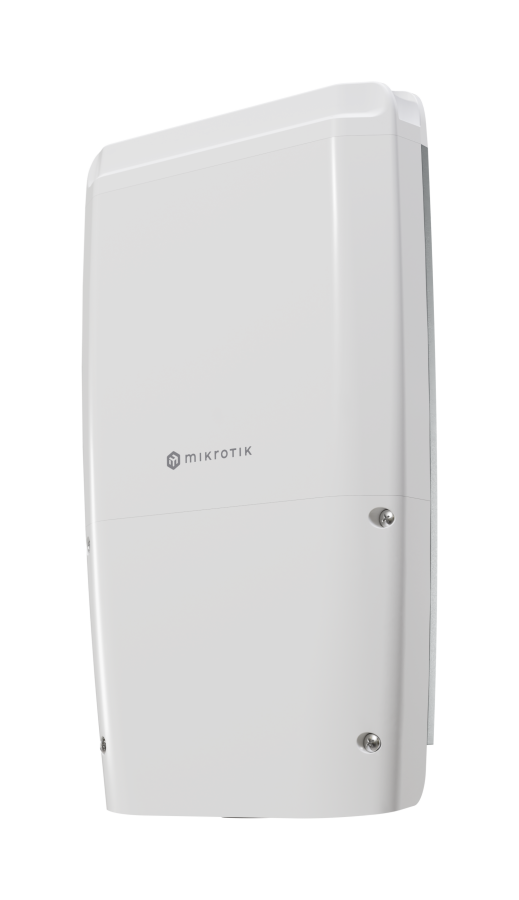

​MikroTik CRS305-1G-4S+OUT, also known asFiberBox Plus, it is a compact and high-performance 10 Gigabit Ethernet switch designed for outdoor use. With its IP66 certified water and dust resistant housing, it provides reliable network connectivity in harsh weather conditions.​

📦 Hardware Specifications

• Model Code: CRS305-1G-4S+OUT

• İşlemci: Marvell 98DX226S, 800 MHz, 1 core, ARM 32-bit architecture

• RAM: 256 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS v7 (License Level 5) or SwitchOS (dual boot support)

• Boyutlar: 330 x 200 x 70 mm

• Operating Temperature: -40°C to +70°C

• IP Protection Class: IP66 (resistant to high-pressure water jets and dust)​

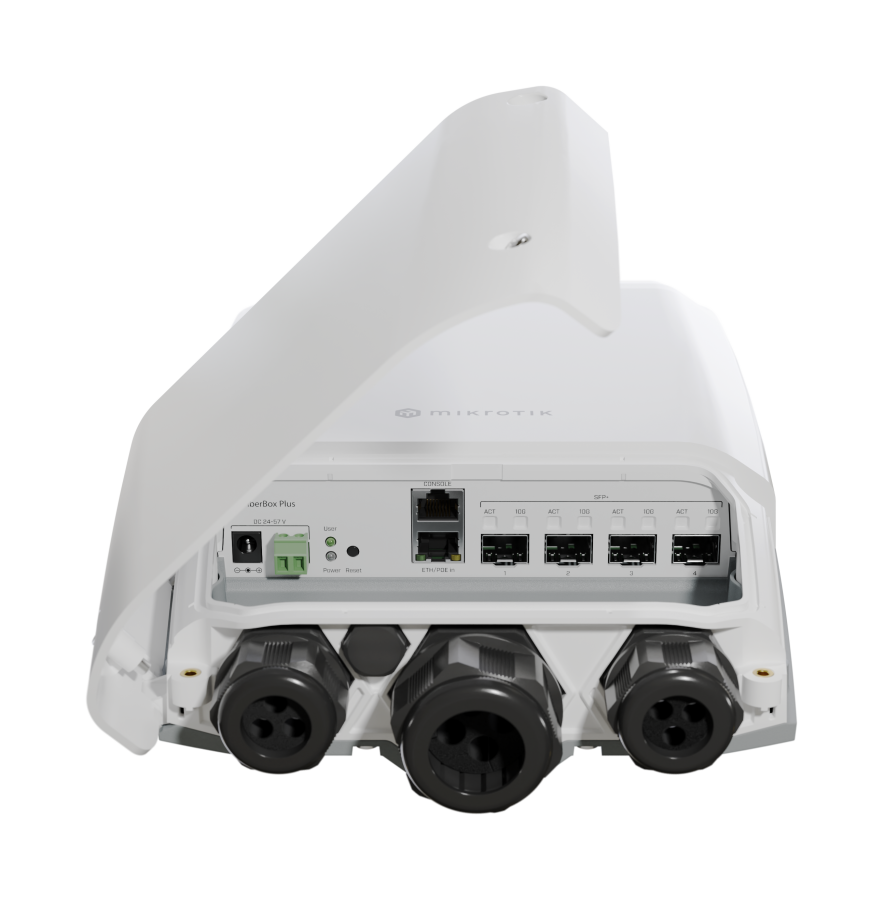

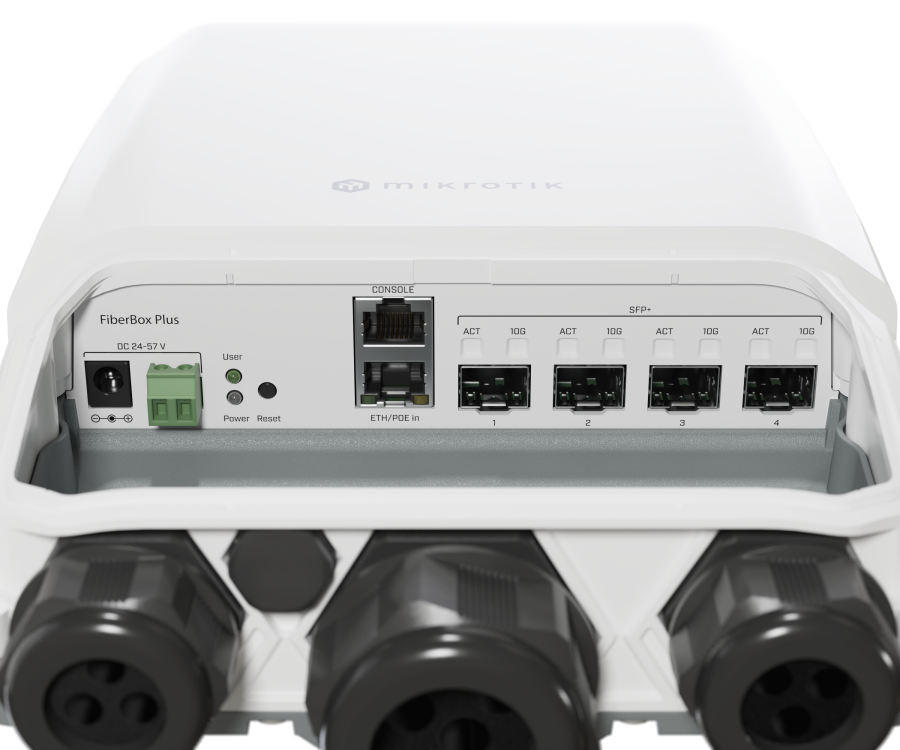

🔌 Connection and Power Features

• Ethernet Ports: 1 x 10/100/1000 Mbps Gigabit Ethernet (for management and PoE-in)

• SFP+ Ports: 4 x 10 Gbps SFP+ slot

• Power Inputs:

  • PoE-in: 802.3af/at standard, 42–57 V

  • DC Jack: 24–57 V

  • 2-pin terminal: 24–57 V

• Maximum Power Consumption:

  • Without additional equipment: 7 W

  • Maximum: 17 W​

📦 Box Contents

• CRS305-1G-4S+OUT device

• 48V 1.2A power adapter

• Gigabit PoE injector

• Assembly kit (K-41 and K-72)

• Hose clamp​

🎯 Featured Features

• Durable case with IP66 certification for outdoor installations.

• 4 ports with 10 Gbps SFP+ for high-speed fiber connection support

• Gigabit Ethernet port for management and power input

• With the dual boot feature, you can choose between RouterOS or SwitchOS.

• Wide voltage range and three different power input options
