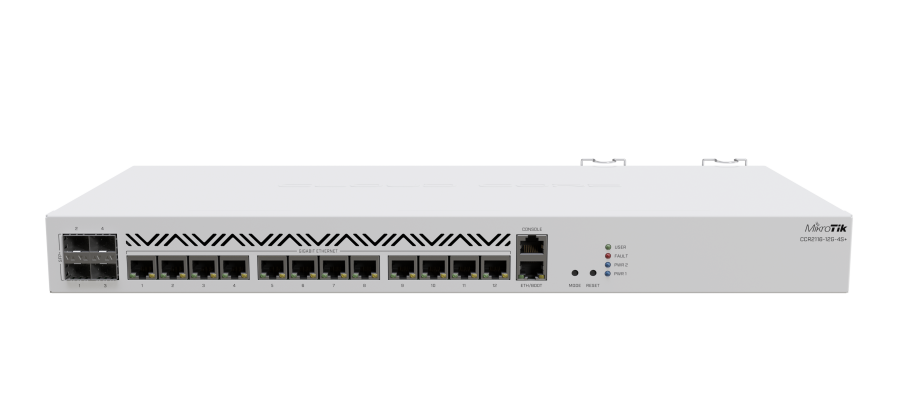

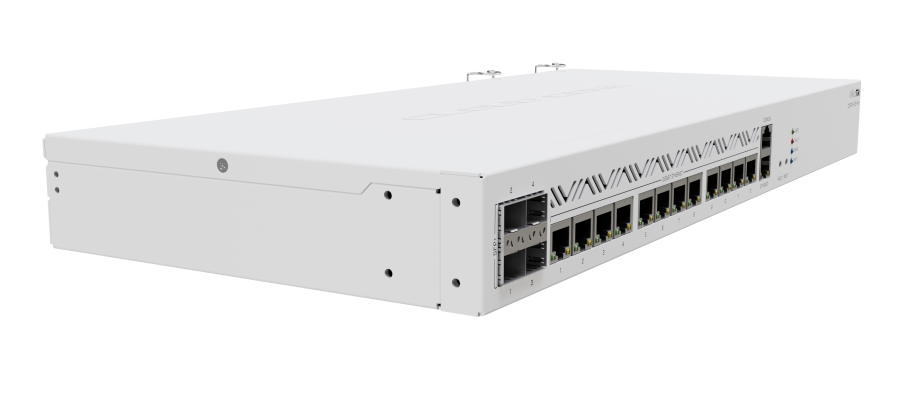

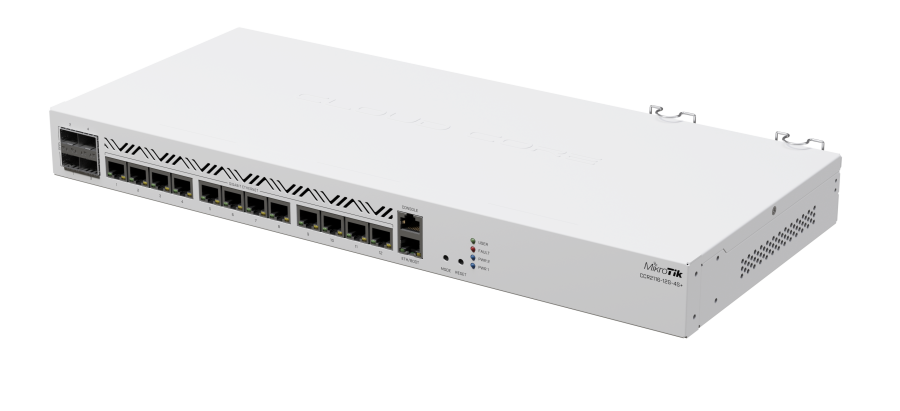

MikroTik CCR2116-12G-4S+, is a high-performance router designed for data centers, service providers, and large-scale networks. This device stands out with its powerful hardware features and advanced connectivity options.
Product Code: CCR2116-12G-4S+
İşlemci: Amazon Annapurna Labs AL73400, 16-core, 2.0 GHz, ARM 64-bit architecture
RAM: 16 GB DDR4
Depolama: 128 MB NAND Flash
RouterOS License: Level 6 (Only RouterOS v7 supported)
Boyutlar: 443 x 199 x 44 mm
Operating Temperature: -20°C to +60°C
MTBF (Mean Time Between Failures): Approximately 200,000 hours @ 25°C
Ethernet: 12 x 10/100/1000 Mbps RJ45 port
SFP+: 4 x 10G SFP+ port
Konsol: 1 x RJ45 serial port
M.2 Slot: 1 x PCIe Gen3 x4 M.2 slot (NVMe SSD support)
Switch Chipset: Marvell 98DX3255
IPsec Hardware Acceleration: Mevcuttur
Layer 3 Hardware Offloading: Desteklenmektedir

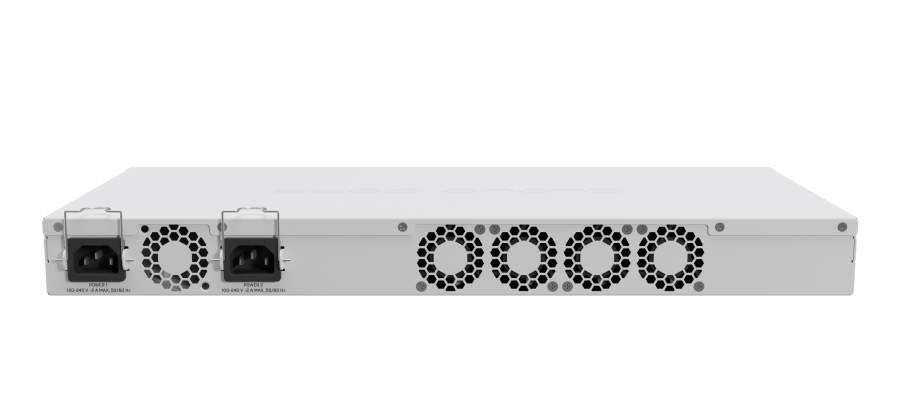

Number of AC Inputs: 2 (100–240 V, 50–60 Hz)
Maximum Power Consumption: 83 W
Power Consumption Without Additional Devices60 W
Soğutma: 4 fans
CCR2116-12G-4S+ device
IEC power cable
Rack mounting ears
Cable management brackets
K-82 fixing set
Rack mounting rear support ears (2 pieces)
High Performance: It offers high processing capacity with a 16-core 2.0 GHz processor.
Advanced Connection Options: It provides flexible connectivity with 4 x 10G SFP+ ports and 12 x Gigabit Ethernet ports.
Hardware-Based Routing: Routing performance increases with L3 hardware acceleration.
Redundant Power and Cooling: Dual AC power input and 4 fans enable uninterrupted operation.
Expandable Storage: It offers additional storage options with an M.2 PCIe slot.
CCR2116-12G-4S+ is designed to replace MikroTik's previous flagship CCR1036 and offers higher performance with lower power consumption. This router is an ideal solution to meet the need for reliable and high-speed connections in environments with heavy network traffic.
