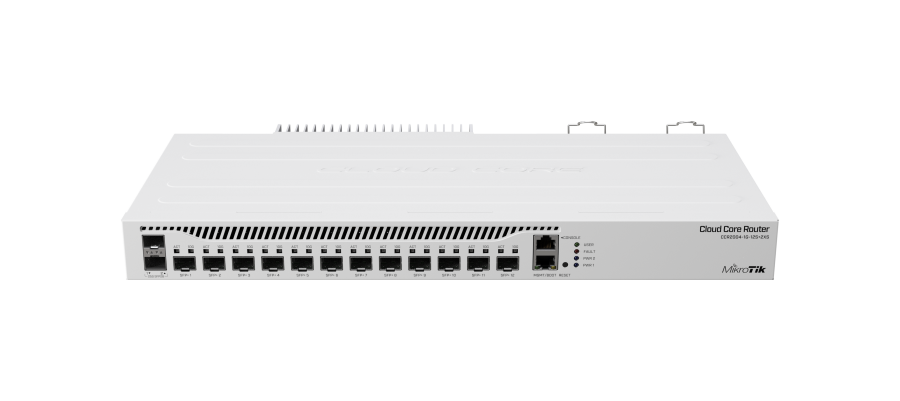

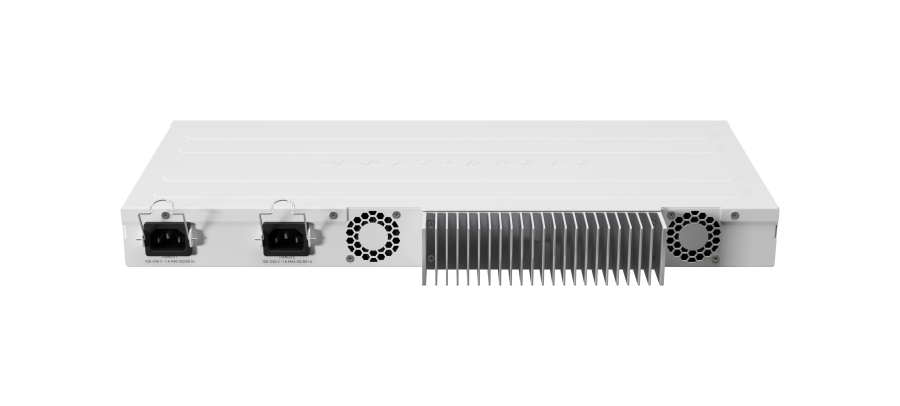

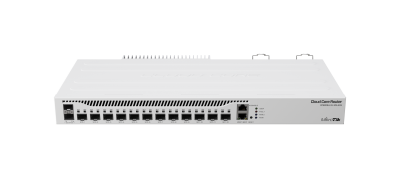

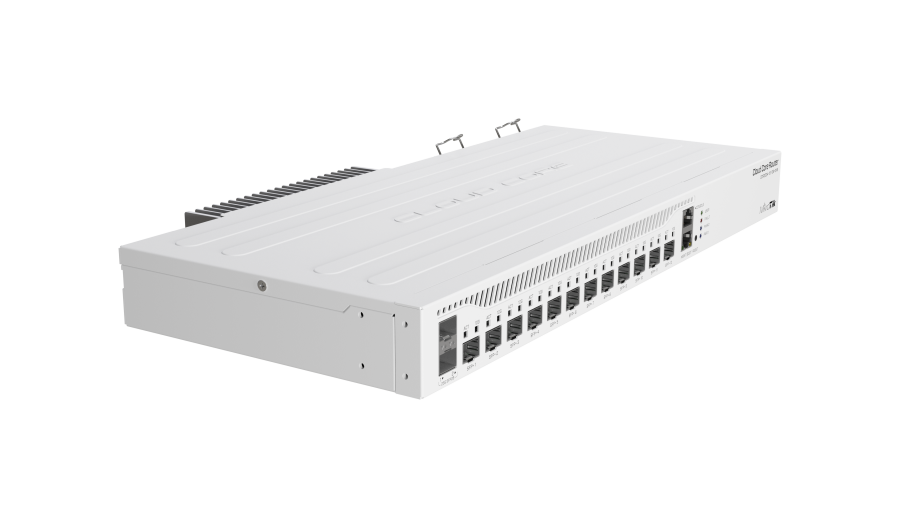

CCR2004-1G-12S+2XS

MikroTik CCR2004-1G-12S+2XS, is a high-performance, multi-port router. It is specifically designed for data centers, service providers, and corporate networks requiring high bandwidth. It offers flexible connection options with 12 units of 10G SFP+ and 2 units of 25G SFP28 ports.

📦 Hardware Specifications

• Model Code: CCR2004-1G-12S+2XS

• İşlemci: Annapurna Labs AL32400, 4 cores, 1.7 GHz

• Mimari: ARM 64-bit

• RAM: 4 GB ECC DDR4

• Depolama: 128 MB NAND Flash

• Boyutlar: 443 x 224 x 44 mm (1U rackmount)

• RouterOS License Level: Level 6

• Operating System: RouterOS v7

• MTBF: Approximately 200,000 hours @ 25°C

• Operating Temperature: Between -20°C and +60°C

🌐 Network Interfaces

• 1 piece 10/100/1000 Mbps Gigabit Ethernet port

• 12 pieces 10G SFP+ port

• 2 pieces 25G SFP28 port

• 1 piece RJ45 serial console port

⚡ Power and Cooling

• AC Input: 100–240 V, 50/60 Hz

• Number of AC Inputs: 2 (dual redundant power supply)

• Maximum Power Consumption:49 W

• Soğutma: 2 active fans

🔐 IPsec Hardware Acceleration Performance

These values indicate that the device provides high IPsec tunnel performance.

💡 Highlighted Features

• High Performance: It is one of MikroTik's most powerful routers in terms of single-core performance.

• Flexible Connection: It adapts to different network needs thanks to the 10G and 25G port combination.

• Yedeklilik: It offers uninterrupted operation with dual AC power input.

• Advanced Software: RouterOS v7 supports dynamic routing, VPN, QoS, and many other advanced networking features.
