cAPGi-5HaxD2HaxD

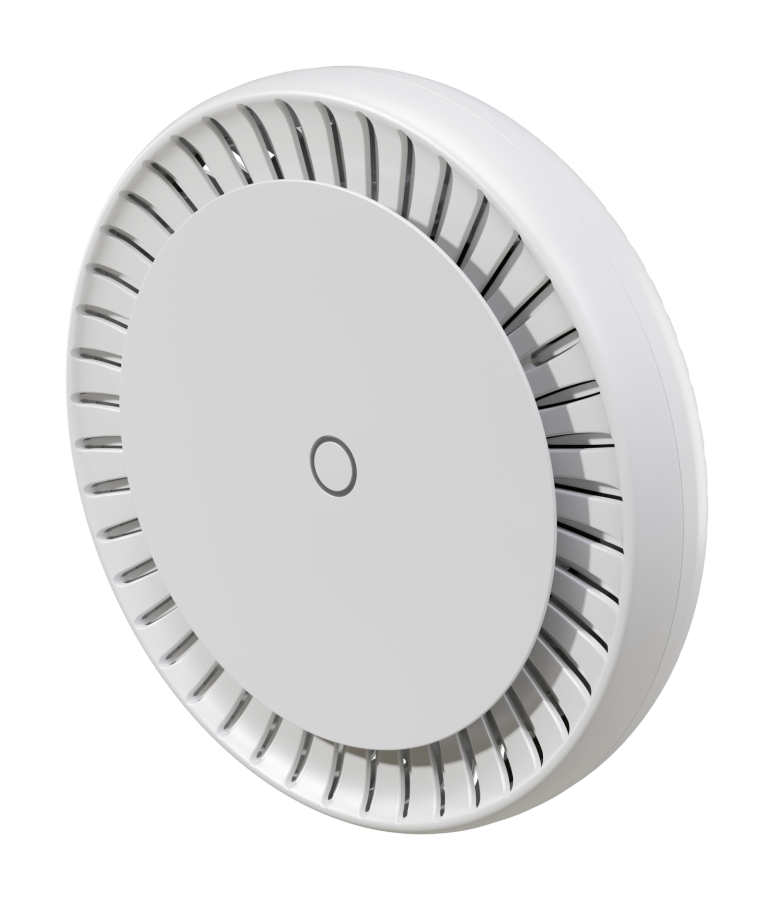

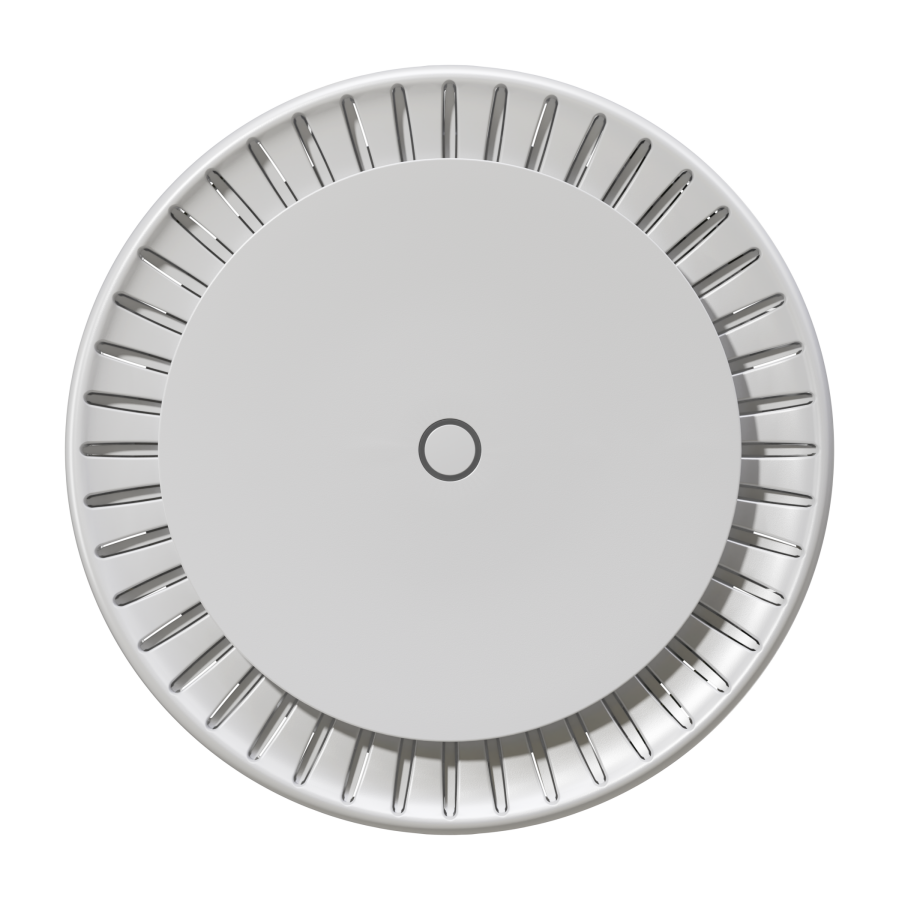

MikroTik cAPGi-5HaxD2HaxD (cAP ax) is a ceiling-mounted access point that offers Wi-Fi 6 (802.11ax) support. Designed for offices, hotels, shopping centers, and high-density areas.​

📡 Wireless Features

• Wi-Fi Standard: 802.11ax (Wi-Fi 6)

• 2.4 GHz: 574 Mbps, 2x2 MIMO, 6 dBi antenna gain

• 5 GHz: 1200 Mbps, 2x2 MIMO, 5.5 dBi antenna gain

• Total Wireless Speed: AX1800

• Wireless Chips: QCN-5022 (2.4 GHz), QCN-5052 (5 GHz)

• Supported Security Protocols: WPA3-PSK, WPA3-EAP, OWE, 802.11r roaming ​

🔧 Hardware Specifications

• İşlemci: Qualcomm IPQ-6010, 4 cores, 864–1800 MHz

• RAM: 1 GB DDR3L

• Depolama: 128 MB NAND

• Operating System: RouterOS v7 (License Level 4)

• Switch Chip: IPQ-6010

• Boyutlar: 228 x 48 mm

• Operating Temperature: -40°C to +70°C

• MTBF: Approximately 200,000 hours (at 25°C)

🔌 Ethernet and Power Options

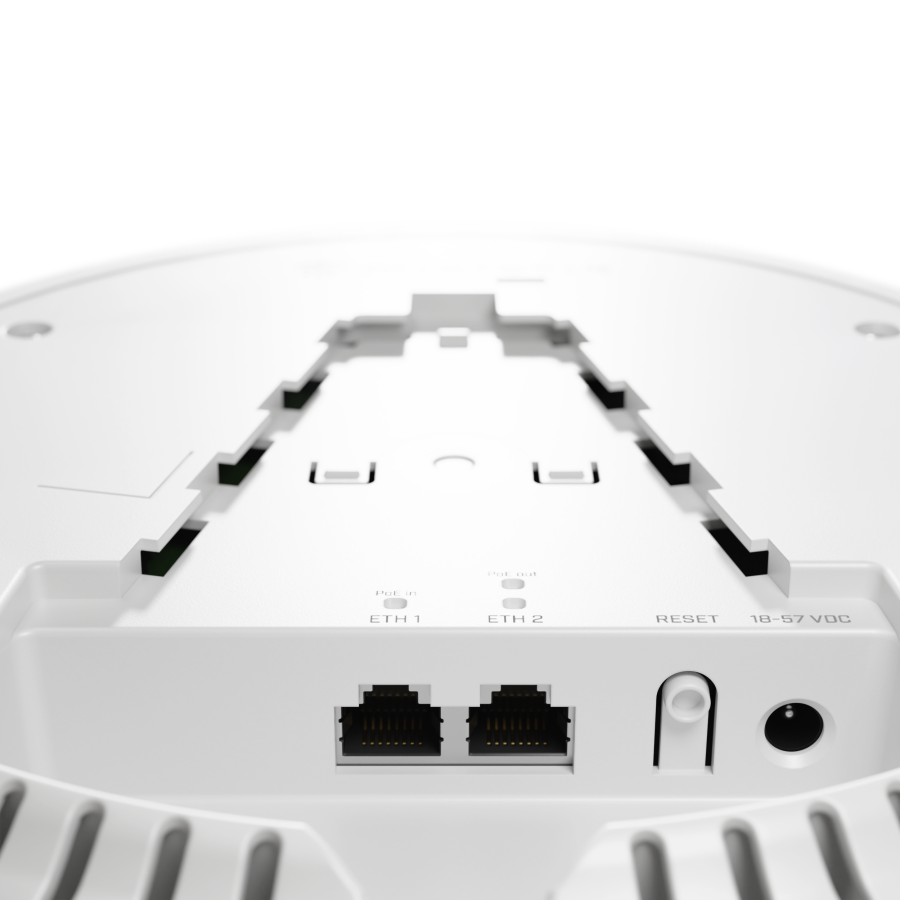

• Ethernet Ports: 2 x Gigabit Ethernet

• PoE Features:

  • PoE-in: 802.3af/at (18–57 V)

  • PoE-out: Passive PoE (via Ether2), maximum output:

    • Input <30 V: 600 mA

    • Input >30 V: 400 mA

• DC Input: 18–57 V

• Maximum Power Consumption: 28.2 W

• Soğutma: Pasif ​

📦 Box Contents

• cAPGi-5HaxD2HaxD device

• 48V 0.95A power adapter

• Gigabit PoE injector

• Ceiling mounting device

• Assembly kit

🎯 Featured Features

• Wi-Fi 6 technology with high speed and capacity

• Advanced security protocols

• Flexible installation with PoE-in and PoE-out support

• Central management capability with CAPsMAN

• Ceiling mounting for aesthetics and space saving​
