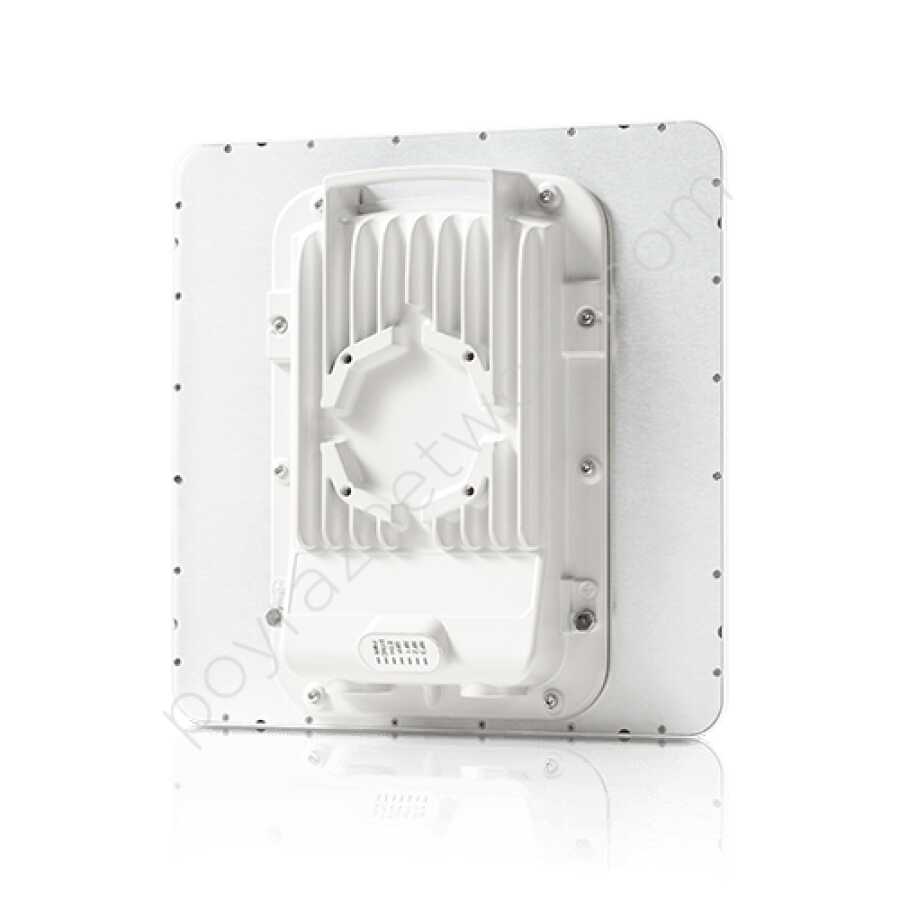

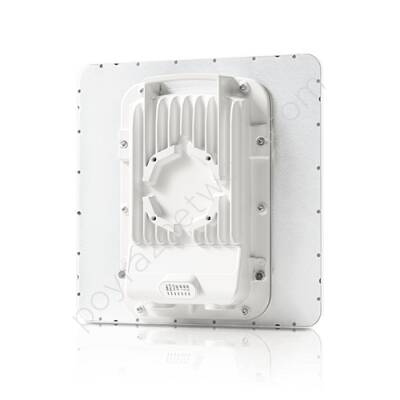

PTP 550E INTEGRATED INC. 4.9 GHz (ROW)

📡 General Description

PTP 550E Integrated, Cambium's high-capacity, designed for licensed and unlicensed bandsPoint-to-PointIt is a wireless bridge solution.4.9 GHz – 6.2 GHzwide frequency range withhigh data transfer capacity (up to 1.36 Gbps)presents. Thanks to the integrated dual radio structure,dual channel transport (Dual Carrier)has the feature.

⚙️ Technical Specifications

• Model:Cambium PTP 550E Integrated

• Frequency Range:

  • 4.9 GHz – 6.2 GHz(ROW – Rest of World version)

• Channel Width:

  • 20 / 40 / 80 MHz (independent selection for each carrier)

• Maximum Capacity:

  • 1.36 Gbps total (up to 680 Mbps per carrier)

• Number of Radios:2 independent radios (Dual Carrier)

• MIMO:2x2 MIMO (per carrier)

• Modülasyon:QPSK – 256 QAM

• Protokol:Cambium TDD

📶 Antenna Features

• Antenna Type:Integrated panel antenna

• Gain (Gain):23 dBi

• 3 dB Beamwidth:

  • Horizontal: 9.6°

  • Vertical: 9.6°

• Polarizasyon:Dual slant (±45°)

🔌 Connection and Power

• Ethernet Ports:

  • 2 × 10/100/1000 Mbps Ethernet port

• SFP Port: Var

• Power Input:

  • 802.3at PoE (Power over Ethernet)

  • Max. Power Consumption: Approximately 25 W

🧱 Physical Properties

• Boyutlar:400 × 400 × 89 mm

• Ağırlık:~5.5 kg

• Protection Class:IP66/IP67 (suitable for outdoor use)

• Montaj:

  • Kit included for pole and mast installation.

  • Adjustable ±15° tilt setting

• Wind Resistance:200 km/h

🌐 Other Features

• Spectrum Analyzer (Advanced interference analysis)

• Dynamic Spectrum Optimization (DSO)

  • Detecting frequency interference and automatic channel switching

• AES 128 encryption support

• GPS Synchronization: Opsiyonel

📦 Package Contents

• 1 × PTP 550E Integrated Radio (one side)

• 1 × Assembly kit

• 1 × PoE power adapter and cable

• Installation guide

✅ Areas of Use

• High-bandwidth data connections required between companies

• Video surveillance systems (CCTV, city security)

• Rural and suburban fiber alternative

• Critical mission applications (energy, transportation, public safety)
