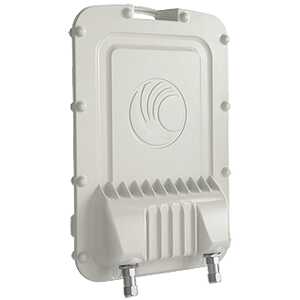

Cambium PTP 550 ConnectorizedA high-capacity one operating in the 5 GHz band,point-to-point (Point-to-Point - PTP)It is a wireless communication solution. It is specifically designed for heavy data traffic, long distances, and high-interference environments.ConnectorizedThe model has been developed for use with an external antenna.
Frequency Band:4.900 – 5.970 GHz
(It varies depending on local regulations)
Number of Radios:2 independent 2x2 MIMO radios (dual carrier)
Maximum Total Capacity:
Total data rate up to 1 Gbps
Channel Widths:
Supports 20 / 40 / 80 MHz
Modülasyon:
From QPSK to 256-QAM
Output Power:
Maximum 27 dBm (per carrier)
Connection Interface:
2 × N-female connectors (external antenna connection)
1 × Gigabit Ethernet (RJ45)
Zamanlama:
GPS synchronization support
Power Input:
30 VDC, PoE (Power over Ethernet)
AC power adapter (with EU line cord)
Power Consumption:
Approximately 15-25W
Cash Protection:IP66 / IP67 – resistant to water and dust
Operating Temperature:-40°C to +60°C
Boyutlar:26.4 × 12.6 × 5.0 cm
Ağırlık:~1.5 kg
Antenna Type:Use with external antenna (N-female output)
Matching Antennas:
Compatible with Cambium or 3rd party dual-pol external antennas.
High-gain parabolic or grid antennas are recommended.
Rural and intercity PTP connections
WISP (Wireless Internet Service Provider) backhaul infrastructures
CCTV / video surveillance systems
Bridging between corporate networks
High capacity and redundancy with dual carrier structure
Reduction of interference with advanced DFS and dynamic channel selection
Superior performance in multi-link setups with GPS synchronization.
IP67 outdoor protection
Beamforming optimization with flexible antenna selection
