CAMBIUM ePMP SECTOR ANTENNA, 5 GHz, 90/120 and Mounting Kit

📡 General Description

This sector antenna,Cambium ePMP 1000 / 2000 / 3000L Access PointIt is fully compatible with its devices.Wide coverage angle (90° or 120°) ve high gainIt offers ideal performance in point-to-multipoint (PtMP) connections thanks to it.

⚙️ Technical Specifications

• Model:Cambium ePMP Sector Antenna

• Frequency Range:5.15 – 5.97 GHz

• Gain (Gain):17 dBi (average)

• Beamwidth:

  • Horizontal:90° (typical)

  • Vertical: 15°

• Polarizasyon:Dual Slant (±45°)

• MIMO Support:2x2 MIMO

• Antenna Type:Panel type sector antenna

• Front-to-Back Ratio:> 35 dB

• VSWR:< 1.5:1 typical

• Antenna Connectors:2 × N-Type Female

🧱 Physical Properties

• Boyutlar:Approximately 47.5 cm x 12.3 cm x 6.4 cm

• Ağırlık:Approximately 2.8 kg

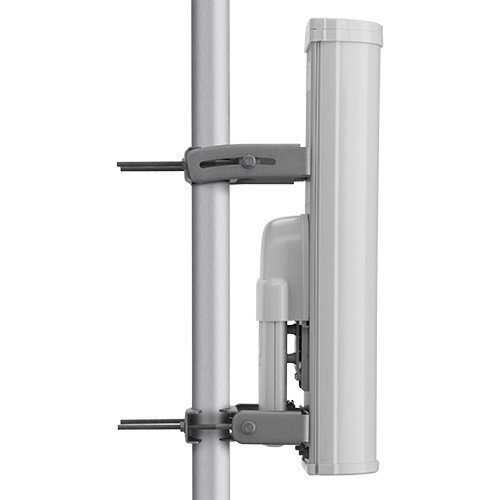

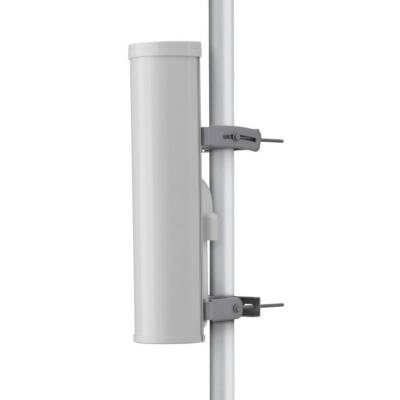

• Montaj:

  • Including direct mounting apparatus

  • Adjustable tilt support (±15°)

• Wind Resistance:

  • Max. 200 km/h

✅ Compatible Devices

• ePMP 1000 Access Point

• ePMP 2000 Access Point(Can be used with Smart Antenna)

• ePMP 3000L Access Point

• Note: A special 4x4 antenna must be used for ePMP 3000 (4x4 MU-MIMO).

🌍 Application Areas

• Rural and semi-urban WISP deployment

• Point-to-Multipoint installations requiring wide area coverage

• Distributions with a high front-to-back ratio for parasitic control

📦 Package Contents

• 1 × ePMP Sector Antenna (90° or 120°)

• 1 × Assembly kit

• 2 × N-Type RF cable

• Installation guide
