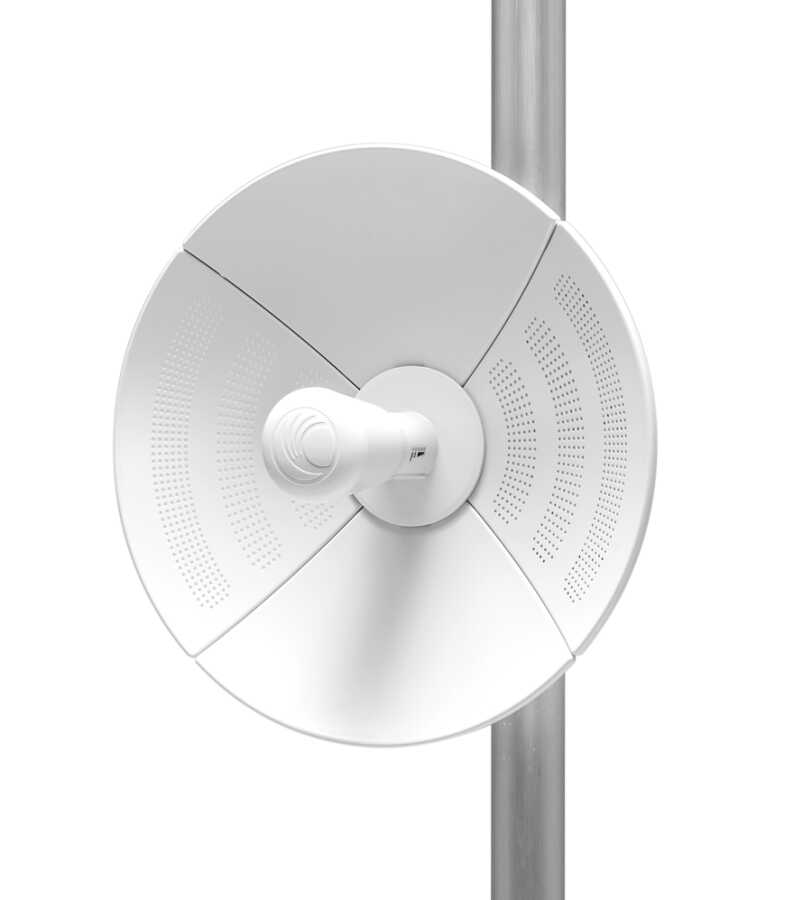

CAMBIUM ePMP Force 190

📡 General Description

Cambium ePMP Force 190, combining high performance and low cost,integrated 25 dBi antenna, a compactSubscriber Module (SM)is a device. Especiallypoint-to-multipoint (PtMP)and short-medium rangepoint to point (PtP)It is ideal for connections.

⚙️ Technical Specifications

• Model:ePMP Force 190

• Frequency Range:4910 – 5970 MHz(ROW - may vary according to regional regulation)

• Channel Width:5 / 10 / 20 / 40 MHz

• Maximum Capacity: Yaklaşık 200+ Mbps

• Modülasyon:QPSK – 256 QAM

• MIMO:2x2 MIMO

• Protokoller:

  • Cambium TDD

  • ePTP (low latency mode)

• Ethernet Port:1 × 10/100 Mbps Ethernet

• Power Supply:30 V PoE (Power over Ethernet)

• Power Consumption:Approximately 8 W

📡 Antenna Features

• Antenna Type:Integrated parabolic antenna

• Antenna Gain:25 dBi

• Beamwidth:

  • H: 8°

  • V: 8°

🧱 Physical Properties

• Protection Class: IP55

• Operating Temperature:-30°C to +60°C

• Boyutlar:20.5 cm (diameter)

• Ağırlık:~1.3 kg

• Montaj:

  • The pole mounting bracket is included in the box.

  • Mechanical tilt support for direction adjustment

🌍 Application Areas

• Short and medium range PtP connections

• PtMP subscriber (subscription) solutions

• CCTV connections

• Low-cost terminal unit (SM) for WISP infrastructure

✅ Advantages

• Compact designThanks to it, space saving and low wind load.

• 25 dBi integrated antennawith high signal gain

• Low latency and high efficiency(ePTP mode)

• Safe operation outdoors with IP55 protection.

• Good price/performance ratio

📦 Package Contents

• 1 × Force 190 device

• 1 × PoE power adapter and power cable

• 1 × Pole mounting bracket

• Installation guide
