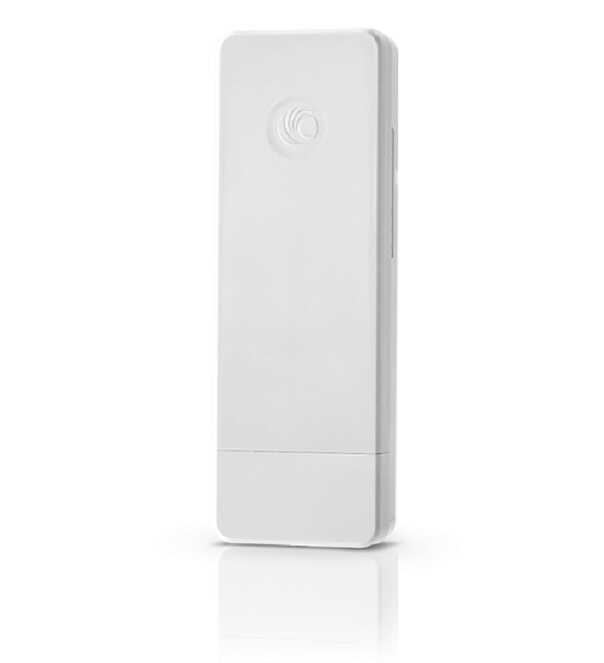

ePMP 5 GHz FORCE 130 SM

📡 General Description

ePMP Force 130 SM, Cambium Networks’In the 5 GHz bandemployee, economic yet powerfulsubscription module (SM)In point-to-multipoint (PtMP) networks,ePMP 1000/2000/3000 Access PointIt is compatible with your devices. With its compact size and affordable price,WISP (wireless service providers)is ideal for.

⚙️ Technical Specifications

• Model:ePMP Force 130 SM

• Frequency Range:

  • 5150 – 5970 MHz(may vary depending on local regulations)

• Channel Width:

  • 5 / 10 / 20 / 40 MHz

• Modülasyon:

  • QPSK – 256 QAM

• Maximum Capacity:

  • Approximately 140 Mbps (with 20 MHz channel)

• MIMO:2x2 MIMO

• Antenna Gain:14 dBi integrated panel antenna

• Beam Width:Approximately 30°

• Ethernet Port:

  • 1 × 10/100 Mbps Ethernet (PoE supported)

• Zamanlama:

  • GPS synchronized ePMP APs can work with.

• Protokoller:

  • TDD (Time Division Duplex)

  • Cambium ePTP (low latency mode)

• Power Consumption: ~8W

• Power Supply:30V PoE (with PoE adapter)

🧱 Physical Properties

• Protection Class: IP55

• Operating Temperature:-30°C to +60°C

• Boyutlar:26.7 x 11.3 x 5.1 cm (approximately)

• Ağırlık:~0.6 kg

• Montaj:The pole mounting bracket is included in the box.

🌍 Application Areas

• Rural/urban PtMP internet distribution

• WISP user connection

• Wireless network connection for camera and sensor systems.

• In places where an economic subscription solution is needed

✅ Advantages

• Affordable but powerful performance

• Small size, lightness, and easy assembly

• Compatible with the Cambium ePMP ecosystem.

• Interference reduction with GPS synchronized APs.

• Low latency and stable connection with ePTP mode.
