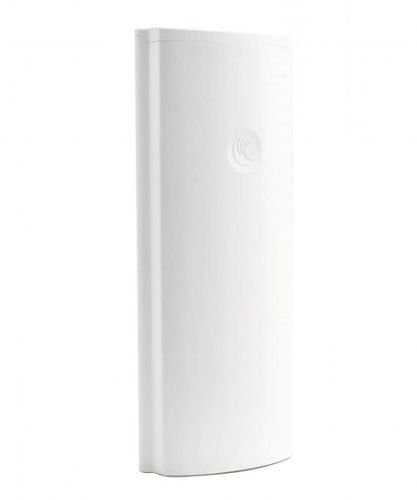

CAMBIUM ePMP 3000 Sector Antenna

Product Code : ST00753
15,789.03 TL + VAT
Price Alert
15,789.03 TL + VAT

📡 General Description

Cambium ePMP 3000 Sector AntennaCompatible with the ePMP 3000 Access Point, a high-performance device operating in the 5 GHz band.It is a MIMO 4x4 sector antenna.This antenna,high density PtMP (Point-to-Multipoint)It is designed for distributions. It is optimized to fully utilize beamforming and MU-MIMO (multi-user multiple input/multiple output) features.


⚙️ Technical Specifications

  • Model Name:Cambium ePMP 3000 Sector Antenna

  • Compatible Models:ePMP 3000 AP (fully compatible with 4x4 MU-MIMO support)

  • Frequency Range:4910 – 6135 MHz

  • Antenna Type:4 × 4 MIMO sector panel antenna

  • Channel Width Support:20 / 40 / 80 MHz

  • Kazanç:

    • 17 dBi (typical)

  • Beamwidth:

    • Azimuth: 90°

    • Elevation: 6°

  • Front-to-Back Ratio (F/B):≥ 30 dB

  • VSWR (return loss):< 1.5:1 typical

  • Number of Ports:4 pieces of N-Type female connectors (for 4x4 MIMO)

  • Polarizasyon:Dual slant 45° (cross-polarized)


🧱 Physical Properties

  • Protection Class: IP65

  • Operating Temperature:-40°C to +60°C

  • Boyutlar:49 × 16.5 × 9.4 cm

  • Ağırlık:Approximately 5.4 kg

  • Wind Resistance:190 km/h

  • Montaj:

    • Hardware for direct mounting is included.

    • Adjustable tilt mechanism for precise alignment


🌍 Application Areas

  • WISP deployments requiring wide area coverage

  • Rural or semi-urban PtMP solutions

  • High user density areas

  • Network operators who want to fully benefit from 4x4 MU-MIMO technology


✅ Advantages

  • 4x4 MIMO supportwith high capacity (full MU-MIMO compatibility with ePMP 3000)

  • Wide 90° horizontal coverage area

  • Superior insulation and noise reduction across sectors.

  • Robust, weather-resistant outdoor design

  • It comes with a direct mounting fixture for easy installation.


📦 Package Contents

  • 1 × ePMP 3000 Sector Antenna

  • 1 × Mounting apparatus

  • 4 × RF cable (for connection to ePMP 3000 AP)

  • Installation guide
