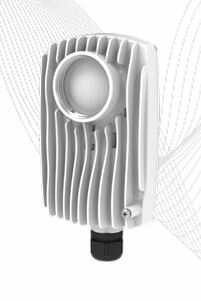

C6x-LE (Lite Edition)

📡 Overview

Mimosa C6x Lite Edition (LE), is a high-performance device designed for fixed wireless connections. Operating with an 80 MHz channel width and in the 5.15–6.425 GHz frequency range,Point-to-Point (PTP) ve Point-to-Multipoint (PTMP)It offers high speed and reliability in applications.

⚙️ Technical Specifications

• Frequency Range:5.15 – 6.425 GHz

• Gain:8–30 dBi (with modular antenna support)

• Total Speed:

  • PTP Mode:1.0 Gbps

  • PTMP Mode:750 Mbps

• Maximum Output Power:27 dBm

• IP Assessment:IP67 (water and dust resistant)

• Boyutlar:175 mm (H) × 70 mm (W) × 61 mm (D)

• Ağırlık:0.7 kg

• Power Consumption:Maximum 20 W

• Mounting Type:Designed for direct mounting, flexible installation options with modular antenna support.

🔧 Hardware and Design

• Modular Antenna Support:The C6x Lite comes with an 8 dBi built-in antenna. However, range and performance can be enhanced with modular antenna options (ranging from 8–30 dBi).

• Durable Structure:It is resistant to harsh weather conditions thanks to its IP67 certification.

• Compact Design:It offers easy installation and aesthetic mounting with its small dimensions.

🚀 Usage Scenarios

• PTP Connections:Ideal for bridge connections and background connections.

• PTMP Applications:It provides high speed and reliability in networks serving multiple subscribers.

• Open Field Applications:It is suitable for scenarios requiring wide coverage and high performance in open areas.

📈 Performance and Management

• Advanced RF Noise Reduction:With new generation RF noise reduction features, cleaner connections.

• 6 GHz Band Support:Ability to operate in the 6 GHz band with low noise levels.

• Management and Monitoring:Easy network management and monitoring with Mimosa Cloud and MMP (Mimosa Management Platform) integration.
