Electrical Properties
Frequency Range:4.8 – 6.4 GHz
Kazanç: 22 dBi
3 dB Beamwidth:15° (ortalama)
VSWR: 1.3:1 (ortalama)
Empedans: 50 Ω
Input Power:100 W
Konnektör: 2 × N‑Female
Side lobes and front/back isolation: Compliant with ETSI standard (e.g. front-to-back 32 dB)
Cross-polarization isolation: Max. 25 dB, typical 30 dB; port-to-port isolation: typical 45 dB
Mechanical Properties
Rigid structure diameter:250 mm
Ağırlık: ≈2.5 kg(including bracket)
Wind load: Operating 160 km/h, strength 230 km/h
Temperature range:-50 °C … +70 °C

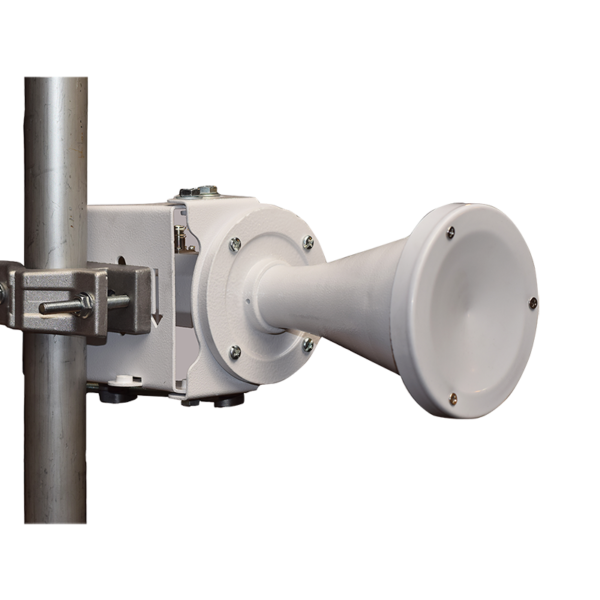

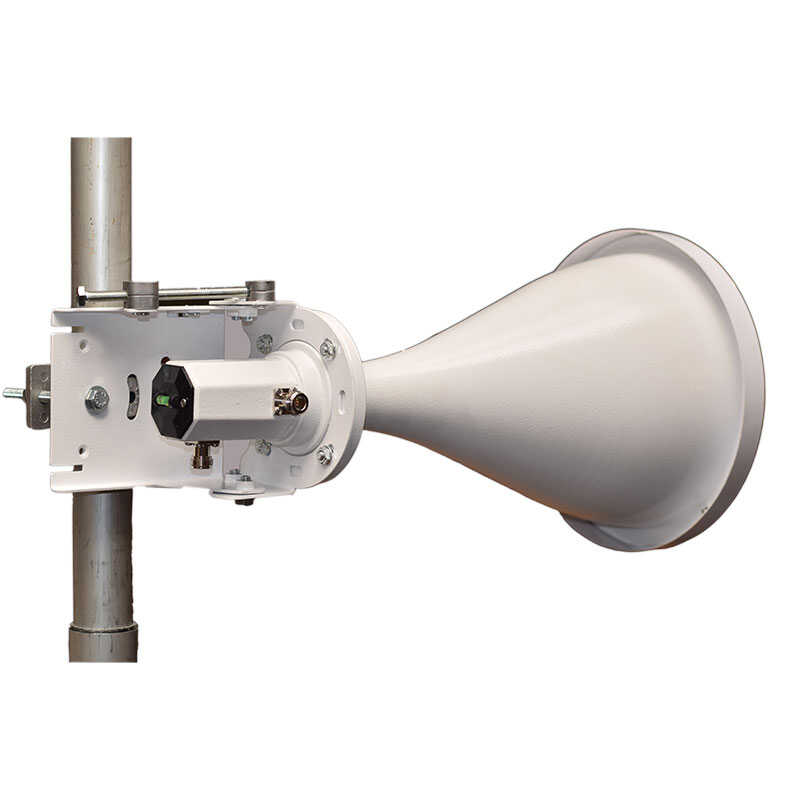

Assembly: Mounted to the pole with bracket (25–60 mm diameter)
It includes a precision mounting apparatus for Pan & Tilt adjustment.
Open area applications requiring high-gain antennas in PtP/PtMP connections
In noisy RF environments, performance due to low side lobe structure.
MIMO systems compatible with devices operating in the 4.8–6.4 GHz range.
