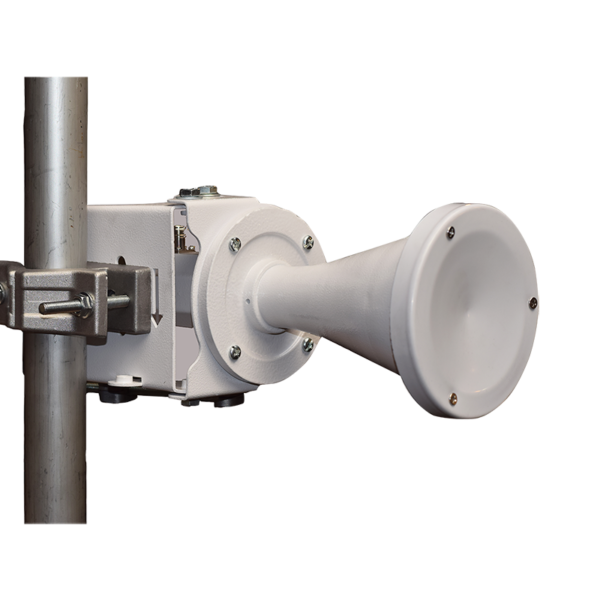

Door & Polarization:Horn type, dual polarized (vertical/horizontal) 5 GHz frequency band designed directional antenna
Frequency Range:4.7 – 6.4 GHz (4.8 – 6.1 GHz in some sources)
Kazanç:Approximately 15 dBi
3 dB Beamwidth:35° (typical)
VSWR:< 1.7:1 or typical 1.3:1
Empedans:50 Ω
Maximum Input Power:100 W
Ports:2 × N‑Female connector
Parasitic Spread:The side lobes comply with the ETSI EN 302.326-3 standard (DN1–DN5), 25–30 dB cross-polarization isolation, 32–45 dB port-to-port isolation.
Weight (Including Bracket):Approximately 2 kg
Montaj:Suitable for 25–60 mm diameter pole, with precise pan & tilt bracket mounting shaper
Wind Resistance:Working 170 km/h, survival 230 km/h
Operating Temperature:–50 °C … +70 °C
PTMP (point-to-multipoint) systems are ideal for use in noisy RF environments.
Outdoor applications requiring high coverage and directed signal quality.
Establishing a high-quality link with dual polarization in MIMO systems.
