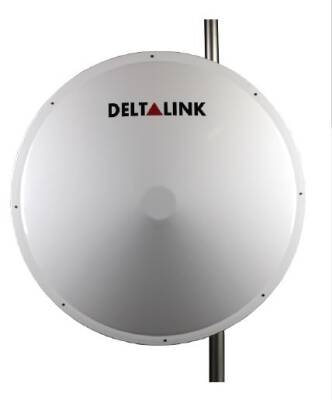

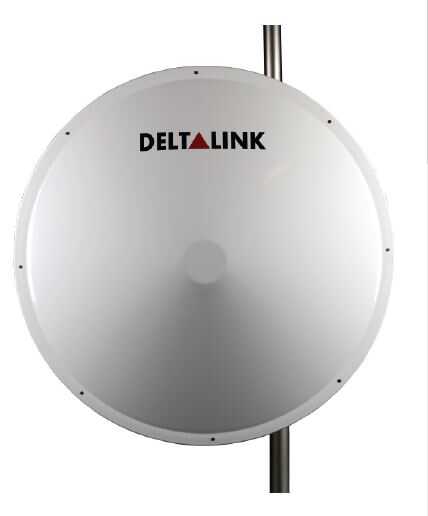

ANT-HP7030N is a dish antenna model specifically designed for long-distance wireless connections (point-to-point / PtP). It is part of Deltalink's professional series.
📶 Frequency Range5.8 – 7.2 GHz
🏆 Gain: 30 dBi
↔ 3 dB Beamwidth (Beamwidth): ~ 5.7°
🔁 VSWR: 1.4 : 1
⚡ Empedans: 50 Ω
💡 Input Power25 W
📏 Diameter / Size: ~ 680 mm
⚖️ Weight (Including Bracket): ~ 5.9 kg
🌬 Wind Load (Operating): ~ 130 km/h
🌀 Wind Load (Survival): ~ 190 km/h
🌡 Operating Temperature: –50 °C … +70 °C
🧱 Assembly SupportMounting of poles with a diameter of 25–60 mm
🧭 Adjustable Pan / Tiltwith features and ease of alignment
🔝 Long-distance signal transmission thanks to high gain
📈 Focusing the signal on the target with a narrow beam width.
Dual polarization (microstructure) with the capability of reducing interference (typically found in antennas of this class)
🌍 PtP connections are ideal for tower-to-tower bridge lines, rural network access.
🏗 Suitable for outdoor conditions, robust structure.
