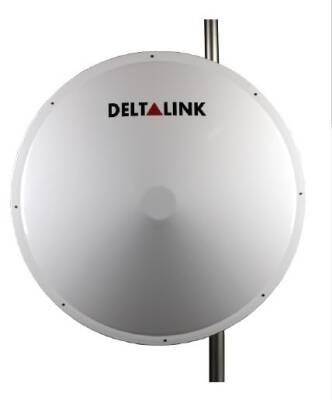

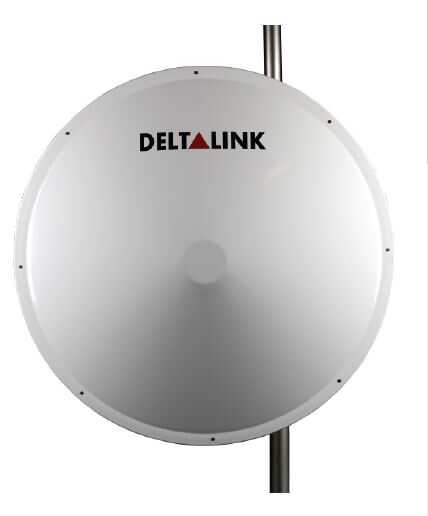

ANT-HP5535N is a parabolic antenna model belonging to the HP Performance Series. It is designed for use in noisy environments and has both low side lobes and low back lobes. Especially,LOS (Line-of-Sight)In scenarios, it is suitable for PTP applications over 80 km.
It is an outdoor antenna designed for PTP, PTMP, and Mesh applications in open areas, also usable in MIMO solutions.
| Frequency Range | 4.800 – 6.100 MHz |
| Kazanç | 35 dBi |
| 3 dB Beamwidth | 3.0° (typical) |
| VSWR | 1.4:1 (typical) |
| Empedans | 50 Ohm |
| Maximum Input Power | 25 W |
| Connector Type | 2 × N-Female |
| Side Lobes | 2 dBi (maximum) |
| Front-to-Back Ratio | 48 dB |
| Cross Polarization | 31 dB (maximum), 34 dB (typical) |
| Port-to-Port Isolation | 32 dB (maximum), 45 dB (typical) |
