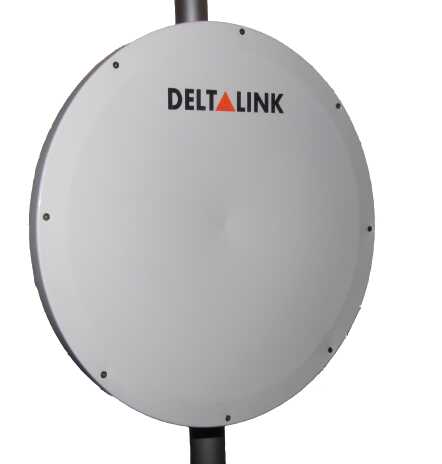

📡 Deltalink ANT-HP5529N — Technical Information
📝 General Introduction
HP Performance Series —ANT-HP5529N, is a high-performance parabolic antenna suitable for operation in noisy environments, featuring very low side lobes and back lobes. It is suitable for MIMO solutions and particularlyPTP applications (>50 km LOS conditions)is designed for.
⚙️ Electrical Characteristics
| | |
|---|
| Frequency Range | 4800 – 6100 MHz |
| Kazanç | 29 dBi |
| 3 dB Beamwidth | ≈ 4.0° (typical) |
| VSWR | 1.4:1 (typical) |
| Empedans | 50 Ohm |
| Maximum Input Power | 25 W |
| Konnektör | 2 × N-Female |
| Side Lobes | ETSI EN 302.326-3 DN1-DN5 |
| Front-to-Back Ratio | 40 dB |
| Cross Polarization | 28 dB (max), 30 dB (typical) |
| Port-to-Port Isolation | 32 dB (max), 45 dB (typical) |
🛠 Mechanical / Physical Properties
| | |
|---|
| Diameter / Size | 680 mm |
| Weight (Including Bracket) | 6.1 kg |
| Wind Load (Operating) | 130 mph |
| Wind Load (Survival) | 190 mph |
| Operating Temperature | -50 °C to +70 °C |

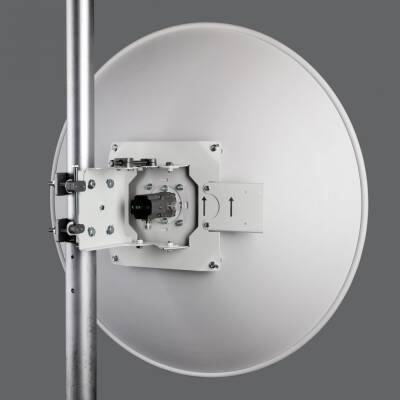

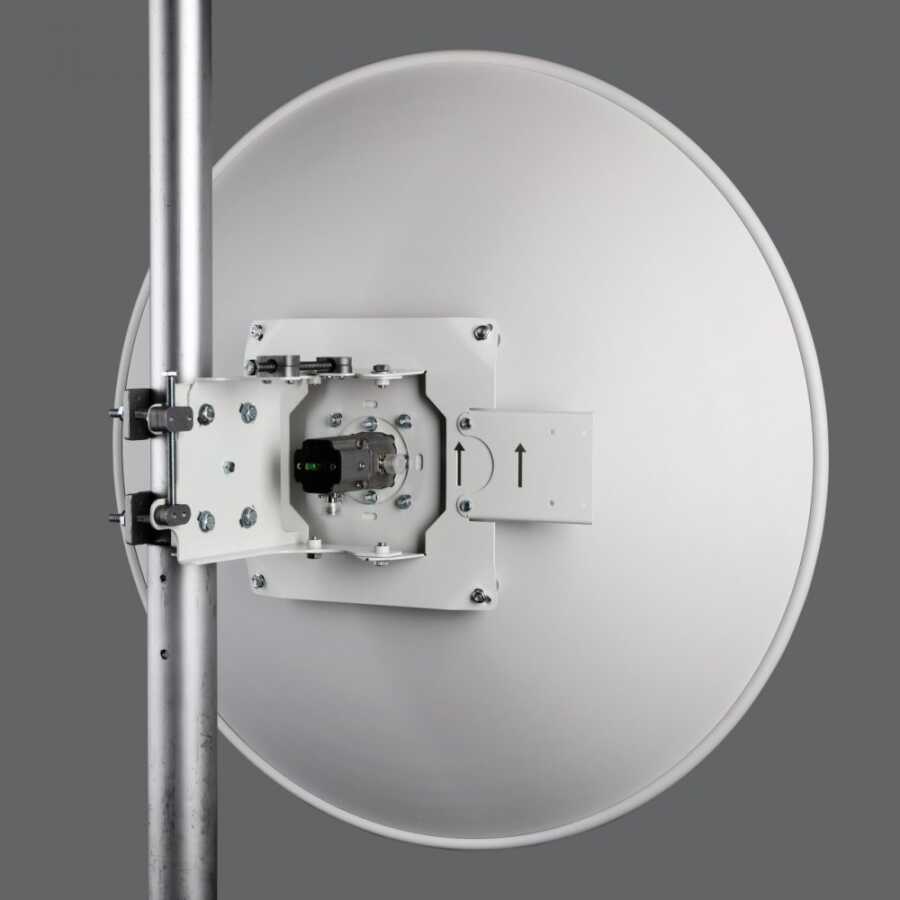

| Montaj/Yapı | Direct mounting support (compatible with 25-60 mm diameter poles) |
| Additional Features | Pan & Tilt alignment feature |
