📡 Deltalink ANT-HP5526N — Technical Information
📝 General Introduction

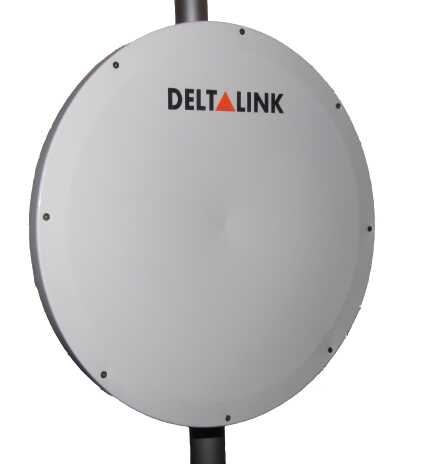

ANT-HP5526N is a high-performance parabolic dish antenna model belonging to the HP Performance Series. It features low side lobe and back lobe characteristics for use in noisy environments. Medium and long distancePTP applications (> 50 km, LOS)It is suitable for. It is designed for PTP, PTMP, and Mesh networks with MIMO support.
⚙️ Electrical Characteristics
| | |
|---|
| Frequency Range | 4800 – 6100 MHz |
| Kazanç | 26 dBi |
| 3 dB Beamwidth | 7.5° (typical) |
| VSWR | 1.4:1 (typical) |
| Empedans | 50 Ohm |
| Maximum Input Power | 25 W |
| Konnektör | 2 × N-Female |
| Side Lobes | ETSI EN 302.326-3 DN1-DN5 |
| Front-to-Back Ratio | 37 dB |
| Cross Polarization (Cross Pol) | 25 dB (maximum), 30 dB (typical) |
| Port-to-Port Isolation | 32 dB (maximum), 45 dB (typical) |
🛠 Mechanical / Physical Properties
| | |
|---|
| Diameter / Size | 480 mm |
| Weight (Including Bracket) | 3.8 kg |
| Wind Load (Operating) | 140 km/h |
| Wind Load (Survival) | 220 mph |
| Operating Temperature | –50 °C to +70 °C |
| Assembly Compatibility | Direct mounting support (compatible with 25 – 60 mm diameter poles) |
| Additional Features | Precise Pan & Tilt alignment support |
