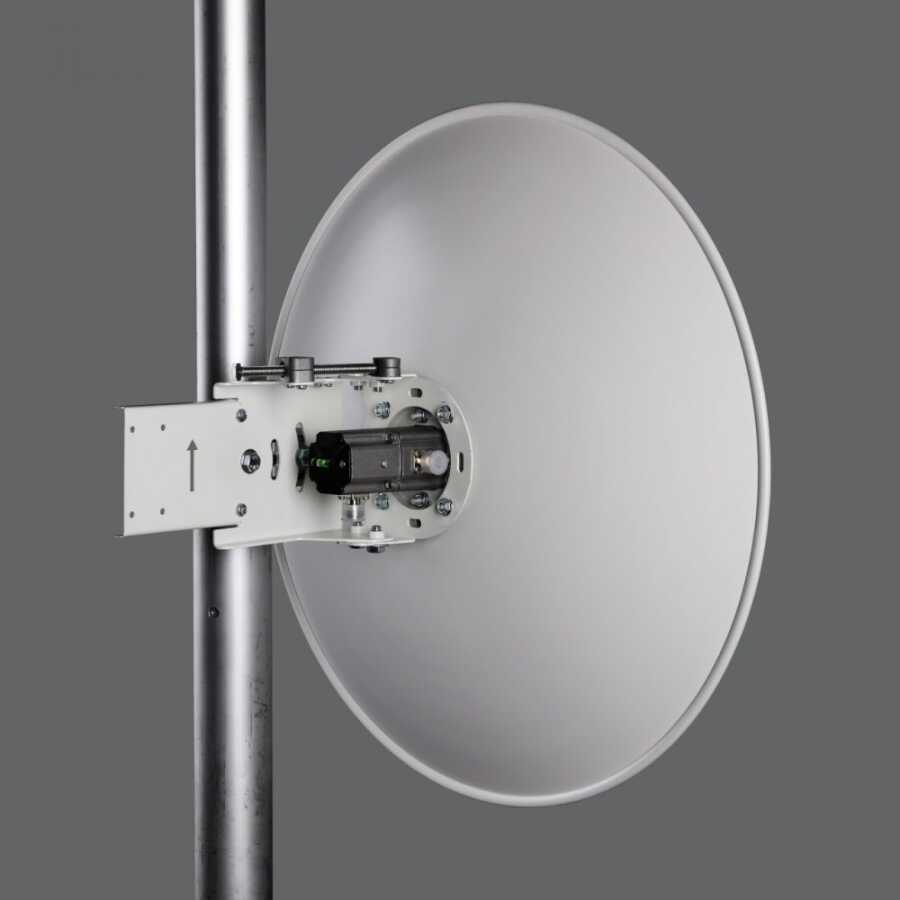

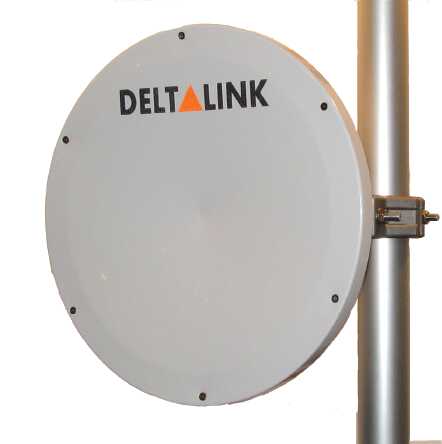

HP Performance Series –ANT-HP5523N”
4.8 – 6.1 GHz frequency range high-performance parabolic antenna
Suitable for use in noisy environments;low side lobe / low back lobedesigned with values
Ideal for PTP, PTMP, and Mesh networks, especially for LOS scenarios over 50 km.
| Frequency Range | 4800 – 6100 MHz |
| Kazanç | 23 dBi |
| 3 dB Beamwidth | 9.0° (typical) |
| VSWR | 1.4:1 (typical) |
| Empedans | 50 Ohm |
| Maximum Input Power | 25 W |
| Konnektör | 2 × N-Female |
| Side Lobes | ETSI EN 302.326-3 DN1-DN5 |
| Front-to-Back Ratio (Back / Front) | 35 dB |
| Cross Polarization (Cross Pol) | 23 dB (maximum), 30 dB (typical) |
| Port-to-Port Isolation | 32 dB (maximum), 45 dB (typical) |
| Diameter / Size | 370 mm |
| Weight (Including Bracket) | 3.3 kg |
| Wind Load (Operating) | 160 km/h |
| Wind Load (Survival) | 230 km/h |
| Operating Temperature | -50 °C to +70 °C |
| Assembly Kit / Style | Suitable for direct mounting, compatible with 25-60 mm diameter poles |
| Additional Feature | Correct pan & tilt alignment feature |
