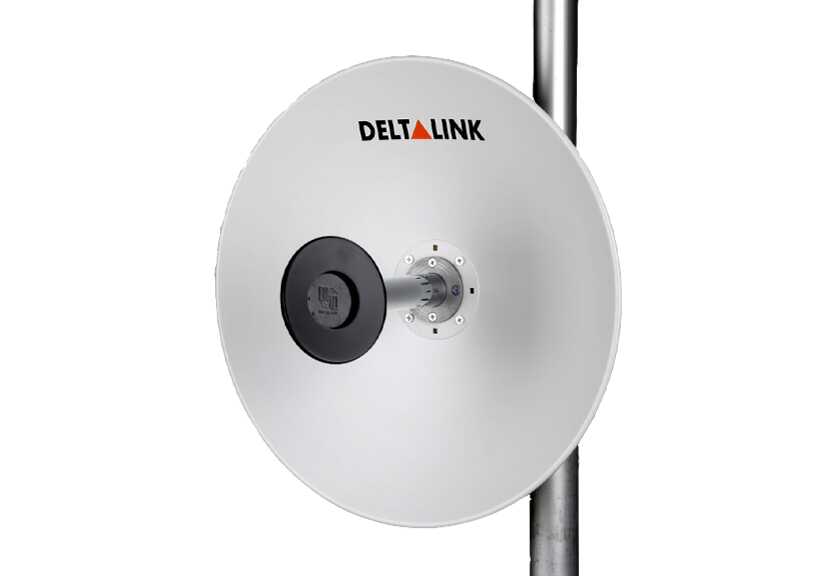

📡 Deltalink ANT-5530X

📝 Overview

ANT-5530X, LOS (Line of Sight)Specially designed for PTP (Point-to-Point) applications over 20 km in situations,long-range MIMO solutionis the antenna.Compatible with Mimosa Brand C5x model.

• Kazanç:30 dBi

• Parabolic design:High-efficiency signal transmission

• Application Areas:Open area usage for PTP, PTMP, and Mesh networks.

• Easy Installation:It does not require any wiring; you can connect your device directly to the antenna.

⚙️ Technical Specifications

📡 Frequency & Signal

• Frequency Range:4800 – 6100 MHz

• Kazanç:30 dBi

• 3dB Beamwidth: 3.5°

• Side Lob:ETSI EN 302.326-3 DN1-DN5

🔄 Polarization & Isolation

• Polarizasyon:Vertical and Horizontal

• Feedback Ratio (Front-to-Back):-36 dB

• Cross Polarization:-39 dB (max), -35 dB (typ)

• Port / Port Isolation:-32 dB (max), -45 dB (typ)

📊 Performance

• VSWR:1.4:1 (typ)

• Wind Load:200 km/h

🛠 Materials & Structure

• Malzeme:Aluminum body, ABS plastic coating

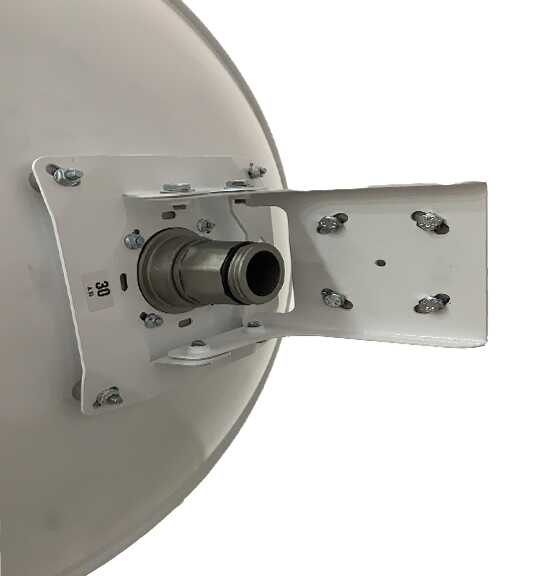

• Montaj:Easy installation, optimized for open space use.

🚀 Usage Scenario

• Open Area PTP Applications:Data transmission up to 20 km.

• PTMP and Mesh Networks:Wide area coverage

• Industrial and Operator Networks:Long-range wireless connections

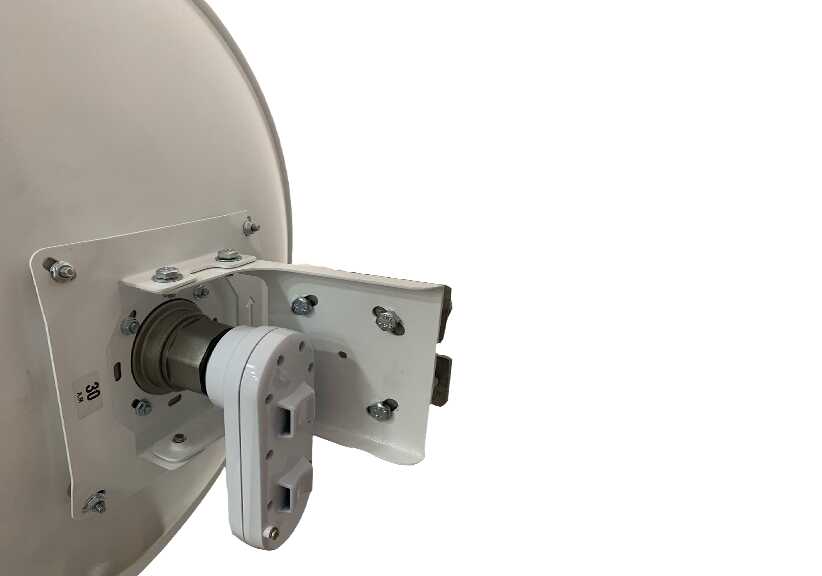

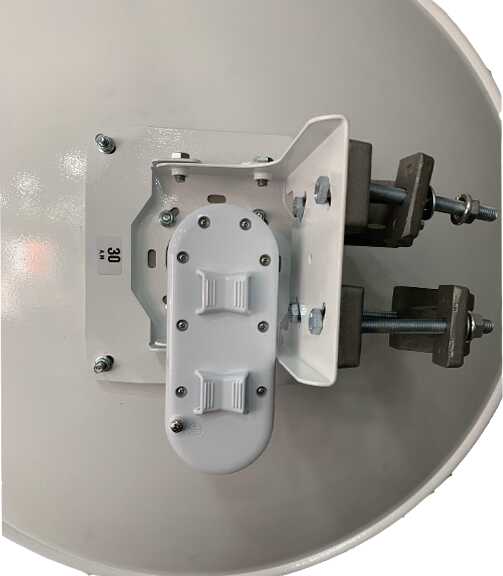

  PRODUCT is compatible with Mimosa Brand C5x model.
