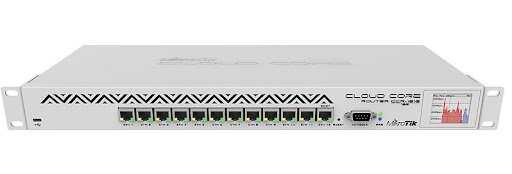

CCR1016-12G

Ürün Kodu : ST00707
26.791,20 TL
Fiyat Alarmı
26.791,20 TL
  • Ürün Açıklaması

    Product specifications

    Details
    Product code CCR1016-12G
    CPU nominal frequency 1.2 GHz
    CPU core count 16
    Size of RAM 2 GB
    Architecture TILE
    10/100/1000 Ethernet ports 12
    Number of USB ports 1
    Power Jack 1
    Supported input voltage 13 V - 28 V
    Voltage Monitor Yes
    CPU temperature monitor Yes
    Dimensions 355x145x44mm
    Operating System RouterOS v6 (64bit)
    Tested ambient temperature -20C .. +60C
    License level 6
    Current Monitor Yes
    CPU TLR4-01680CG-12CE-A3a
    Max Power consumption 48W
    USB slot type microUSB type AB
    Serial port RS232
    Storage type NAND
    Storage size 512 MB

    Included parts

    Ethernet test results

    CCR1016-12G Tile 16 core max possible throughput test
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Bridging none (fast path) 975.2 11842.8 2819.5 11548.7 17857.1 9142.8
    Bridging 25 bridge filter rules 975.2 11842.8 2173.9 8904.3 2282.4 1168.6
    Routing none (fast path) 975.2 11842.8 2819.5 11548.7 16266 8328.2
    Routing 25 simple queues 975.2 11842.8 2819.5 11548.7 2932.9 1501.6
    Routing 25 ip filter rules 975.2 11842.8 1269 5197.8 1284.5 657.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
