vSOL V1600G2-R
vSOL V1600G2-R 16-Port GPON OLT
Overview:

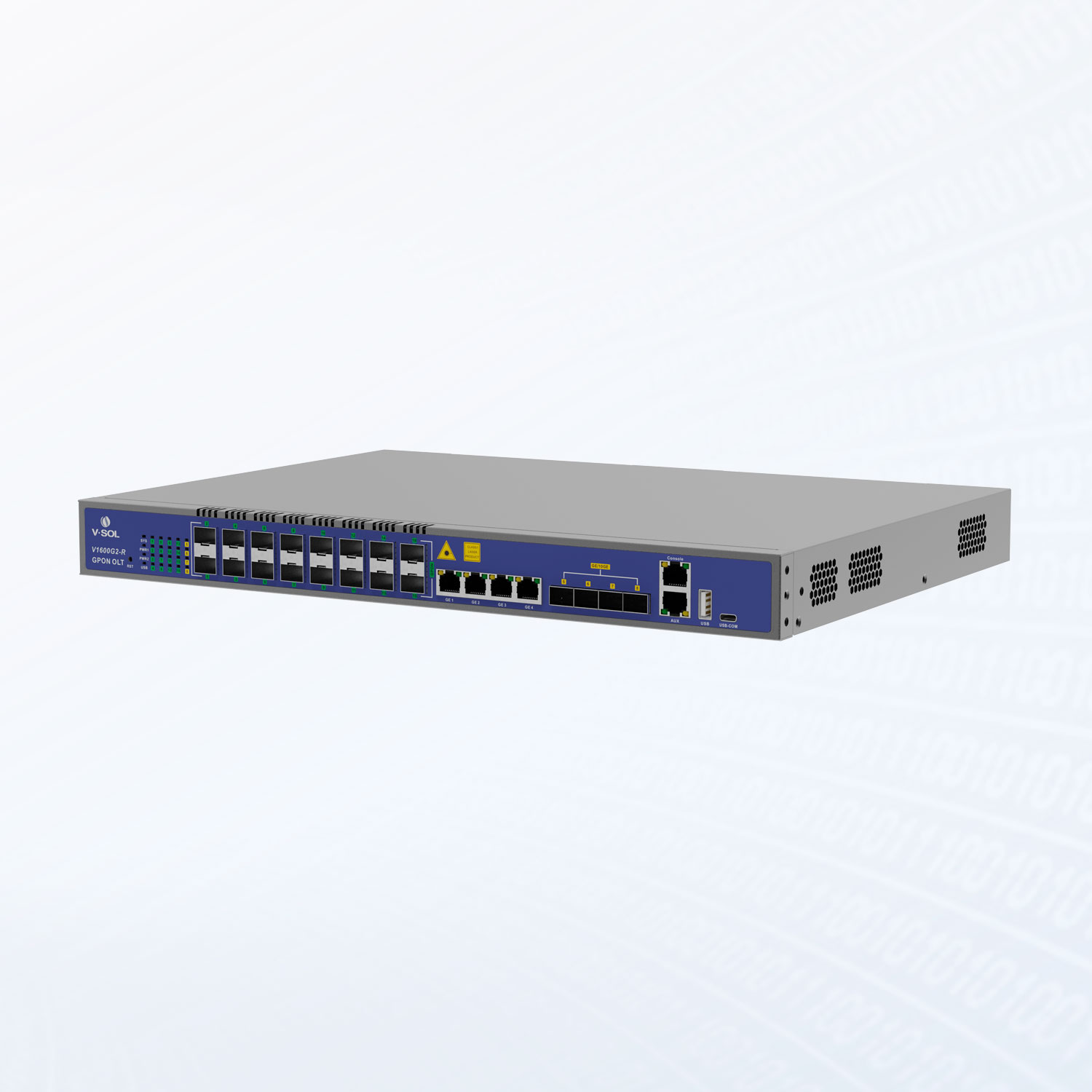

The vSOL V1600G2-R is a high-density GPON OLT housed in a standard 1U 19-inch chassis, offering 16 GPON ports alongside 8 RJ45 (GE) and 4 SFP (GE)/SFP+ (10GE) uplink interfaces. It delivers line-speed forwarding with 240 Gbps backplane bandwidth and a 124.992 Mpps port forwarding rate. Designed for high-capacity FTTx and enterprise access deployments, it supports split ratios up to 1:128, hot-swappable power supplies, and carrier-grade protection features.
Description:
The vSOL V1600G2-R is a Layer 3-capable OLT platform engineered to handle dense subscriber traffic in GPON access networks. Through its 16 GPON ports, the device supports subscriber connectivity at split ratios up to 1:128, enabling large-scale FTTx rollouts from a single chassis. GPON interfaces operate over 9/125 μm single-mode fiber (SMF) with SC/UPC connectors at transmission distances up to 20 km, communicating at upstream 1.244 Gbps and downstream 2.488 Gbps with TX 1490 nm / RX 1310 nm wavelengths. Supported PON module levels include Class B+, C, C+, C++, C+++, and C++++, accommodating diverse optical budget requirements.

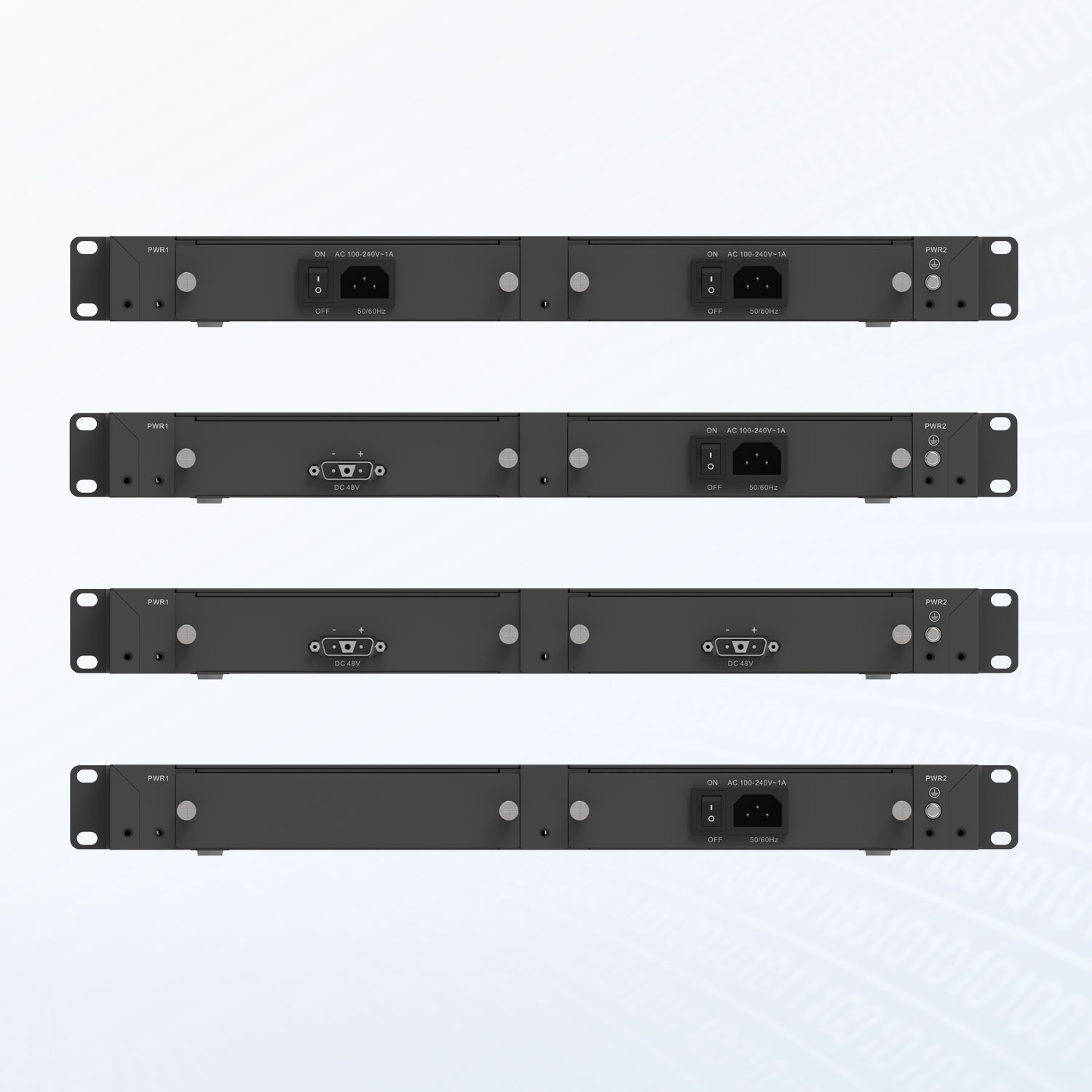

On the uplink side, the device provides 8 RJ45 (GE) and 4 SFP (GE)/SFP+ (10GE) ports, delivering line-speed packet forwarding with 240 Gbps backplane bandwidth and 124.992 Mpps forwarding capacity. Management interfaces include 1× 10/100/1000BASE-T out-band port, 1× CONSOLE port, 1× USB 2.0, and 1× Type-C USB (for console). Management is performed via EMS, WEB, SNMP, Telnet, and CLI modes. Power options include AC (100–240 V operating range, rated 110 V/220 V) and DC (-36 to -75 V operating range, rated -48 V/-60 V), with a hot-swappable power supply design for uninterrupted operation. BBU and Snap power support make it suitable for rack sharing with wireless base station infrastructure. The compact 1U 19-inch chassis design saves space while speeding up transport and installation.
Key Highlights:
- 16 GPON ports with split ratio support up to 1:128
- 8× RJ45 (GE) and 4× SFP (GE)/SFP+ (10GE) uplink interfaces
- 240 Gbps backplane bandwidth and 124.992 Mpps line-speed forwarding
- Hot-swappable AC/DC power supply options (AC 100–240 V; DC -36 to -75 V)
- PON module level support: Class B+, C, C+, C++, C+++, C++++
- 20 km transmission distance, SC/UPC connector, 9/125 μm SMF compatibility
- Layer 3 routing and carrier-grade protection
- BBU/Snap power support for base station rack sharing
- Management modes: EMS, WEB, SNMP, Telnet, CLI
- Compact 1U 19-inch standard chassis
Technical Specifications:
| Parameter | Value |
|---|---|
| Product Model | vSOL V1600G2-R |
| Chassis Type | 1U 19-inch standard box |
| GPON Port Count | 16 |
| GPON Physical Interface | SFP slot |
| Max Splitting Ratio | 1:128 |
| Uplink Ports | 8× RJ45 (GE), 4× SFP (GE)/SFP+ (10GE) |
| Backplane Bandwidth | 240 Gbps |
| Port Forwarding Rate | 124.992 Mpps |
| GPON Transmission Distance | 20 km |
| GPON Speeds | Upstream 1.244 Gbps, Downstream 2.488 Gbps |
| Wavelength | TX 1490 nm, RX 1310 nm |
| Fiber Type and Connector | 9/125 μm SMF, SC/UPC |
| Supported PON Module Levels | Class B+, C, C+, C++, C+++, C++++ |
| Management Ports | 1× 10/100/1000BASE-T out-band, 1× CONSOLE, 1× USB 2.0, 1× Type-C USB (console) |
| Management Modes | EMS, WEB, SNMP, Telnet, CLI |
| AC Power | Operating 100–240 V, Rated 110 V/220 V |
| DC Power | Operating -36 to -75 V, Rated -48 V/-60 V |
| Power Supply Feature | Hot-swappable |
| Additional Power Support | BBU / Snap power support |
