Ubiquiti UniFi Access Point U6 Lite (U6-Lite)
Ubiquiti U6-Lite UniFi WiFi 6 Access Point
Overview:
The U6-Lite is a compact, ceiling-mounted WiFi 6 (802.11ax) access point designed for smaller offices and less dense enterprise environments. It offers 4 spatial streams, WiFi 6 on the 5 GHz band, and WiFi 4 on the 2.4 GHz band. It features a 1 GbE RJ45 network interface and a Bluetooth management interface, and is powered by 44–57V DC PoE.
Description:
The Ubiquiti U6-Lite delivers enterprise-grade wireless connectivity as part of the UniFi ecosystem. It supports the 802.11ax (WiFi 6) standard on the 5 GHz band while utilizing 802.11n (WiFi 4) technology on the 2.4 GHz band. With 4 spatial streams, it achieves data rates from 7.3 Mbps to 1.2 Gbps. The device connects to the network via (1) Gigabit Ethernet RJ45 port and is powered through the same port with 44–57V DC PoE. Management is performed via the UniFi Controller software through Ethernet and Bluetooth interfaces. It is designed for ceiling mounting and provides efficient wireless coverage in small offices.

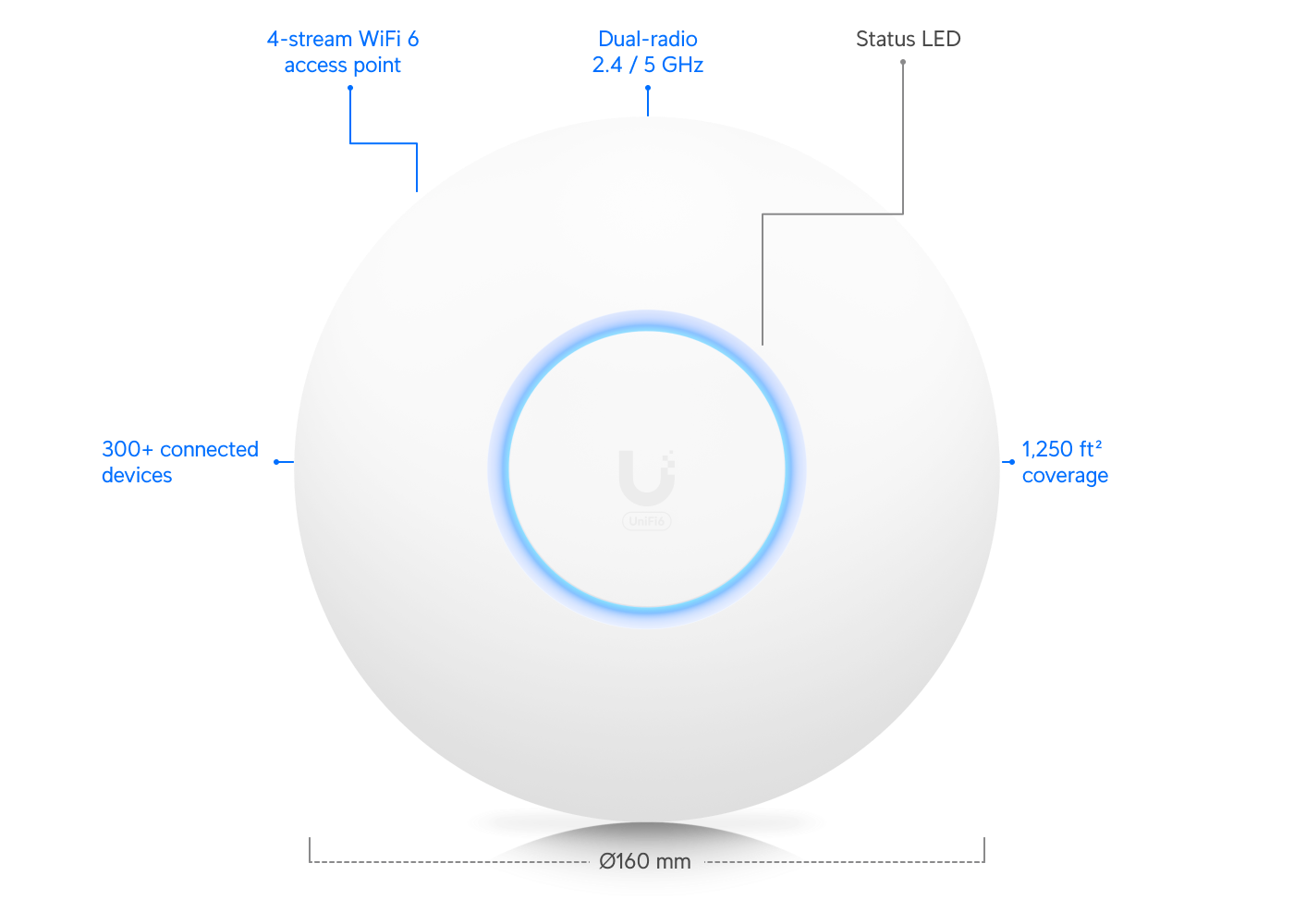

Key Highlights:
- WiFi 6 (802.11ax) support (on 5 GHz band)
- 4 spatial streams with 7.3 Mbps – 1.2 Gbps data rate

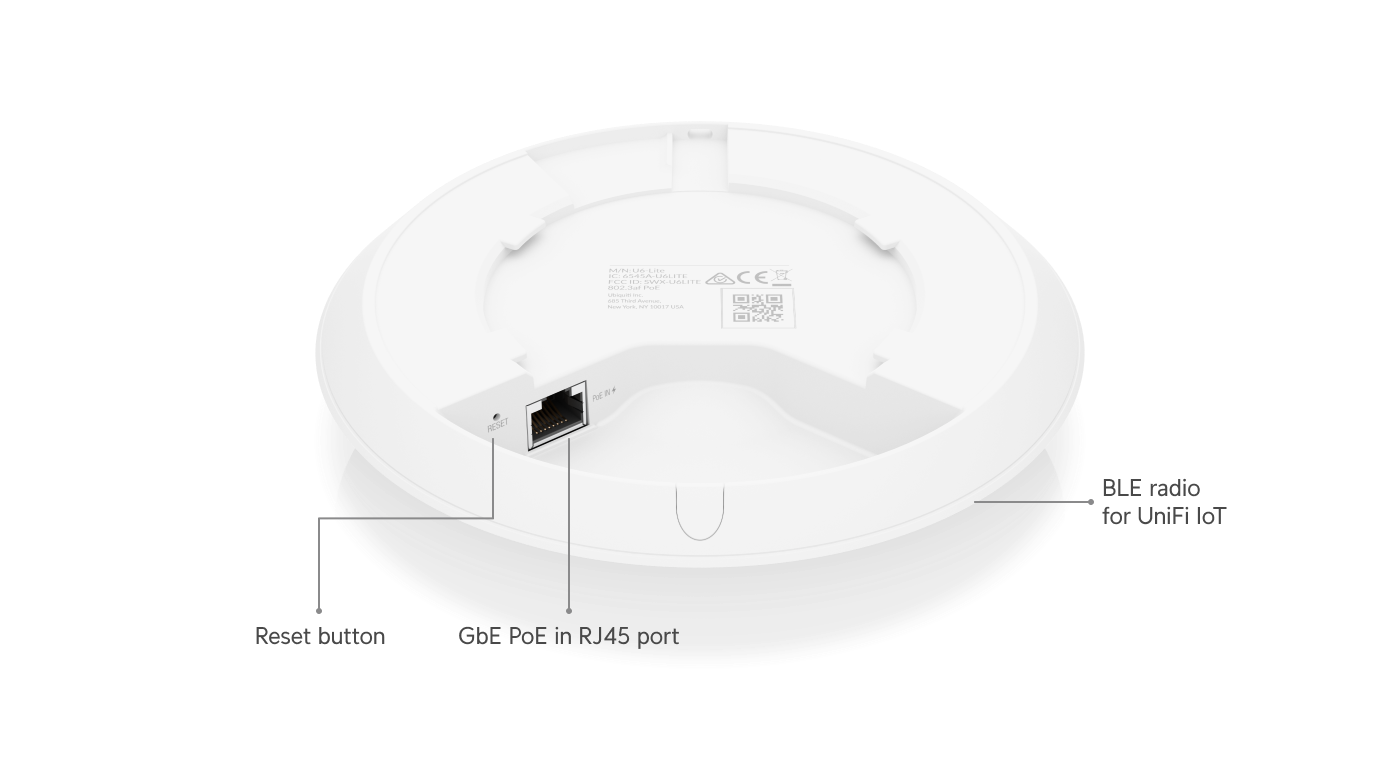

- 1 Gigabit Ethernet RJ45 network interface
- Ethernet and Bluetooth management interface
- Powered by 44–57V DC PoE

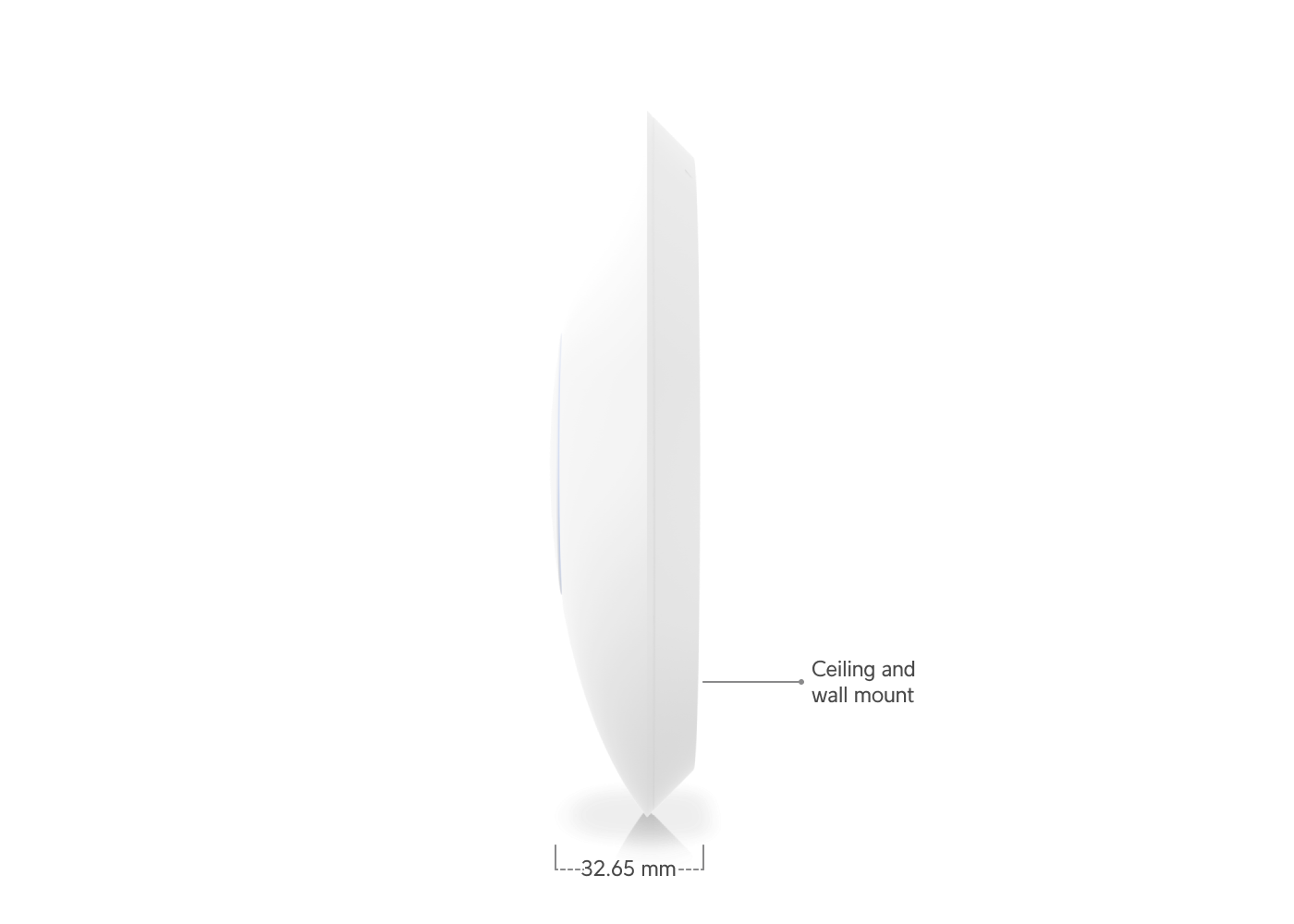

- Compact ceiling-mountable design
- Ideal for smaller offices
Technical Specifications:
| Parameter | Value |
|---|---|
| Product Model | U6-Lite |
| Wireless Standard | 802.11ax (WiFi 6) – 5 GHz; 802.11n (WiFi 4) – 2.4 GHz |
| Spatial Streams | 4 |
| Data Rate Range | 7.3 Mbps – 1.2 Gbps |
| Network Interface | (1) GbE RJ45 port |
| Management Interface | Ethernet, Bluetooth |
| Power Input | 44–57V DC (PoE) |
| Mounting Type | Ceiling mount |
| Application | Smaller offices |
