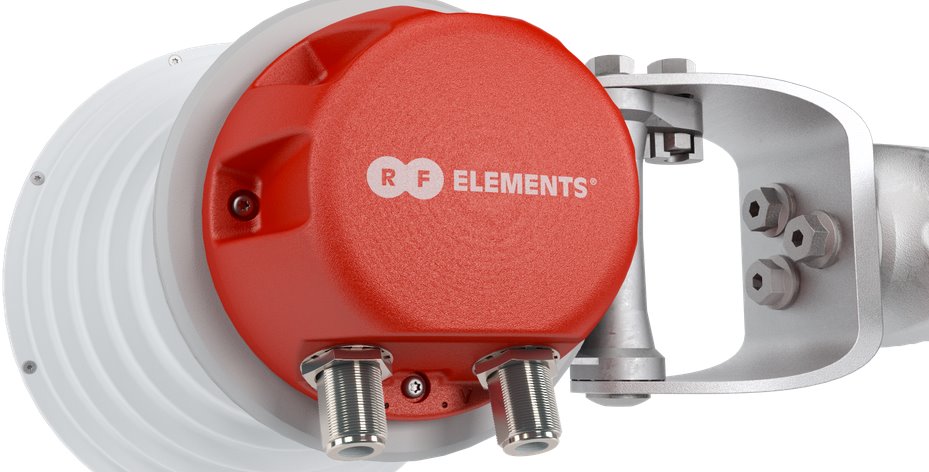

RF elements SH-CC-5-70 Carrier Class Symmetrical Horn Antenna (5 GHz, 12 dBi, 70°)

Overview:

The RF elements SH-CC-5-70 is a carrier-class horn antenna operating in the 5 GHz band, offering 12 dBi gain and a 70° symmetrical beamwidth. Its TwistPort™ connector enables virtually lossless RF connection and tool-free mounting. With its compact design and excellent side lobe suppression, it reduces interference in dense wireless networks.

Description:

The SH-CC-5-70 is part of RF elements' Symmetrical Horn Carrier Class series. This antenna provides a symmetrical radiation pattern with identical beamwidths in both vertical and horizontal planes. It delivers 12 dBi gain in the 5 GHz frequency band and creates wide coverage with a 70° beamwidth. The horn antenna design naturally suppresses side lobes, preventing unwanted signal collection and improving real-world SNR. The TwistPort™ connector is a proprietary waveguide connector that serves as both an RF connector and a mechanical mount, enabling tool-free installation and excellent signal transfer. The antenna is built with stainless steel hardware and corrosion-resistant materials. It is chosen by over 10,000 service providers worldwide.

Key Highlights:

• 12 dBi gain in the 5 GHz band
• 70° symmetrical beamwidth (identical vertical and horizontal patterns)
• TwistPort™ lossless waveguide connector
• Tool-free mounting and quick installation
• Excellent side lobe suppression for interference rejection
• Compact and lightweight design
• Stainless steel hardware, corrosion-resistant construction
• Carrier-class durability

Technical Specifications:
