MikroTik hAP lite TC 2.4GHz Router (RB941-2nD-TC)
MikroTik RB941-2nD-TC hAP lite Wireless Access Point
Overview: The MikroTik hAP lite (RB941-2nD-TC) is an ideal low-cost wireless access point for apartments, houses, or offices, featuring a 650 MHz CPU, 32 MB RAM, and dual-chain 2.4 GHz wireless. It comes with a RouterOS L4 license and is powered via USB.
Description: The MikroTik hAP lite offers comprehensive network management thanks to its powerful hardware and RouterOS operating system despite its compact size. Its dual-chain 2.4 GHz wireless radio achieves data rates up to 300 Mbit/s and supports 802.11b/g/n standards. It provides wired connectivity with four Fast Ethernet ports. The device is powered via MicroUSB input at 5V and consumes a maximum of 3.5W. It operates silently with passive cooling. The button on the device can trigger WPS and switch the device to cAP mode with a single push, allowing it to join a CAPsMAN centrally managed network. The RouterOS L4 license includes advanced features such as bandwidth shaping, firewall, and user access control. The device comes ready to use with a preinstalled and licensed operating system and includes free software updates for the life of the product or a minimum of 5 years from the date of purchase. A 5V 1A power adapter is included in the box.
Key Highlights:
- 650 MHz QCA9533 CPU and 32 MB RAM
- Dual-chain 2.4 GHz wireless (up to 300 Mbit/s, 802.11b/g/n)

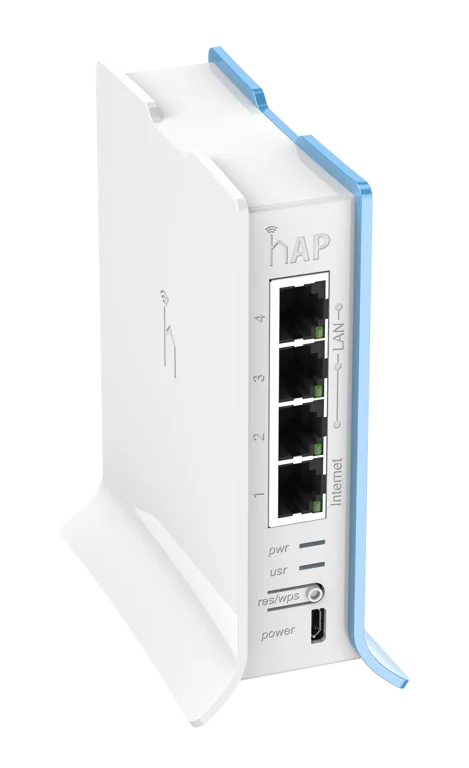

- 4x 10/100 Ethernet ports
- RouterOS L4 license
- MicroUSB 5V power input, maximum 3.5W consumption
- WPS button and one-touch cAP mode switching
- Passive cooling, silent operation
- Operating temperature -20°C to 60°C
- FCC and IC certifications
- 5V 1A power adapter included
Technical Specifications:
| Parameter | Value |
|---|---|
| Product Code | RB941-2nD |
| Architecture | SMIPS |
| CPU | QCA9533, 1 core, 650 MHz |
| Switch Chip Model | QCA9533-BL3A |
| RouterOS License | 4 |
| Operating System | RouterOS |
| RAM | 32 MB |
| Storage | 16 MB FLASH |
| MTBF | Approximately 100,000 hours at 25°C |
| Tested Ambient Temperature | -20°C to 60°C |
| Wireless | 2.4 GHz, 802.11b/g/n, Wi-Fi 4 |
| Max Data Rate | 300 Mbit/s |
| Number of Chains | 2 |
| Antenna Gain | 1.5 dBi for 2.4 GHz |
| Wireless Chip Model | QCA9533 |
| Ethernet Ports | 4x 10/100 |
| Power Input | MicroUSB, 5 V |
| Number of DC Inputs | 1 (MicroUSB) |
| Max Power Consumption | 3.5 W |
| Cooling | Passive |
| Certification | FCC, IC |
| Included Parts | 5V 1A power adapter |
| 2.4 GHz Transmit Power (1MBit/s) | 22 dBm |
| 2.4 GHz Receive Sensitivity (1MBit/s) | -96 dBm |
| 2.4 GHz Transmit Power (11MBit/s) | 22 dBm |
| 2.4 GHz Receive Sensitivity (11MBit/s) | -89 dBm |
| 2.4 GHz Transmit Power (6MBit/s) | 20 dBm |
| 2.4 GHz Receive Sensitivity (6MBit/s) | -93 dBm |
| 2.4 GHz Transmit Power (54MBit/s) | 18 dBm |
| 2.4 GHz Receive Sensitivity (54MBit/s) | -74 dBm |
| 2.4 GHz Transmit Power (MCS0) | 20 dBm |
| 2.4 GHz Receive Sensitivity (MCS0) | -93 dBm |
| 2.4 GHz Transmit Power (MCS7) | 16 dBm |
| 2.4 GHz Receive Sensitivity (MCS7) | -71 dBm |
