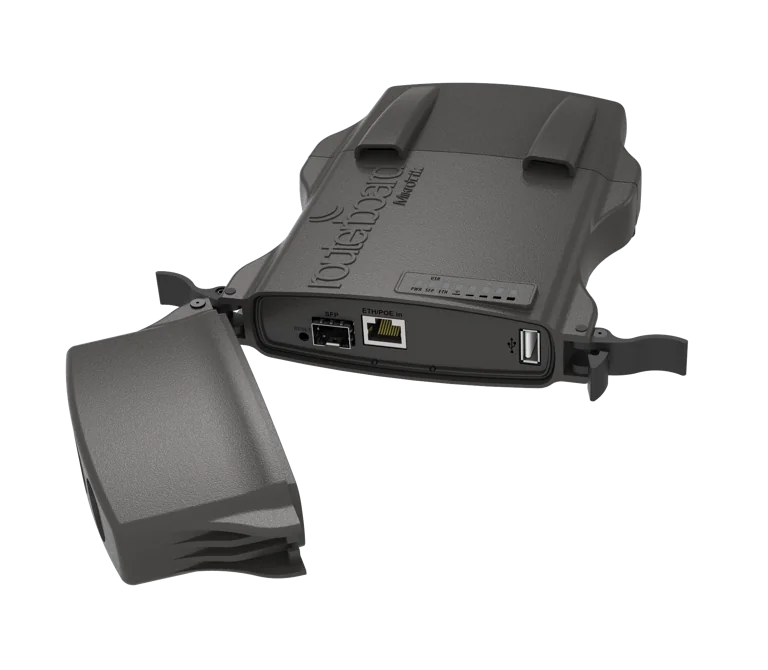

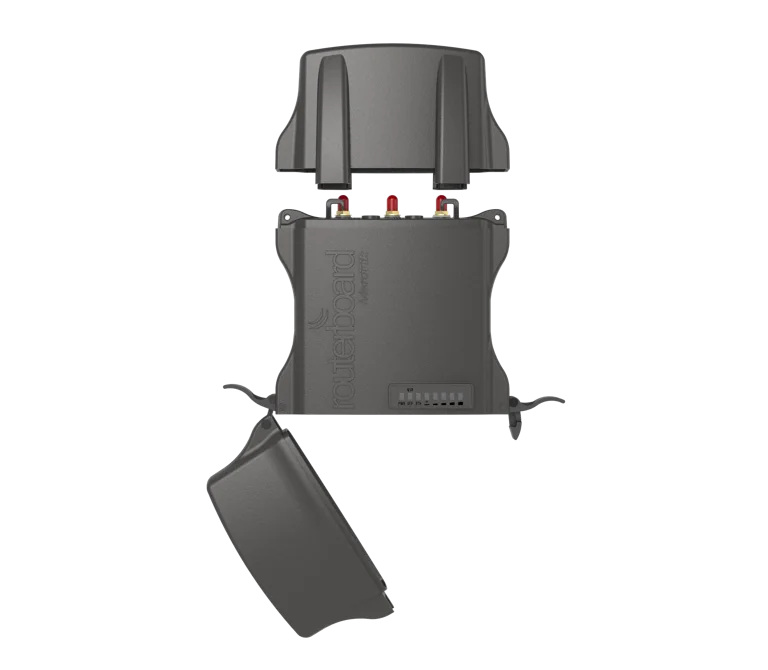

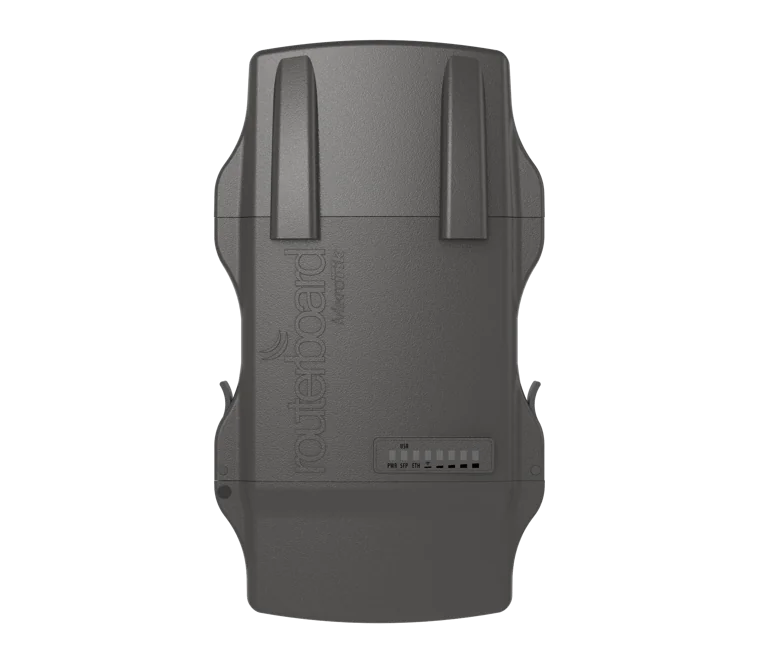

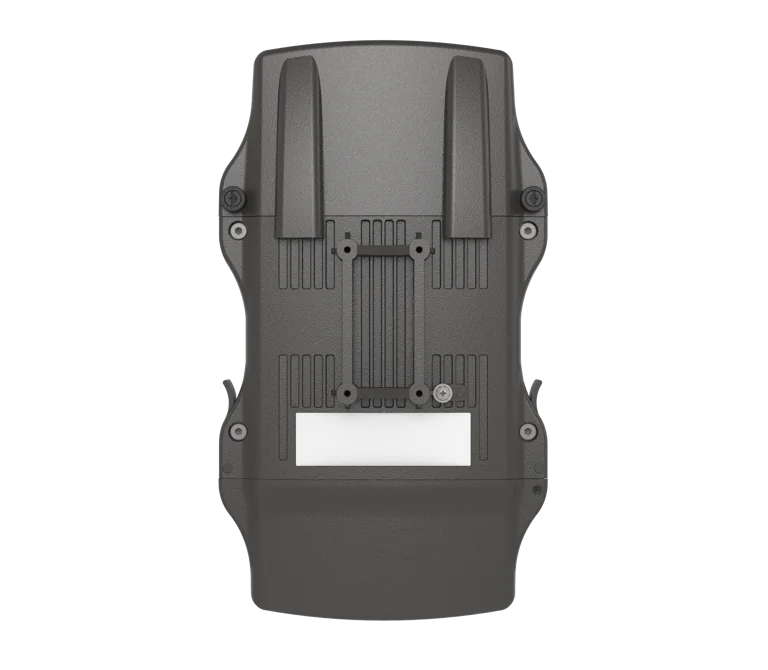

MikroTik NetMetal 5 AC Gigabit Router (RB922UAGS-5HPacD-NM)
MikroTik RB922UAGS-5HPacD-NM NetMetal 5
Overview: The MikroTik NetMetal 5 is a high-power 5 GHz wireless access point/backbone/CPE device supporting 802.11a/n/ac standards with a 2x2 dual-chain configuration. Housed in a waterproof IP54 metal enclosure, it features a Gigabit Ethernet port, SFP cage, USB port, and miniPCI-e slot, making it a professional solution for harsh outdoor environments.
Description: The NetMetal 5 features a solid aluminum enclosure that serves as a reliable heat sink for its high-output radio while ensuring durability. The device is equipped with a 720 MHz QCA9557 CPU, 128 MB RAM, and 128 MB NAND storage. It comes with a RouterOS L4 license and is ready to use out of the box. It includes one Gigabit Ethernet port, one SFP cage, one USB Type-A port, and one miniPCI-e slot. Additionally, there is one Mini SIM slot for a 3G/4G modem or an additional wireless card. On the wireless side, it utilizes 802.11ac technology with a 2x2 dual-chain configuration and QCA9882 chipset, delivering data rates up to 867 Mbit/s in the 5 GHz band. Two RP-SMA female (outside thread) connectors are provided for external antennas. The device is powered by passive PoE with an input voltage range of 8-30 V and consumes a maximum of 19 W. It operates within a tested ambient temperature range of -40°C to 70°C. It holds FCC and IC certifications. The international model (RB922UAGS-5HPacD-NM) supports the 5150-5875 MHz frequency range; specific frequencies may be limited by country regulations.
Key Highlights:
- 5 GHz 802.11a/n/ac compliant, 2x2 dual-chain wireless access
- Data rates up to 867 Mbit/s
- 720 MHz QCA9557 CPU, 128 MB RAM, 128 MB NAND storage
- 1 Gigabit Ethernet port, 1 SFP cage, 1 USB Type-A port
- 1 miniPCI-e slot and 1 Mini SIM slot (for 3G/4G or additional wireless card)
- IP54 waterproof metal enclosure, passive cooling
- 8-30 V passive PoE support, maximum power consumption 19 W
- Operating temperature -40°C to 70°C
- RouterOS L4 license included
- FCC and IC certified
Technical Specifications:
| Parameter | Value |
|---|---|
| Product code | RB922UAGS-5HPacD-NM |
| Architecture | MIPSBE |
| CPU | QCA9557, 1 core, 720 MHz |
| Dimensions | 143x247x48 mm (PCB) |
| RouterOS license | 4 |
| Operating System | RouterOS |
| RAM | 128 MB |
| Storage | 128 MB NAND |
| MTBF | Approximately 200,000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 19 W |
| PoE | Passive PoE |
| PoE input voltage | 8-30 V |
| Cooling type | Passive |
| Wireless | 5 GHz |
| Max data rate | 867 Mbit/s |
| Wireless chains | 2 |
| Wireless standards | 802.11a/n/ac |
| Wireless chip model | QCA9882 |
| Wireless generation | Wi-Fi 5 |
| Ethernet ports | 1x 10/100/1000 |
| SFP ports | 1 (DDMI supported) |
| SIM slots | 1 (Mini SIM) |
| MiniPCI-e slots | 1 |
| USB ports | 1 (USB Type-A, max 1 A) |
| USB Power Reset | Yes |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| Beeper | Yes |
| IP rating | IP54 |
| Certifications | FCC, IC |
| Frequency range (international) | 5150-5875 MHz |
| 5 GHz transmit power (6MBit/s) | 31 dBm |
| 5 GHz receive sensitivity (6MBit/s) | -96 dBm |
| 5 GHz transmit power (54MBit/s) | 27 dBm |
| 5 GHz receive sensitivity (54MBit/s) | -81 dBm |
| 5 GHz transmit power (MCS0) | 30 dBm |
| 5 GHz receive sensitivity (MCS0) | -96 dBm |
| 5 GHz transmit power (MCS7) | 27 dBm |
| 5 GHz receive sensitivity (MCS7) | -77 dBm |
| 5 GHz transmit power (MCS9) | 22 dBm |
| 5 GHz receive sensitivity (MCS9) | -72 dBm |
| Included parts | 24V 1.2A power adapter, K-25 screw kit, Gigabit PoE injector, metal ring (one), DIN mount (K-27) |
