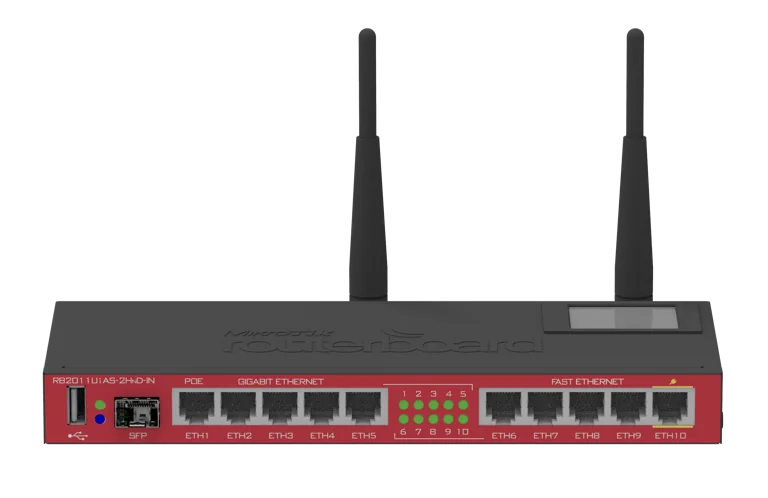

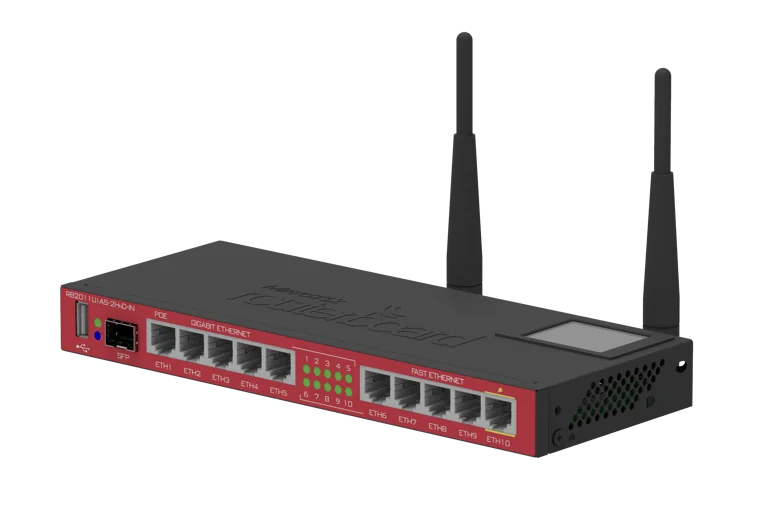

MikroTik RB2011UiAS-2HnD-IN Gigabit Router (RB2011UiAS-2HnD-IN)
MikroTik RB2011UiAS-2HnD-IN
Overview:
The MikroTik RB2011UiAS-2HnD-IN is a multi-port wireless router featuring a 600 MHz MIPSBE processor, 128 MB RAM, and RouterOS L5 license. It includes 5 Gigabit Ethernet ports, 5 Fast Ethernet ports, an SFP cage, USB port, RJ45 serial console, and LCD panel. It offers a 2.4 GHz 802.11b/g/n dual-chain wireless access point. It comes with a desktop case, power adapter, and two 4 dBi Omni antennas.
Description:
The RB2011UiAS-2HnD-IN is part of MikroTik's low-cost multi-port device series. It is equipped with an Atheros AR9344 600 MHz 74K MIPS network processor and 128 MB RAM. It provides five Gigabit LAN ports, five Fast Ethernet LAN ports, and one SFP cage (SFP module not included). Additionally, it features a powerful dual-chain 2.4 GHz (2312-2732 MHz depending on country regulations) 802.11b/g/n wireless access point, RJ45 serial port, USB port, and RouterOS L5 license. It comes with a desktop case, power supply, two 4 dBi Omni antennas, and LCD panel. The last port (ETH10) has passive PoE output, allowing power to be supplied to another device via a regular Ethernet cable. The device comes with RouterOS preinstalled and licensed; no separate purchase is necessary. It includes free software updates for the life of the product or a minimum of 5 years from the date of purchase. Tested and recommended for use with MikroTik SFP modules (S-85DLC05D, S-31DLC20D, S-35/53LC20D) (not included). A wall mount kit (RBWMK) for network closets is available as an optional accessory.
Key Highlights:
- 600 MHz Atheros AR9344 MIPSBE processor and 128 MB RAM
- 5x Gigabit Ethernet and 5x Fast Ethernet ports
- 1x SFP cage (SFP module not included)
- 2.4 GHz 802.11b/g/n dual-chain wireless access point (up to 300 Mbit/s)
- Two 4 dBi Omni antennas
- RJ45 serial console port and 1x USB type A port
- Passive PoE output on ETH10 (510 mA current limit)
- LCD panel, PCB temperature monitor, voltage monitor, and beeper
- RouterOS L5 license and free software updates for life (minimum 5 years)
- Desktop case, 24V 1.2A power adapter, and two 4 dBi Omni antennas included
Technical Specifications:
| Parameter | Value |
|---|---|
| Product code | RB2011UiAS-2HnD-IN |
| Architecture | MIPSBE |
| CPU | AR9344, 1 core, 600 MHz |
| Switch chip model | AR8327 |
| RAM | 128 MB |
| Storage | 128 MB NAND |
| Operating system | RouterOS, L5 license |
| Wireless | 2.4 GHz, 802.11b/g/n, 2 chains, up to 300 Mbit/s |
| Wireless chip model | AR9344 |
| Antenna gain | 4 dBi (2.4 GHz) |
| Ethernet ports | 5x 10/100 Mbps + 5x 10/100/1000 Mbps |
| SFP cage | 1, DDMI supported |
| Serial console | 1x RJ45 |
| USB | 1x USB type A, max 1 A |
| DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input voltage | 8-30 V |
| PoE in | Passive PoE, 8-30 V |
| PoE out | Passive PoE on ETH10, 510 mA current limit |
| Max power consumption | 11 W |
| Cooling type | Passive |
| Dimensions | 214 mm x 86 mm (PCB) |
| Operating temperature | -40°C to 60°C |
| MTBF | Approximately 200,000 hours at 25°C |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
| LCD panel | Yes |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| Beeper | Yes |
| Included parts | 24V 1.2A power adapter, two 4 dBi Omni antennas, desktop case |
