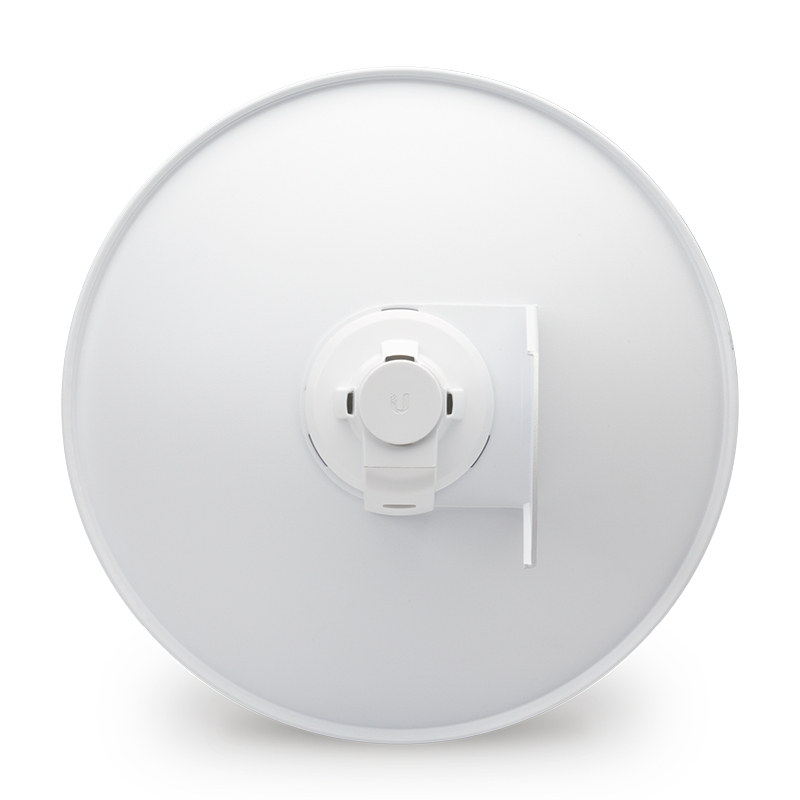

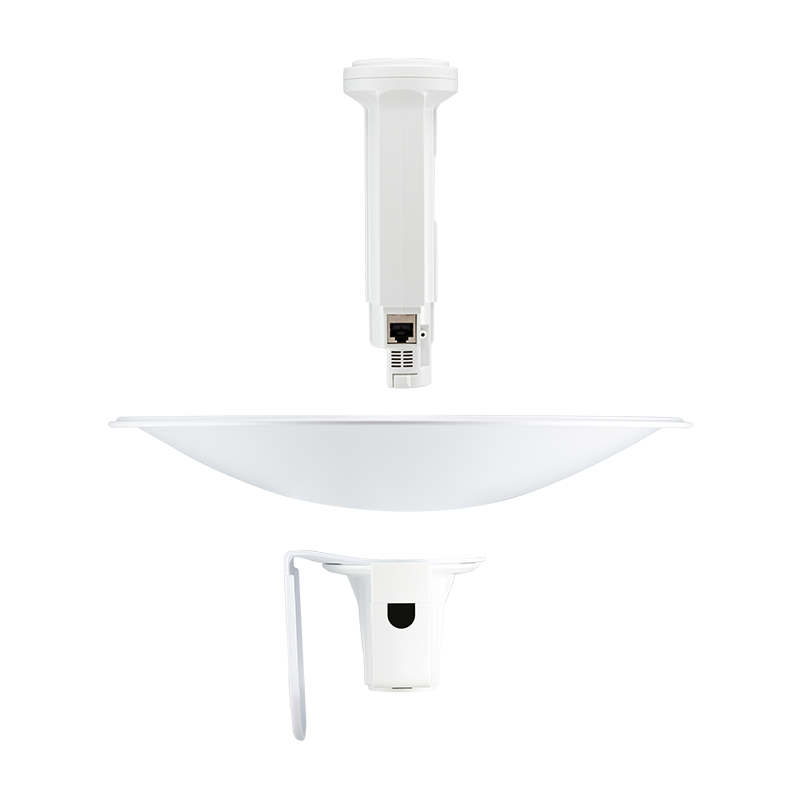

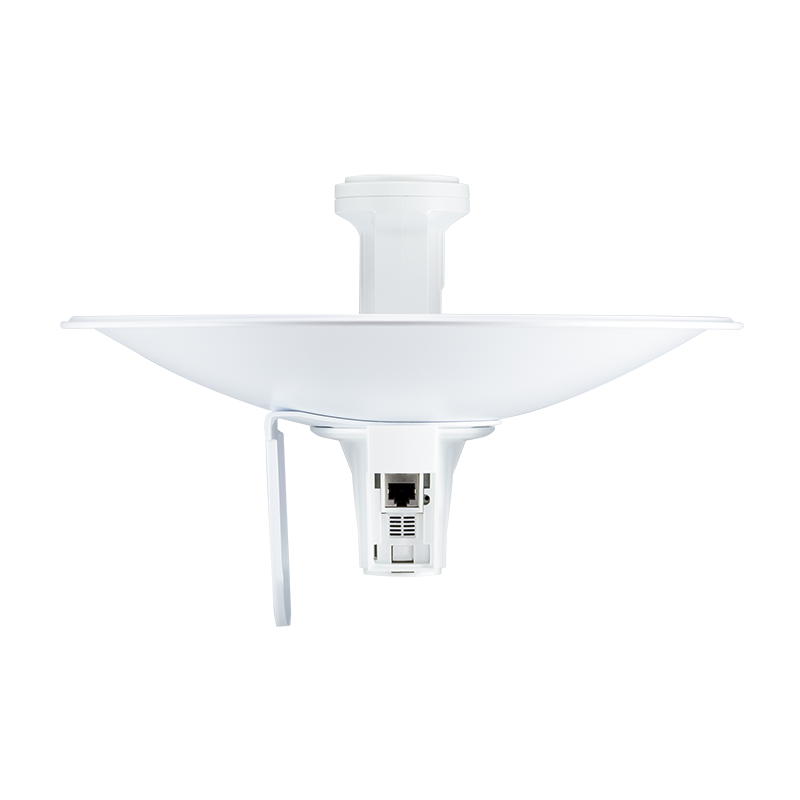

Ubiquiti airMAX PowerBeam M5 300 (PBE-M5-300)
Ubiquiti airMAX PowerBeam M5 300 ISO (PBE-M5-300-ISO)

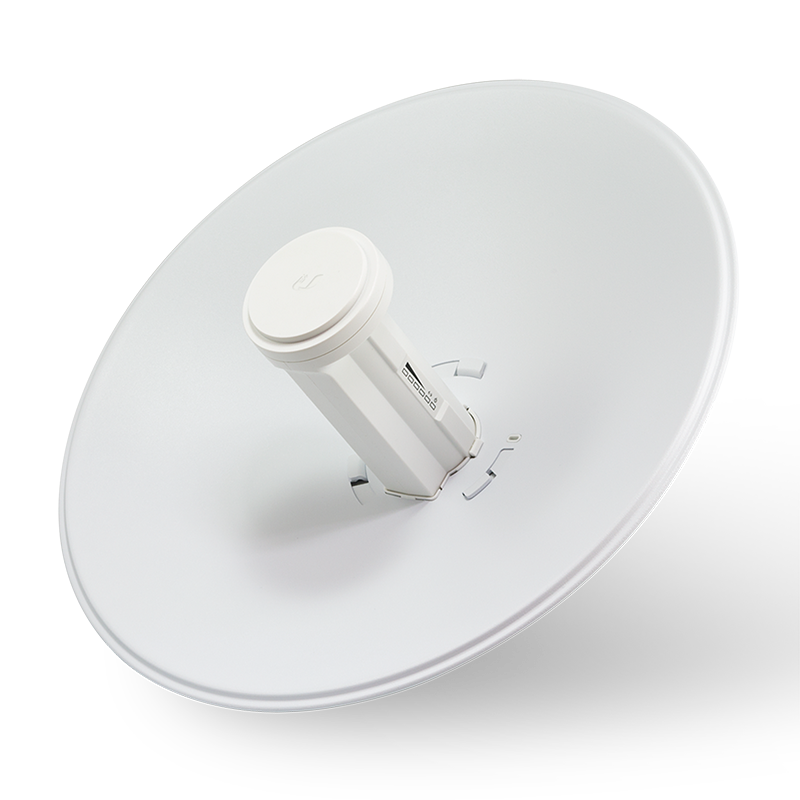

Overview: The Ubiquiti airMAX PowerBeam M5 300 ISO is a 5 GHz bridge with a 22 dBi gain and a 300 mm RF isolated reflector, delivering 150+ Mbps throughput.
Description: The Ubiquiti airMAX PowerBeam M5 300 ISO is a wireless bridge designed for outdoor use, featuring a UV-stabilized polycarbonate enclosure. It measures 364 x 364 x 276 mm and weighs 2.6 kg. The device includes a 300 mm RF isolated reflector and provides 22 dBi antenna gain. Its dual-linear polarization antenna supports channel bandwidths of 5/8/10/20/30/40 MHz. For network connectivity, it offers (1) 10/100 Ethernet port. Power is supplied via Passive PoE 2-pair (4,5+; 7,8 return) using the included 24V, 0.5A PoE adapter. The supported voltage range is 20-27V DC, and maximum power consumption is 6W. LED indicators on the device include Signal Strength, Power, LAN, WAN, and Ethernet. It operates within an ambient temperature range of -40 to 70°C and a humidity range of 5 to 95% non-condensing. The device is NDAA compliant and certified to FCC, IC, CE, and RoHS standards. It has undergone salt fog testing (IEC 68-2-11), temperature shock testing (IEC 68-2-14), UV testing (IEC 68-2-5), vibration testing (IEC 68-2-6), and wind-driven rain testing (ETS 300 019-1-4).
Key Highlights:
- Operates in the 5 GHz band
- 22 dBi antenna gain
- 300 mm RF isolated reflector
- 150+ Mbps throughput
- Dual-linear polarization
- 5/8/10/20/30/40 MHz channel bandwidths
- (1) 10/100 Ethernet port
- Passive PoE 2-pair (4,5+; 7,8 return) power method
- 24V, 0.5A PoE adapter (included)
- 20-27V DC supported voltage range
- 6W maximum power consumption
- Signal Strength, Power, LAN, WAN, Ethernet LED indicators
- -40 to 70°C operating temperature
- 5 to 95% non-condensing operating humidity
- NDAA compliant
- FCC, IC, CE, RoHS certified
- Resistant to salt fog, temperature shock, UV, vibration, and wind-driven rain tests
- Outdoor UV-stabilized polycarbonate enclosure
- Pole mount (included)
Technical Specifications:
| Parameter | Value |
|---|---|
| Dimensions | 364 x 364 x 276 mm (14.3 x 14.3 x 10.9") |
| Weight | 2.6 kg (5.6 lb) |
| Enclosure Materials | Outdoor UV-stabilized polycarbonate |
| Mounting | Pole Mount (Included) |
| Networking Interface | (1) 10/100 Ethernet port |
| Power Method | Passive PoE 2-pair (4,5+; 7,8 return) |
| Power Supply | 24V, 0.5A PoE adapter (Included) |
| Supported Voltage Range | 20-27V DC |
| Max. Power Consumption | 6W |
| LEDs | Signal Strength, Power, LAN, WAN, Ethernet |
| Ambient Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Ambient Operating Humidity | 5 to 95% non-condensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, RoHS |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40°C (104°F), Equivalent: ETS 300 019-1-4 |
| Vibration Test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Channel Bandwidth | 5/8/10/20/30/40 MHz |
| Antenna Gain | 22 dBi |
| Polarization | Dual-Linear |
