Ubiquiti airMAX PowerBeam 5AC 620 (PBE-5AC-620)
Ubiquiti airMAX PowerBeam 5AC 620 (PBE-5AC-620) Bridge
Overview:
The Ubiquiti airMAX PowerBeam 5AC 620 is a high-performance 5 GHz wireless bridge with a 29 dBi gain and a link range of 25+ km. It delivers a real TCP/IP throughput of 450+ Mbps and features a dedicated spectral analysis radio and a dedicated WiFi management radio, making it ideal for professional outdoor connectivity.
Description:
The Ubiquiti airMAX PowerBeam 5AC 620 is engineered for long-distance, high-capacity outdoor wireless links. Its 620 mm parabolic antenna with 29 dBi gain provides a link range exceeding 25 km. The real TCP/IP throughput of 450+ Mbps supports bandwidth-intensive applications. The device operates in the 5 GHz frequency band and is compatible with airMAX AC mode. The dedicated spectral analysis radio and WiFi management radio simplify network deployment and management. Powered by passive PoE, the product includes a 24V, 0.5A gigabit PoE adapter. The rugged outdoor enclosure and improved mounting bracket ensure reliable operation in harsh weather conditions. This product should be purchased in pairs to form links.
Key Highlights:
- 5 GHz frequency band
- 25+ km link range
- 450+ Mbps real TCP/IP throughput
- 29 dBi antenna gain
- Dedicated spectral analysis radio
- Dedicated WiFi management radio

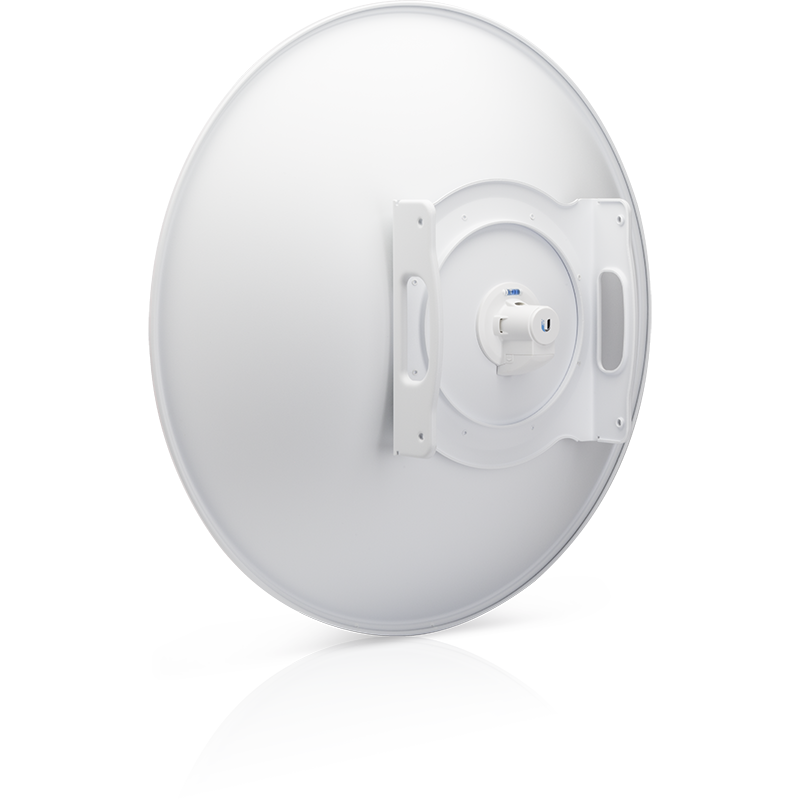

- Improved mounting
- Passive PoE power
- IP67-rated outdoor enclosure
- Should be purchased in pairs
Technical Specifications:
| Parameter | Value |
|---|---|

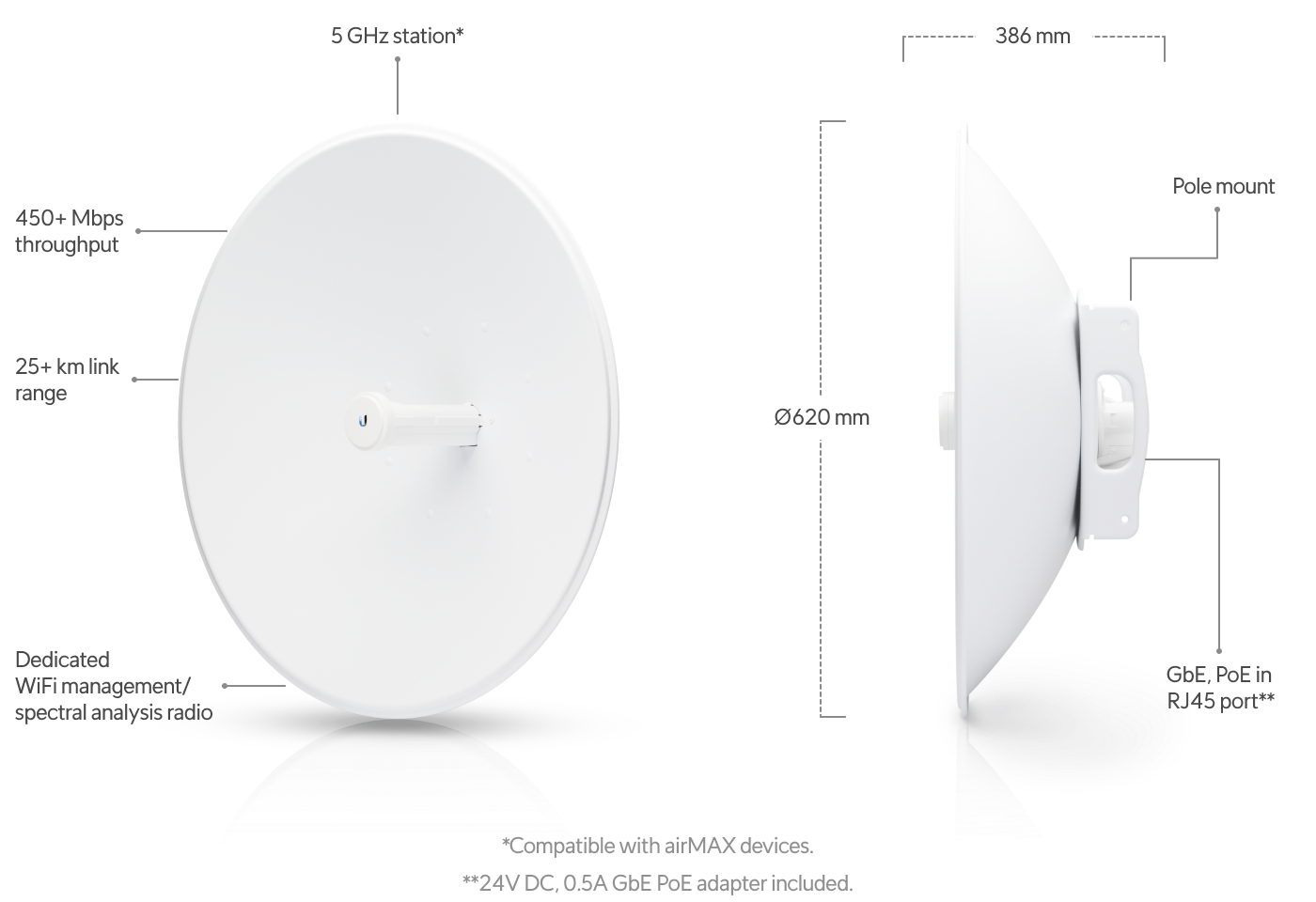

| Dimensions | 620 x 620 x 386 mm (24.4 x 24.4 x 15.2") |
| Weight | 6.4 kg (14.1 lb) |
| Enclosure Materials | Outdoor UV-stabilized polycarbonate |
| Mounting | Pole mount (included) |
| Wind Loading (Without radome) | 1510 N at 200 km/h (340 lbf at 125 mph) |
| Wind Loading (With radome) | 1830 N at 200 km/h (411 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (included) |
| Supported Voltage Range | 20-27V DC |
| Max. Power Consumption | 8.5W |
| ESD Protection | Air/contact: ± 24 kV |
| LEDs | Signal Strength, Power, LAN, WAN |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, RoHS |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Vibration Test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Operating Modes | Access Point, Station |
| airMAX AC Mode | ✓ |
| Discovery Protocol | ✓ |
| Frequency Band Offset | ✓ |
| Traffic Shaping with Burst Support | ✓ |
| 30/50/60 MHz Channels | ✓ |
| Bridging | ✓ |
| DHCP | ✓ |
| Ping Watchdog | ✓ |
| Routing | ✓ |
| SNMP | ✓ |
| SSH | ✓ |
| Webserver | ✓ |
| Distance Adjustment | Ackless Mode ✓ |
| Dynamic Ack | ✓ |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| Statistical Reporting | Data Rates, Ethernet Link Rate, Packet Errors, Up Time, Wireless Distance |
| Channel Bandwidth (PtP) | 10/20/30/40/50/60/80 MHz |
| Channel Bandwidth (PtMP) | 10/20/30/40 MHz |
| Antenna Gain | 29 dBi |
| Max. VSWR | 1.6:1 |
| Polarization | Dual-Linear |
| Supported Frequency Range (Worldwide) | 5150 - 5875 MHz |
| Supported Frequency Range (US/CA) | U-NII-1: 5150 – 5250 MHz; U-NII-2A: 5250 – 5350 MHz; U-NII-2C: 5470 – 5725 MHz; U-NII-3: 5725 – 5850 MHz |
