HG3-TP-S60 5 GHz Symmetrical Horn TP Antenna (13.2 dBi, 60°)

Overview:

The HG3-TP-S60 is a 60° beamwidth member of the RF elements Symmetrical Horn TP Antenna Gen2 family. It is a travelling wave horn antenna with a symmetrical beam pattern (equal azimuth and elevation beamwidths), offering 13.2 dBi gain across the 5180–6400 MHz frequency range. Its TwistPort™ female connector provides direct compatibility with native TwistPort™ radios and, via TwistPort™ adaptors, with major WISP radio platforms. It is engineered for noise rejection, sector isolation, and scalability in high-density WISP networks.

Description:

The HG3-TP-S60 is part of the Symmetrical Horn antenna family developed by RF elements since 2014, with over 180,000 units deployed worldwide. Symmetrical horn antennas are travelling wave antennas that deliver the same beamwidth in both azimuth and elevation planes, creating a clean, focused, and predictable conical coverage area. The HG3-TP-S60, with its 60° beamwidth, provides balanced sector coverage and is suitable for MicroPoPs, general point-to-multipoint access networks, and high-noise environments.

The antenna's most distinctive feature is its deeply suppressed side lobes. This ensures the antenna collects signals only from the intended coverage area, minimizing unwanted signal collection from the surrounding RF environment. This enables multiple sectors on the same tower to operate with high isolation and allows more efficient reuse of available spectrum. The symmetrical beam pattern eliminates signal nulls for nearby clients that are typical of traditional sector antennas and provides consistent coverage in hilly terrain, valleys, and vertically elevated areas.

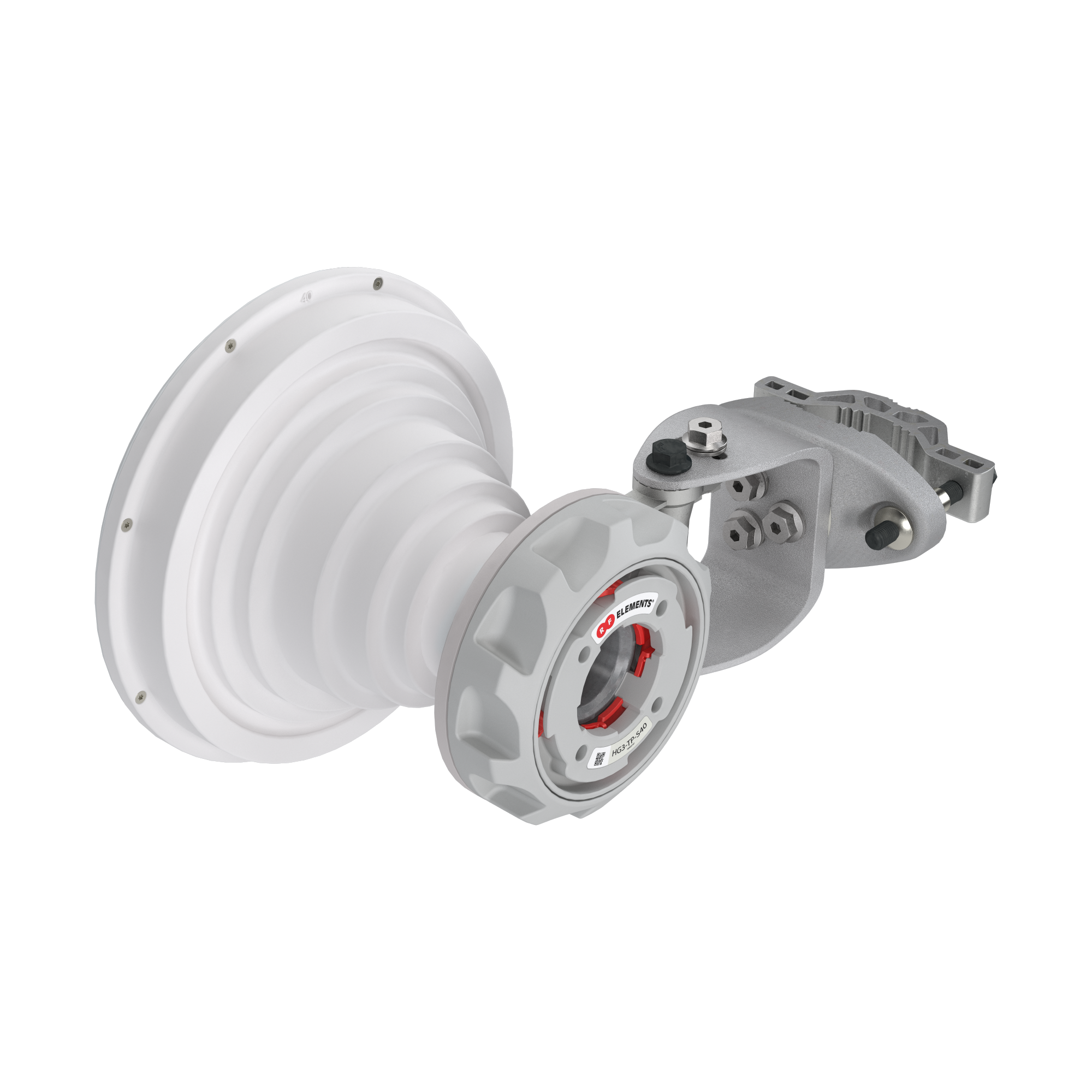

The HG3-TP-S60 is constructed from UV-resistant ABS plastic, polycarbonate, polypropylene, aluminium, and stainless steel. This material combination provides corrosion resistance and mechanical durability for long-term outdoor use. The TwistPort™ female connector offers direct connection to native TwistPort™ radios and is compatible with major WISP radio platforms through TwistPort™ adaptors. The antenna supports optional ±20° mechanical tilt for optimal coverage of both close-range and distant clients.

Key Highlights:

• 13.2 dBi gain across 5180–6400 MHz
• 60° symmetrical beam pattern (equal in azimuth and elevation)
• Deeply suppressed side lobes for superior noise rejection
• TwistPort™ female connector; direct compatibility with native TwistPort™ radios
• Broad WISP radio platform support via TwistPort™ adaptors
• UV-resistant ABS plastic, polycarbonate, polypropylene, aluminium, and stainless steel construction
• Optional ±20° mechanical tilt
• High sector isolation and spectrum reuse
• Ideal for MicroPoPs, dense tower sites, and point-to-multipoint access networks
