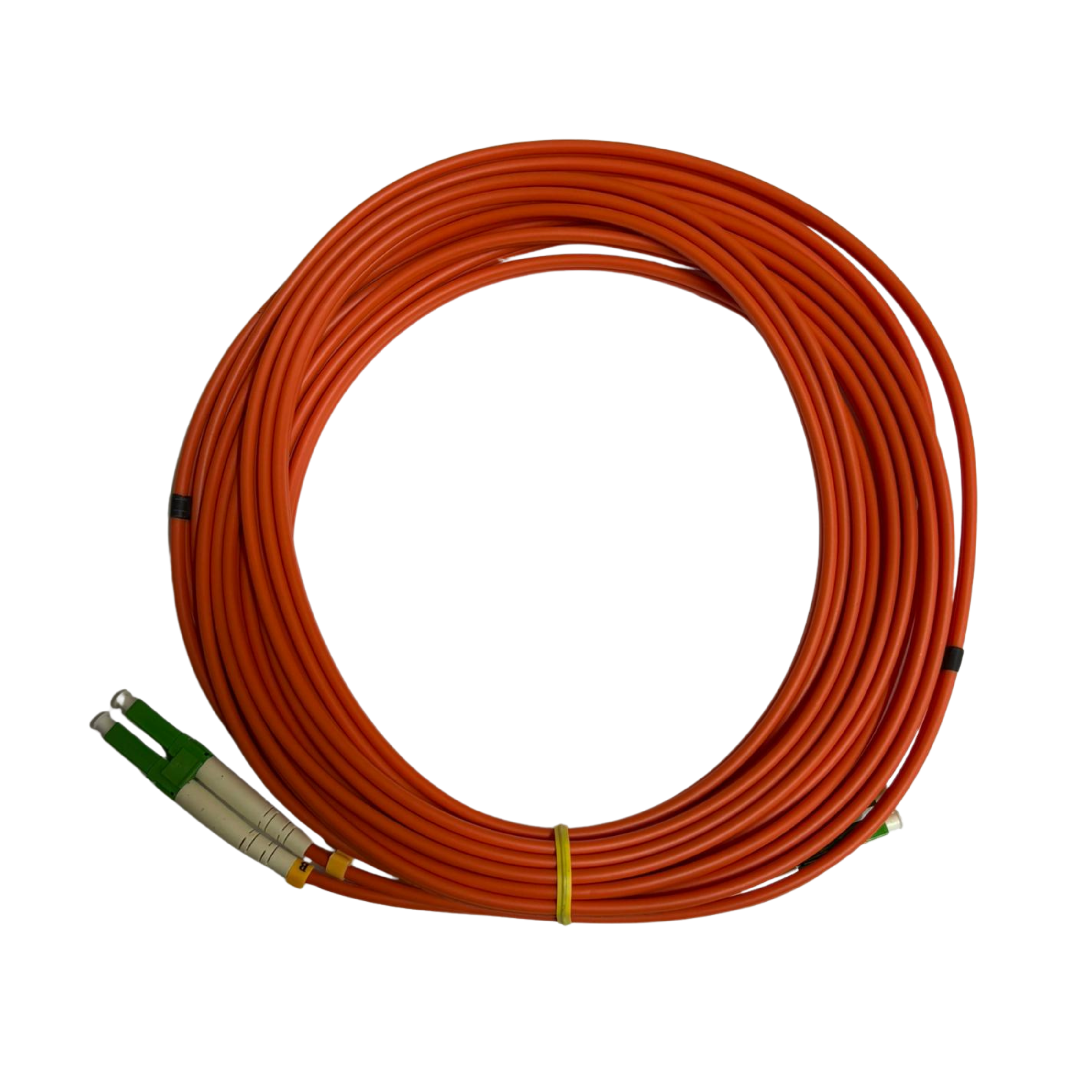

EXTRALINK LC/APC-LC/APC Multimode Duplex OM2 Fiber Patch Cord 3.0 mm 5 m

Overview:

The EXTRALINK LC/APC-LC/APC multimode duplex OM2 fiber patch cord is 5 meters long with a 3.0 mm cable diameter, providing reliable optical transmission in high-density data centers and enterprise network connections. The LC/APC connectors offer high-performance connectivity with low insertion loss and low back reflection.

Description:

The EXTRALINK LC/APC-LC/APC multimode duplex OM2 fiber patch cord is manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. The OM2 fiber type features a 50/125 µm core/cladding diameter and provides high bandwidth at 850 nm and 1300 nm wavelengths. The duplex construction enables simultaneous bidirectional data transmission. The LC/APC connectors provide low return loss through 8° angled physical contact, making them ideal for applications requiring high-precision optical connections. The 3.0 mm cable diameter allows easy installation and cable management in tight spaces. The 5-meter length offers flexibility for intra-rack and inter-rack connections. The product is suitable for use in data centers, telecommunications central offices, enterprise networks, and fiber optic test equipment.

Key Highlights:

• LC/APC-LC/APC connectors for low insertion loss and high return loss
• Multimode OM2 fiber (50/125 µm) with high bandwidth at 850 nm and 1300 nm
• Duplex construction for bidirectional communication
• 3.0 mm cable diameter for flexible and durable construction
• 5-meter length ideal for intra-rack and inter-rack connections
• Manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T standards

Technical Specifications:
