Cudy PE25 - 2.5G PCI Express Adapter

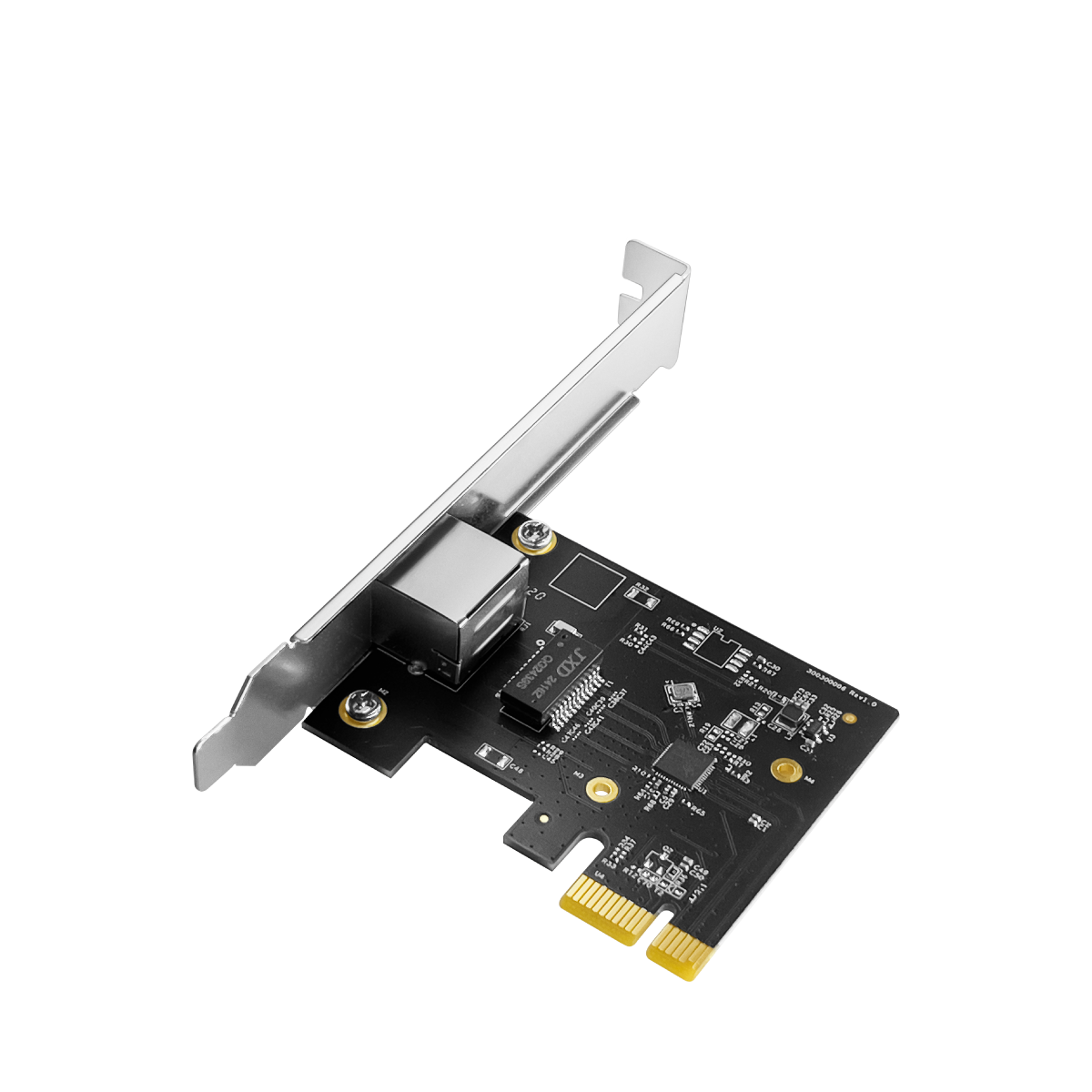

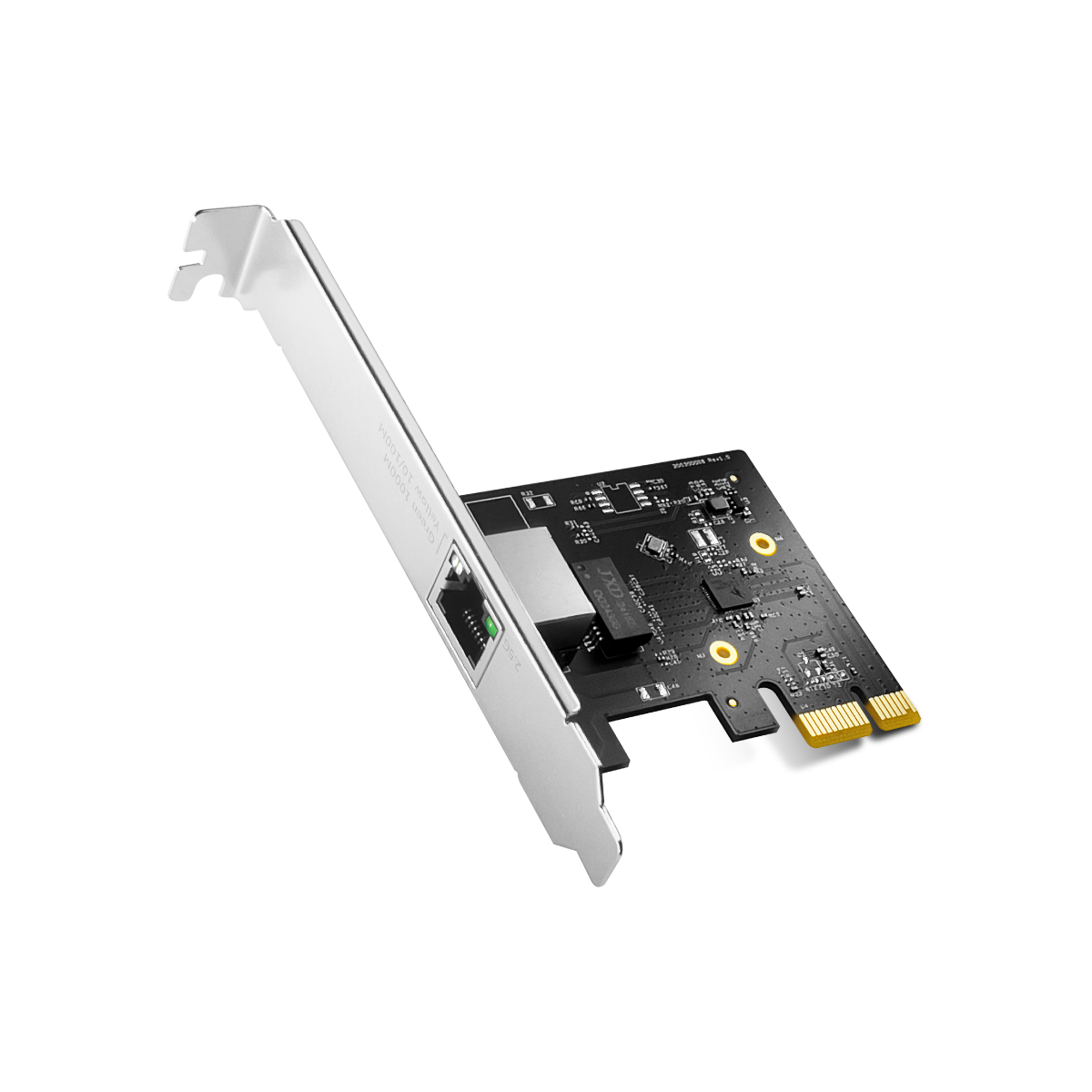

Cudy PE25 2.5G PCI Express Network Adapter
Overview: The Cudy PE25 is a PCI Express Ethernet adapter that provides your computer with 2.5 Gbps wired network connectivity. It features auto-negotiation across 10/100/1000/2500 Mbps, Wake on LAN, and flow control. With standard and low-profile brackets included, it fits desktop and server systems.
Description: The Cudy PE25 adds high-speed 2.5G network connectivity to your PC via a PCI Express x1 or higher slot. Its 2.5G RJ45 port auto-negotiates between 10 Mbps, 100 Mbps, 1 Gbps, and 2.5 Gbps speeds, ensuring seamless integration with your network. The EEE (Energy-Efficient Ethernet) feature automatically puts the adapter into a low-power idle state when data traffic is low. Flow control (802.3x) prevents packet loss and data drops at 2.5 Gbps speeds. Wake on LAN support allows you to remotely wake up your PC or server over the network. The product comes with both standard and low-profile brackets, suitable for standard tower PCs, low-profile servers, and rack-mounted servers. It is compatible with Windows 7/8/8.1/10/11, Windows Server 2012~2022, and Linux operating systems.
Key Highlights:
- High-speed network connectivity up to 2.5 Gbps
- Auto-negotiation across 10/100/1000/2500 Mbps
- Requires PCI Express 2.1 x1 or higher slot
- EEE (Energy-Efficient Ethernet) for automatic power savings
- 802.3x flow control for reliable data transmission
- Wake on LAN support
- Standard and low-profile bracket compatibility
- Windows and Linux OS support
Technical Specifications:
| Parameter | Value |
|---|---|
| Model | PE25 2.0 |
| Interface | 1x 2.5G RJ45 port |
| LED | Speed/Link/Act indicator |
| Network Protocols | 802.3, 802.3x Flow Control, 802.3az Power Saving, 802.3i 10BASE-T, 802.3u 100BASE-T, 802.3ab 1000BASE-T, 802.3bz 2.5GBASE-T |
| Data Rate | Auto-negotiation between 10 Mbps, 100 Mbps, 1 Gbps, and 2.5 Gbps |
| Hardware Requirement | PCI-E 2.1 x1 or higher slot |
| Compatible OS | Windows 7/8/8.1/10/11, Windows Server 2012~2022, Linux |
| Operating Temperature | 0°C ~ 70°C (32°F ~ 158°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 95% non-condensing |
| Certifications | FCC, CE |
| Dimensions (without bracket) | 64×56×15 mm (2.52×2.2×0.59 inches) |
| Weight | 37.2 g (1.31 oz) |

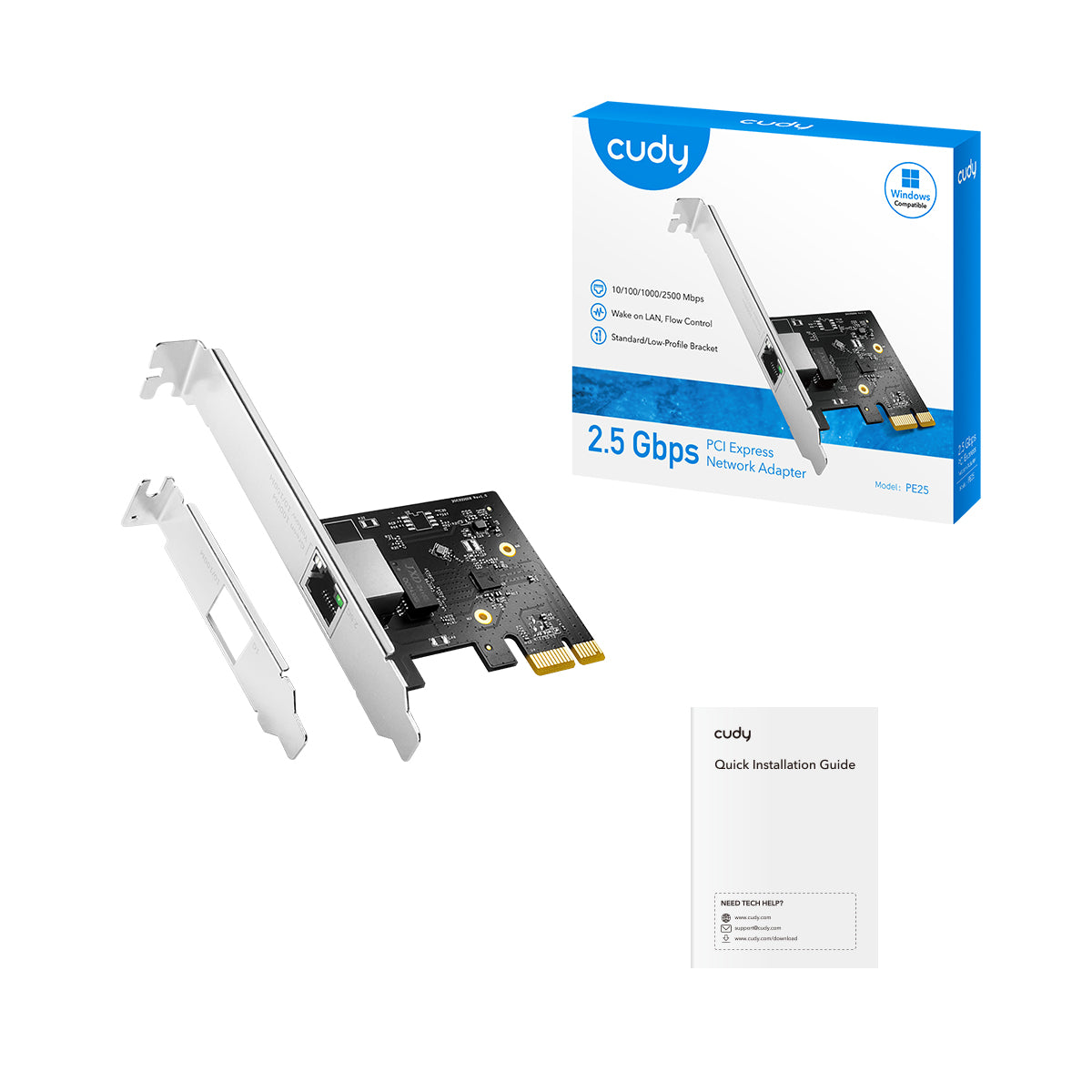

| Package Content | PE25 adapter, low-profile bracket, installation guide |
| Retail Package Dimensions | 157×128×42 mm (6.18×5.04×1.65 inches) |
| Retail Package Weight | 108.0 g (3.81 oz) |
| Units per Carton | 80 |
| Carton Net Weight | 8.64 kg (19.05 lbs) |
| Carton Gross Weight | 9.36 kg (20.64 lbs) |
| Carton Dimensions | 51.2×32×29.7 cm (20.16×12.6×11.69 inches) |
