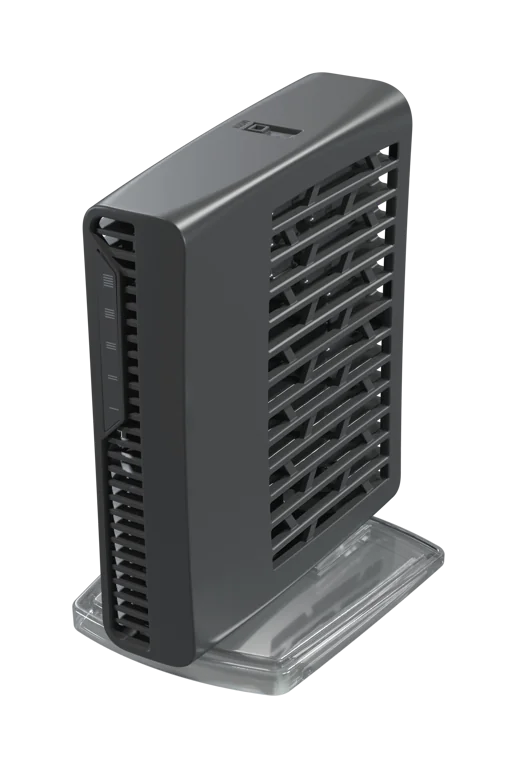

MikroTik hAP ax² Wi-Fi 6 Gigabit Router (C52iG-5HaxD2HaxD-TC)
MikroTik hAP ax² (C52iG-5HaxD2HaxD-TC)
Overview:
The MikroTik hAP ax² is a compact dual-band access point featuring Wi-Fi 6 (802.11ax) technology, an ARM64 quad-core CPU, 1 GB RAM, and PoE-in/PoE-out support. It delivers high speed and efficiency with Generation 6 wireless.
Description:
The MikroTik hAP ax² is the Generation 6 version of the legendary hAP ac². Powered by a quad-core ARM64 CPU running at 864 MHz and 1 GB RAM, it provides robust performance for heavy operations such as complex firewall rules, IPsec hardware encryption, and advanced RouterOS features. With its dual-band, dual-chain 4-4.5 dBi antenna configuration and 802.11ax Wave2 support, it achieves data rates up to 1200 Mbit/s on 5 GHz and 574 Mbit/s on 2.4 GHz. It supports WPA3 encryption for secure connectivity. The device can be mounted vertically, horizontally, or on a wall. It includes 5x 10/100/1000 Ethernet ports, with 1 port supporting PoE-out. Passive cooling ensures silent operation. RouterOS v7 is preinstalled and licensed.
Key Highlights:
- Wi-Fi 6 (802.11ax) dual-band wireless
- ARM64 quad-core IPQ-6010 CPU (864 MHz)
- 1 GB RAM, 128 MB NAND storage
- 5x 1G Ethernet ports (1 with PoE-out)
- PoE-in and PoE-out support
- WPA3 encryption support
- Vertical, horizontal, or wall mounting
- Passive cooling
- RouterOS v7 operating system
Technical Specifications:
| Parameter | Value |
|---|---|
| Product code | C52iG-5HaxD2HaxD-TC |
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | 864 MHz |
| CPU threads count | 4 |
| Switch chip model | IPQ-6010 |
| RouterOS license | 4 |
| Operating system | RouterOS v7 |
| RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100,000 hours at 25°C |
| Tested ambient temperature | -40°C to 50°C |
| Wireless 2.4 GHz max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| 2.4 GHz antenna gain | 4 dBi |
| 2.4 GHz chip model | QCN-5022 |
| 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| 5 GHz antenna gain | 4.5 dBi |
| 5 GHz chip model | QCN-5052 |
| 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX1800 |
| 10/100/1000 Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input voltage | 12-28 V |
| Max power consumption | 27 W |
| Max power consumption without attachments | 12 W |
| PoE-in | Passive PoE |
| Cooling type | Passive |
| PoE-in input voltage | 18-28 V |
| PoE-out ports | Ether 1 |
| PoE-out | Passive PoE |
| Low voltage PoE-Out current limit | 600 mA |
| Max total out (A) | 0.6 A |
| Total output current | 0.6 A |
| Total output power | 16.8 W |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP rating | IP 20 |
| CPU temperature monitor | Yes |
| Mode button | Yes |
| Included parts | hAP case base, K-47 wall mount set, 24V 1.2A power supply (straight plug) |
